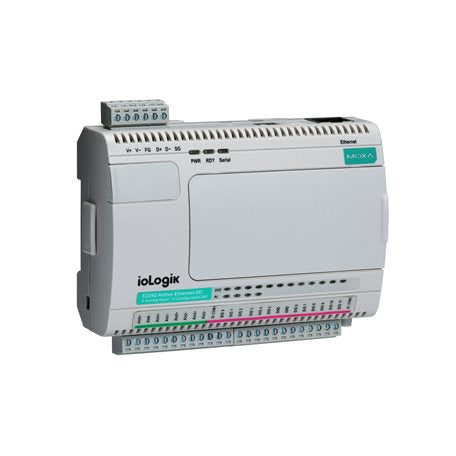

MOXA IOLOGIK E2212 SMART ETHERNET REMOTE I/O

MOXA IOLOGIK E2212 SMART ETHERNET REMOTE I/O

$656.00 CAD
$656.00 CAD
Sale Sold out

Features and Benefits

  • 8 x DI, 8 x DO, 4 x Configurable DIO
  • 1 x RS-485 serial ports
  • 12 to 36 VDC power input
  • -10 to 60°C operating temperature
View full details

Description

Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will, when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.

Data sheet

Specification

Digital Input and Output: Yes, 8 digital inputs and 8 digital outputs
Adjustable digital input and output: Yes, 4 adjustable digital inputs and outputs
Analog Input and Output: No
Relay Output: No
Thermal sensor input (RTD): No
Thermocouple input: No
LAN: Yes, 1 RJ-45 10/100Mbps port
Serial port: Yes, 1 RS-485 terminal connection
Protocols: Modbus/TCP (Slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
Compatible Software: MX-AOPC UA Server, MXIO
Standards and Certifications: Safety: UL 508; EMC: EN 61000-6-2/6-4, EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, 1.4 GHz to 2 GHz: 3 V/m, 2 GHz to 2.7 GHz: 1 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8; Green Product: RoHS, CRoHS, WEEE
Operating Temperature: -10 to 60 ° C
Storage Temperature: -40 to 85 ° C
Operation Humidity: 5% to %95 Non-condensing
