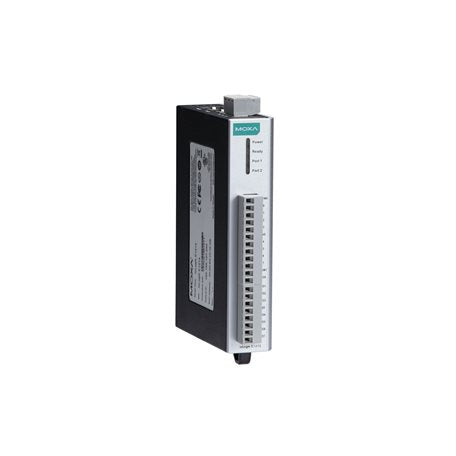

MOXA IOLOGIK E1262 ETHERNET REMOTE I/O

MOXA IOLOGIK E1262 ETHERNET REMOTE I/O

$604.00 CAD
$604.00 CAD
Sale Sold out

Features and Benefits

  • 8 x TC
  • 2-port Ethernet switch for daisy-chain topologies
  • 12 to 36 VDC power input
  • Plastic body
  • -10 to 60°C operating temperature
View full details

Description

The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.

Data sheet

Specification

Digital Input and Output: No
Adjustable digital input and output: No
Analog Input and Output: No
Relay Output: No
Thermal sensor input (RTD): No
Thermocouple input: Yes, 8 channels
LAN: Yes, 2 RJ-45 10/100Mbps switch ports
Serial port: No
Protocols: Modbus/TCP (Slave), EtherNet/IP, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP
Compatible Software: Active OPC Server, MX-AOPC UA Suite, ioSearch, MXIO, Peer-to-peer
Standards and Certifications: Safety: UL 508; EMC: EN 55022, EN 55024, EN 61000-3-2/3-3, EN 61000-6-2/6-4; EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8; Hazardous Location: Class 1 Division 2, ATEX Zone 2; Green Product: RoHS, CRoHS, WEEE
Operating Temperature: -10 to 60 ° C
Storage Temperature: -40 to 85 ° C
Operation Humidity: 5% to %95 Non-condensing
