Moxa

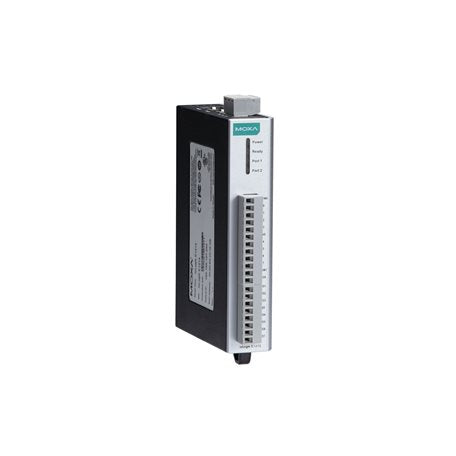

MOXA ioLogik E1212 Ethernet Remote I/O

MOXA ioLogik E1212 Ethernet Remote I/O

$352.00 CAD
$352.00 CAD
Sale Out of Stock
We have 22 in stock

Features and Benefits

  • 8 x DI and 8 x Configurable DIO
  • 2-port Ethernet switch for daisy-chain topologies
  • 12 to 36 VDC power input
  • Plastic body
  • -10 to 60°C operating temperature
View full details

Description

The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.

Data sheet

Specification

Digital Input and Output: Yes, 8 digital inputs
Adjustable digital input and output: Yes, 8 adjustable digital inputs and outputs
Analog Input and Output: No
Relay Output: No
Thermal sensor input (RTD): No
Thermocouple input: No
LAN: Yes, 2 RJ-45 10/100Mbps switch ports
Serial port: No
Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP
Compatible Software: Active OPC Server, MX-AOPC UA Suite, DA-Center, ioSearch, MXIO, Peer-to-peer
Standards and Certifications: Safety: UL 508; EMI: EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15, Subpart B, Class A; EMS: EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Hazardous Location: UL/cUL Class I Division 2, ATEX Zone 2
Operating Temperature: -10 to 60 ° C
Storage Temperature: -40 to 85 ° C
Operation Humidity: 5% to %95 Non-condensing
