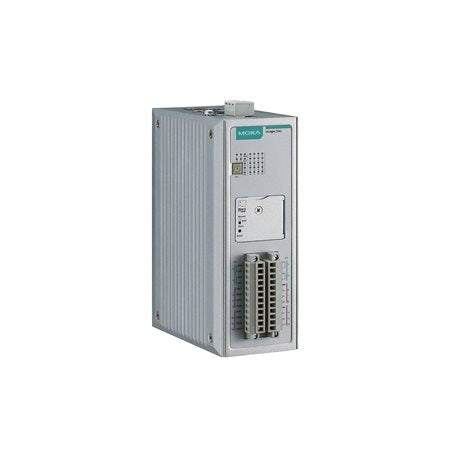

MOXA IOLOGIK 2542-T SMART ETHERNET REMOTE I/O

MOXA IOLOGIK 2542-T SMART ETHERNET REMOTE I/O

Regular price $1,115.00 CAD
Regular price Sale price $1,115.00 CAD
Sale Sold out

Features and Benefits

  • 4 x AI and 12 x Configurable DIO
  • 2 x RS-232/422/485 serial ports
  • 4-port unmanaged switch built in for linking to Ethernet devices
  • 12 to 48 VDC power input
  • Metal body
  • -40 to 75°C operating temperature
View full details

Description

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.

One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.

Specification

Digital Input and Output: No
Adjustable digital input and output: Yes, 12 adjustable digital inputs and outputs
Analog Input and Output: Yes, 4 analog inputs
Relay Output: No
Thermal sensor input (RTD): No
Thermocouple input: No
LAN: Yes, 4 RJ-45 10/100Mbps Ports
Serial port: Yes, 2 RS-232/422/485 Ports
Protocols: Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
Compatible Software: MX-AOPC UA Server, MXIO
Standards and Certifications: Safety: UL 508; EMC: EN 55022/24, EN 61000-6-2/6-4; EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8; Hazardous Location: Class 1 Division 2; ATEX Zone 2; Green Product: RoHS, CRoHS, WEEE
Operating Temperature: -40 to 75 ° C
Storage Temperature: -40 to 85 ° C
Operation Humidity: 5% to %95 Non-condensing
