Moxa

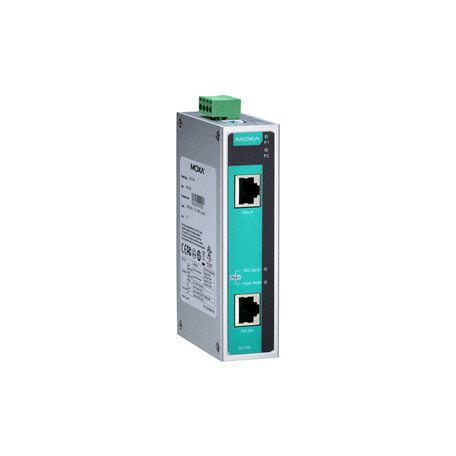

MOXA INJ-24A POE+ INJECTOR

MOXA INJ-24A POE+ INJECTOR

Regular price $524.00 CAD
Regular price Sale price $524.00 CAD
Sale Sold out
We have 8 in stock

Features and Benefits

  • 1 x 10/100/1000 T(x) PoE port and 1 x 1 x 10/100/1000 T(x) port
  • PoE Pinout : V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)
  • 24/48 VDC input power
  • Metal body
  • 0 to 60°C operating temperature
View full details

Description

The INJ-24A is a Gigabit high-power PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for power-hungry devices, the INJ-24A injector provides up to 60 watts, which is twice as much power as conventional PoE+ injectors. The injector also includes features such as a DIP switch configurator and LED indicator for PoE management, and it can also support 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24A ideally suited to operating in harsh industrial environments.

Specification

10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: Yes: 1 Input Port
Input PoE Port: No
Output PoE Port: Yes: 1 Port
Installation: Din-rail
MTBF: 2,525,278 hours
Protocols and work standards: IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X)
Output power: 24V DC, 48V DC
Power Consumption (Output Adapter): 22V DC to 57V DC
DIP Switch: No
PoE: Yes
Standards and Certifications: Safety: UL 508, EN 60950-1 (LVD); EMC: EN 55022/24; EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6
Dimensions: 24.9x100x86.2mm
Storage Temperature: -40 to 85 ° C
Storage Humidity: 5% to %95 RH non-condensing
