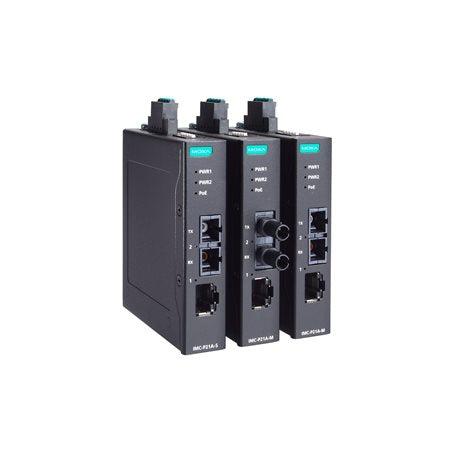

MOXA IMC-P21A-G2-M-SC/KC ETHERNET TO FIBER CONVERTER

$658.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
Up to 36 W output on the PoE+ port
Supports store-and-forward mode and pass-through mode
-10 to 60°C operating temperature range
Redundant dual DC power inputs

View full details

Description

Introduction
IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters are designed to provide reliable and stable 10/100BaseT(X)-to-100Base-FX media
conversion. These converters are classified as power source equipment (PSE) and are used to directly power up powered devices (PDs),
eliminating the need for additional wiring.
The IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters provide up to 30 watts of power for PoE+ port in standard mode and allow
highpower output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters,
highperformance wireless access points, and IP phones. The IMC-P21A-G2 media converters are highly versatile and with SC or ST fiber ports, can
transmit data with high EMI immunity for up to 40 km from the device to the control center.
The PoE+ Fast Ethernet-to-fiber media converters support a variety of useful functions, as well as PoE diagnostics, Link Fault Pass-through,
storeand- forward mode, and pass-through mode. The IMC-P21A-G2 converters support IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDI-X
autosensing, providing a complete solution for your industrial Ethernet networks.

Data sheet

Specification

Ethernet Interface:
100BaseFX Ports (multi-mode SC connector): 1
PoE Ports (10/100BaseT(X), RJ45 connector): 1
Optical Fiber: Read more
Magnetic Isolation Protection: 1.5 kV (built-in)
Power Parameters:
Input Voltage: 44 to 57 VDC
PoE+ output: > 52 VDC recommended
PoE output: > 44 VDC recommended
Power Consumption:
Max: 828 mA
Overload Current Protection: Supported
Physical Characteristics:
Housing: Metal
IP Rating: IP40 (with I/O modules attached)
Dimensions: 90 x 73 x 20.3 mm (3.54 x 2.87 x 0.79 in)
Weight: Product Only: 212 g (0.47 lb)
Installation: DIN-rail mounting
Environmental Limits:
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD (Contact: 6 kV; Air: 8 kV), IEC 61000-4-3 RS (80 MHz to 1 GHz: 10 V/m), IEC 61000-4-4 EFT (Power: 2 kV; Signal: 1 kV), IEC 61000-4-5 Surge (Power: 2 kV; Signal: 1 kV), IEC 61000-4-6 CS (150 kHz to 80 MHz; Signal: 10 V), IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6, IEC 60068-2-64
Freefall: ISTA 1A
MTBF Time: 6,708,861 hrs
Standards: Telcordia SR332
Warranty: 5 years
