Moxa

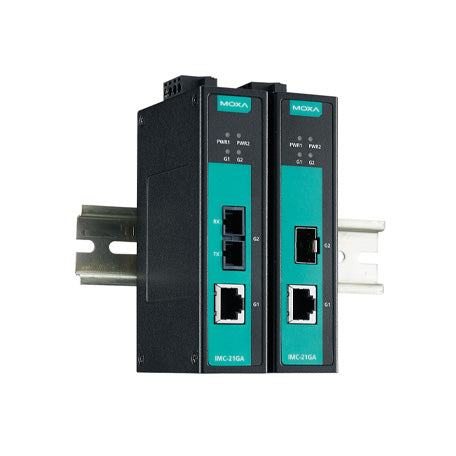

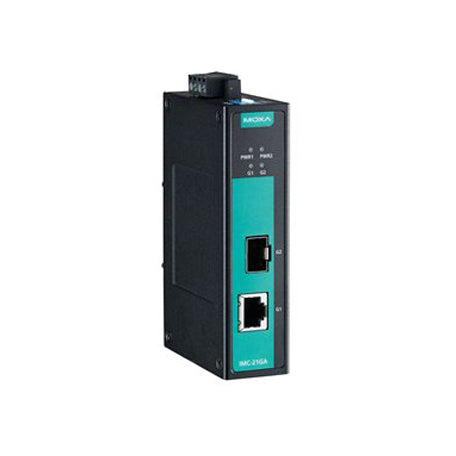

MOXA IMC-21GA ETHERNET TO FIBER CONVERTER

MOXA IMC-21GA ETHERNET TO FIBER CONVERTER

Regular price $311.00 CAD
Regular price Sale price $311.00 CAD
Sale Sold out
We have 2 in stock

Features and Benefits

  • 1 x 10/100/1000Mbps T(x) port and 1 x 100/1000Mbps F(x) SFP port
  • 12 to 48 VDC input power
  • Metal body
  • -10 to 60°C operating temperature
View full details

Description

The IMC-21GA industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-100/1000Base-SX/LX or selected 100/1000Base SFP module media conversion. The IMC-21GA supports IEEE 802.3az (Energy-Efficient Ethernet) and 10K jumbo frames, allowing it to save power and enhance transmission performance. All IMC-21GA models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

You can also find the IMC-21GA-LX-SC-T, IMC-21GA-T and IMC-21GA-SX-SC models in the IMC-21GA Series.

Specification

10/100/1000Mb RJ45 (Gigabit) Ports: 1 Port
1000Mb SFP Fiber optic (Gigabit) Ports: 1 Port
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3az
MTBF: 2,762,058 hour
Power consumed: 12V DC, 0.28A to 48V DC
Type of power input: Terminal
Housing: Metal
Dimensions: 30x125x79mm
Operating Temperature: -10 to 60 ° C
Storage Temperature: -40 to 75 ° C
Operation Humidity: 5% to %95 non-condensing
Installation: Din-rail and wall mount
