Moxa

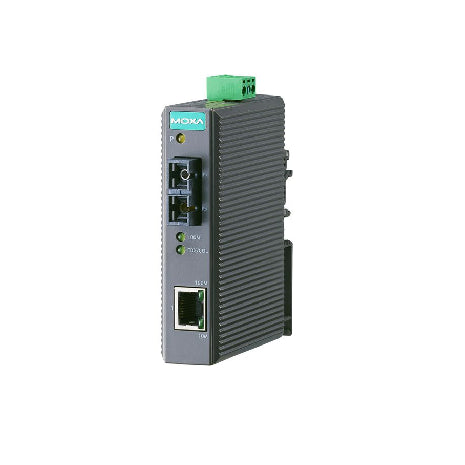

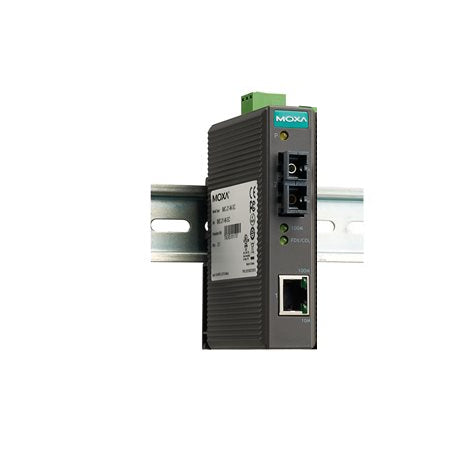

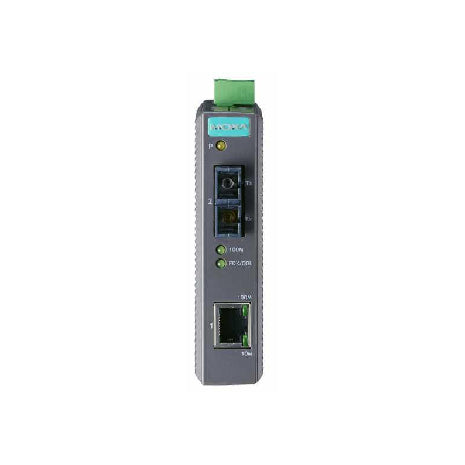

MOXA IMC-21-M-SC ETHERNET TO FIBER CONVERTER

MOXA IMC-21-M-SC ETHERNET TO FIBER CONVERTER

$285.00 CAD
$285.00 CAD
Sale Sold out
We have 4 in stock

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 1 x 100Mbps F(x) multi-mode port with SC connector
  • 12 to 48 VDC input power
  • Plastic body
  • -10 to 60°C operating temperature
View full details

Description

The IMC-21 industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters are a cost-effective solution that run on either a 12 or 48 VDC power input and can operate reliably in temperatures ranging from -10 to 60°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 converters are easy to mount on a DIN rail or in distribution boxes.

Data sheet

Specification

10/100 RJ45 Ports: 1 Port
100Mb SC Fiber optic Ports: 1 Port
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3az
MTBF: 353,000 hour
Power consumed: 12V DC, 0.28A to 48V DC
Type of power input: Terminal
Housing: Metal
Dimensions: 30x125x79mm
Operating Temperature: -10 to 60 ° C
Storage Temperature: -40 to 75 ° C
Operation Humidity: 5% to %95 non-condensing
Installation: Din-rail and wall mount
