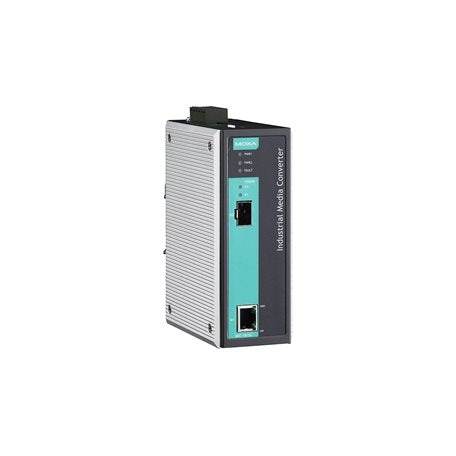

MOXA IMC-101G-T-IEX Ethernet to Fiber Converter

MOXA IMC-101G-T-IEX Ethernet to Fiber Converter

$1,385.00 CAD
$1,385.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 1 x 1000 Mbps fiber (SFP connector)
  • 12 to 45 VDC input power range
  • Metal body design
  • DIN-rail mounting
  • -40 to 75°C operating temperature
View full details

Description

The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

Data sheet

Specification

Eth to Fiber: Interface
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: Yes, 1 port
100Mb Fiber Optic Multi Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb Fiber Optic Single Mode (Gigabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: Yes, 1 port
M12 Port: No
Alert Output: Yes

Eth to Fiber: Standards and Protocols
Protocols and Work Standards: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3

Eth to Fiber: General
Maximum Cable Length for Data Transfer: 120 km with single mode fiber optic cable
MTBF: 500,540 hours

Eth to Fiber: Power Requirements
Power Consumed: 200 mA @ 12 to 45 VDC
Type of Power Input: Terminal block
POE Support: No
Protection Against Reverse Voltage: -
Protection Against Overflow: -

Eth to Fiber: LED Indicators
LNK/ACT: No
Power: Yes

Eth to Fiber: Buttons
DIP Switch: -

Eth to Fiber: Physical Characteristics
Standards and Certifications: Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx, EMC, EMI, EMS, Environmental Testing, Safety, Vibration
Housing: Metal
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 630 g (1.39 lb)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
Installation: DIN-rail mounting
