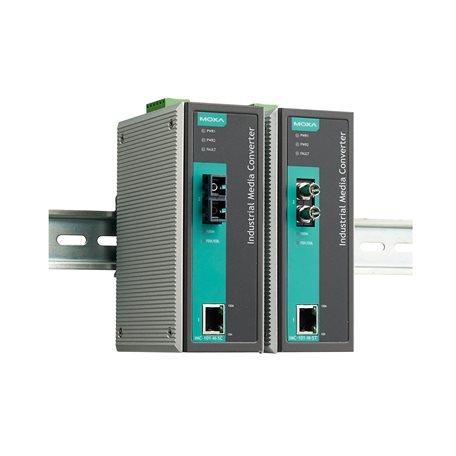

MOXA IMC-101-S-SC-T-IEX Ethernet to Fiber Converter

MOXA IMC-101-S-SC-T-IEX Ethernet to Fiber Converter

$854.00 CAD
$854.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 1 x 100BaseFX Port (single-mode ST connector)
  • 40 KM Typical data transmission distance on fiber
  • 12 to 45 VDC input power range
  • IP30-rated Metal body design
  • DIN-rail mounting
  • -40 to 75°C operating temperature
View full details

Description

The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx), come with the DNV certification, and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.

Data sheet

Specification

Eth to Fiber: Interface
10/100Mb RJ45 (Megabit) Ports: Yes, 1 port
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: Yes, 1 SC port
1000Mb Fiber Optic Single Mode (Gigabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
M12 Port: No
Alert Output: Yes

Eth to Fiber: Standards and Protocols
Protocols and Work Standards: IEEE 802.3, IEEE 802.3u

Eth to Fiber: General
Maximum Cable Length for Data Transfer: 40 km with single mode fiber optic cable
MTBF: 401,000 hours

Eth to Fiber: Power Requirements
Power Consumed: 12V DC to 45V DC, 0.3A
Type of Power Input: Power input jack
POE Support: No
Protection Against Reverse Voltage: Yes
Protection Against Overflow: Yes

Eth to Fiber: LED Indicators
LNK/ACT: Yes

Eth to Fiber: Buttons
DIP Switch: 100BaseFX Full/Half duplex selection, port break alarm mask

Eth to Fiber: Physical Characteristics
Standards and Certifications: Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx, EMC, EMI, EMS, Environmental Testing, Safety, Vibration, DNV
Housing: Metal
Dimensions: 53.6 x 135 x 105 mm
Weight: 0.63 kg
Operating Temperature: -40 to 75°C
Storage Temperature: -40 to 85°C
Operation Humidity: 5% to 95% (non-condensing)
Installation: DIN-rail and wall mount
