Moxa

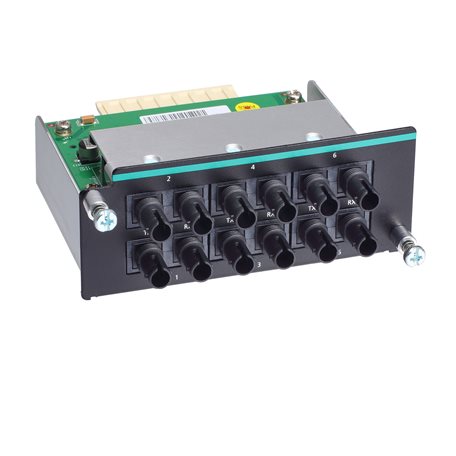

MOXA IM-6700A-6MST Fast Ethernet Module

$924.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

6 x 100BaseFX Ports Single-Mode, ST Connectors)
5 KM typical data transmission distance for fiber ports
Compatible with IKS-6726A-2GTXSFP/6728A-4GTXSFP/6728A-8PoE-4GTXSFP modular managed switches

View full details

Description

IM-6700A fast Ethernet modules are designed for the modular, managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A switch can accommodate up to 8 ports, with each port supporting the TX, MSC, SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is designed to give IKS-6728A-8PoE Series switches PoE capability. The modular design of the IKS-6700A Series ensures that the switches meet multiple application requirements.

Data sheet

Specification

Modules: Interface
Ports: 6 x 100BaseFX ports
Connector: Multi-mode ST
Typical Distance: 5 km (max.)

Modules: Power Requirements
Power Information: Power Consumption: 7.57 W (max.)

Modules: Physical Characteristics
Ambient Relative Humidity: -
Standards and Certifications: Telcordia (Bellcore), GB
Size: -
Net Weight: 390 g (0.86 lb)
Temperature: -
MTBF: 3,153,055 hrs
