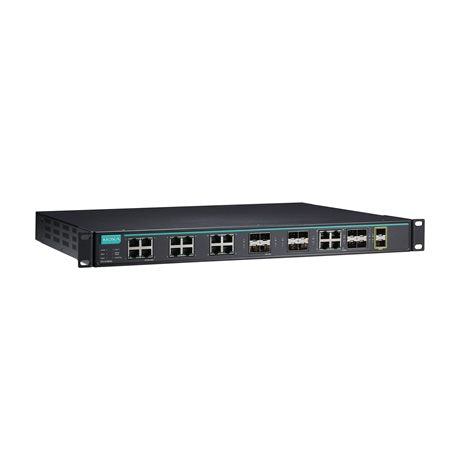

MOXA ICS-G7826A-20GSFP-2XG-HV-HV-T Rackmount Ethernet Switch

MOXA ICS-G7826A-20GSFP-2XG-HV-HV-T Rackmount Ethernet Switch

$21,726.00 CAD
$21,726.00 CAD
Sale Sold out

Features and Benefits

  • Layer 3 switching functionality
  • 12 x 10/100/1000Mbps T(x) ports, 8 Gigabit SFP Slots
  • 4 Gigabit Combo ports, 2 x 10Gb SFP+ slots
  • Rackmount installation design
  • 100 to 240 VAC dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature
View full details

Description

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7826A Series is equipped with 24 Gigabit Ethernet ports plus up to 2 10 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The ICS-G7826A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Data sheet

Specification

Ethernet Interface:
10/100/1000BaseT(X) Ports (RJ45):
ICS-G7826A-2XG-HV-HV-T: 20 ports
ICS-G7826A-8GSFP-2XG-HV-HV-T: 12 ports

100/1000BaseSFP Ports:
ICS-G7826A-8GSFP-2XG-HV-HV-T: 8 ports
ICS-G7826A-20GSFP-2XG-HV-HV-T: 20 ports

10GbE SFP+ Slots: 2
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 4

Standards and Protocols:
IEEE 802.1X for authentication, Spanning Tree Protocol (STP), VLAN Tagging, Rapid STP, Port Trunking (LACP), 10 Gigabit Ethernet (IEEE 802.3ae), and more.
Industrial Protocols: EtherNet/IP, Modbus TCP, PROFINET for communication with industrial systems.

Software Features:
Management: ARP, DHCP, SNMP, Syslog, Telnet, TFTP, etc.
Security: Access Control List (ACL), HTTPS/SSL, SSH, RADIUS, and more.
Time Management: NTP, SNTP, and accurate time synchronization support.

Power and Environmental:
Power Supply: 100-240 VAC with redundant dual inputs, Max. Power Consumption of 66.41 W (at 110 VAC).
Operating Temperature: -40°C to 75°C, suitable for harsh industrial environments.
MTBF (Mean Time Between Failures): Ranges from 562,844 to 604,723 hours, depending on the model.

Physical:
IP Rating: IP30 (for protection against dust, no liquid ingress).
Rack Mountable with dimensions of 440 x 44 x 386.9 mm.
Weight: 6470 g (14.26 lb).

Certifications:
Safety: UL, IEC 62368-1, and other safety standards.
EMC: EN 55032/35, EN 61000-6-2/-6-4.
Industrial Standards: EN 50121-4 (Railway), NEMA TS2 (Traffic Control), IEC 60068 (Shock and Vibration).

Warranty:
5 years warranty period.
