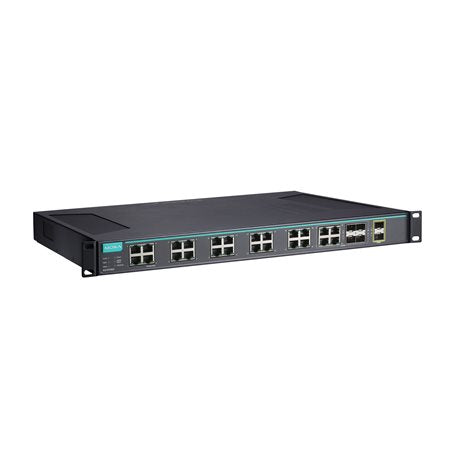

MOXA ICS-G7526A-2XG-HV-HV-T RACKMOUNT ETHERNET SWITCH

MOXA ICS-G7526A-2XG-HV-HV-T RACKMOUNT ETHERNET SWITCH

$18,911.00 CAD
$18,911.00 CAD
Sale Sold out

Features and Benefits

  • 20 x 10/100/1000Mbps T(x) ports, 4 Gigabit Combo ports, and 2 x 10Gb SFP+ slots
  • Rackmount
  • Metal body
  • -40 to 75°C operating temperature
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View full details

Description

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7526A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports, making them ideal for large-scale industrial networks.

The ICS-G7526A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

You can also find the ICS-G7526A-8GSFP-4GTXSFP-2XG-HV-HV model in the ICS-G7526A Series.

Data sheet

Specification

Number of ports: 26 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: Yes : 20 Ports
100Mb Fiber optic multi mode (Megabit) Ports: No
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
Other ports: Yes : 4 Gigabit Combo ports, and 2 x 10Gb SFP+ slots
LED Per Port: Yes
Power Consumption (Output Adapter): 85 to 264 VAC
Power Input Plugin (Redundant): 110 to 220 VAC
Fan / Fanless: Fanless
MTBF: 314,093 hrs
Network working layers: Layer 2
Switch type: Managed
Port Aggregation: Yes
Installation: Rackmount
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Safety, EMC, EMI, EMS, EN 50121-4, Freefall, Shock, Vibration
Protocols and work standards: IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3ae for 10 Gigabit Ethernet
Protocols and management standards: ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control
Hardware installation guide: Yes
