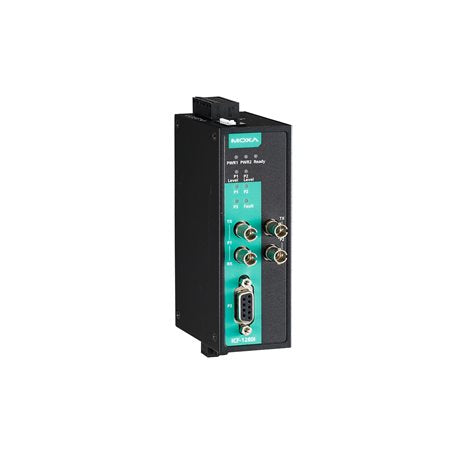

MOXA ICF-1280I-S-ST SERIAL TO FIBER CONVERTER

MOXA ICF-1280I-S-ST SERIAL TO FIBER CONVERTER

$2,310.00 CAD
$2,310.00 CAD
Sale Sold out

Features and Benefits

  • RS-232/422/485 to single-mode fiber optic converter
  • Single-mode fiber with ST connector for long-distance communication
  • Extends communication distance up to 40 km
  • Supports baud rates up to 921.6 kbps for fast data transmission
  • 2.5 kV optical isolation for enhanced industrial-grade protection
  • Integrated surge protection for reliable and stable operation
  • Automatic baud rate detection for simplified configuration
  • Wide operating temperature range: -40 to 75°C
  • DIN-rail mounting for secure and easy installation
  • Designed for industrial automation and utility network applications
View full details

Description

MOXA ICF-1280I Series Introduction
The ICF-1280I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1280I Series provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.

You can also find the ICF-1280I-M-ST-T, ICF-1280I-S-ST, and ICF-1280I-S-ST-T models in the ICF-1280I Series.

Data sheet

Specification

CONVERTER:Converter Specifications
Data Transfer Speed: 9.6 kbps to 12 Mbps
Maximum Data Transmission Distance: Up to 4 km over multi-mode fiber
Optical Isolation: 2 kV for PROFIBUS system
Wavelength: 820 nm
CONVERTER:Power Requirements
Input Voltage: 12 to 48 VDC
Power Consumption: Approximately 370 mA @ 12 to 48 VDC
Number of Power Inputs: 2
Overload Current Protection: Supported
CONVERTER:Standards and Protocols
PROFIBUS Protocols: PROFIBUS DP
Fiber Optic Standard: 100BaseFX
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 0.5 kV
- IEC 61000-4-5 Surge: Power: 0.5 kV
- IEC 61000-4-6 CS: 3 V
- IEC 61000-4-8 PFMF
Safety: EN 60950-1, IEC 60950-1, UL 508
Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3
Vibration: IEC 60068-2-6
CONVERTER:Interface
PROFIBUS Ports: 1
Connector: DB9 female
Baudrate: 9600 bps to 12 Mbps
Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Fiber Ports: 2 (multi-mode ST connectors)
Fiber Cable Requirements: 50/125 µm, 62.5/125 µm, 100/140 µm
Typical Distance: Up to 4 km
Optical Power:
Tx Output: -14 dBm
Rx Sensitivity: -28 dBm
Link Budget: 14 dB
CONVERTER:General
Housing: Metal
IP Rating: IP30
Dimensions: 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in)
Weight: 180 g (0.39 lb)
Installation: DIN-rail or wall-mounting
MTBF: Over 1,000,000 hours (Telcordia (Bellcore), GB)
Warranty Period: 5 years
CONVERTER:Physical Characteristics
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
CONVERTER:LED Indicators
PWR1: Power source 1 status
PWR2: Power source 2 status
Fiber Tx: Fiber transmission status
Fiber Rx: Fiber reception status
CONVERTER:Package Checklist
Device: 1 x ICF-1280I-M-ST converter
Documentation:
- 1 x Quick Installation Guide
- 1 x Warranty Card
