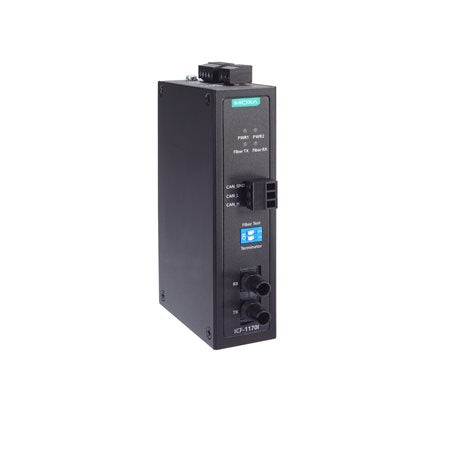

MOXA ICF-1170I-M-ST-T SERIAL TO FIBER CONVERTER

MOXA ICF-1170I-M-ST-T SERIAL TO FIBER CONVERTER
$849.00 CAD
$849.00 CAD
Special Offer Out of Stock

Features and Benefits

  • RS-232/422/485 to multi-mode fiber optic converter
  • Multi-mode fiber with ST connector for reliable communication
  • Extends communication distance up to 5 km
  • Supports baud rates up to 921.6 kbps for fast data transmission
  • 2.5 kV optical isolation for enhanced protection
  • Integrated surge protection for added reliability
  • Automatic baud rate detection for simplified setup
  • Wide operating temperature range: -40 to 75°C
  • DIN-rail mounting for easy installation
  • Ideal for industrial automation and utility communication systems
View full details

Description

Data sheet

Specification

CONVERTER:Converter Specifications
Data Transfer Speed: Up to 1 Mbps
Maximum Data Transmission Distance: 2 km (multi-mode fiber), 40 km (single-mode fiber)
Optical Isolation: 2 kV for CAN bus system
Wavelength: 850 nm (multi-mode), 1310 nm (single-mode)
CONVERTER:Power Requirements
Power Input: 12 to 48 VDC
Power Consumption: Approximately 1.5 W
CONVERTER:Standards and Protocols
CAN Protocols: CAN 2.0A and CAN 2.0B
Fiber Optic Standard: IEEE 802.3u 100Base-FX
CONVERTER:Interface
CAN Ports: 1
Fiber Ports: 1 (ST connector for multi-mode or single-mode fiber)
CONVERTER:General
MTBF: Over 1,000,000 hours
Housing: Metal
Installation: DIN-rail or wall-mounting
CONVERTER:Physical Characteristics
Dimensions: 30 x 70 x 115 mm
Weight: 0.2 kg
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
CONVERTER:LED Indicators
PWR1, PWR2: Power status
CAN: CAN bus status
Fiber: Fiber link status
CONVERTER:Package Checklist
Converter Unit: Yes
Hardware Installation Guide: Yes
Warranty Card: Yes
