Moxa

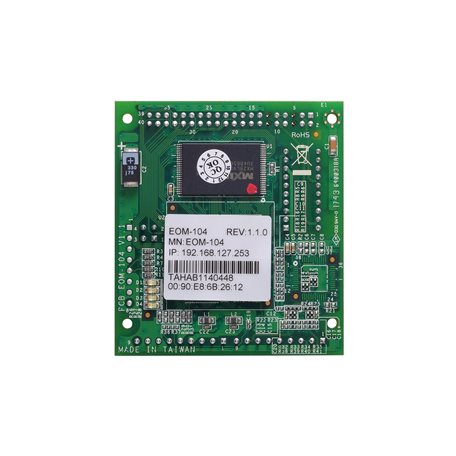

MOXA EOM-104-FO EVALUATION KIT EMBEDDED MANAGED ETHERNET SWITCH MODULES

MOXA EOM-104-FO EVALUATION KIT EMBEDDED MANAGED ETHERNET SWITCH MODULES

$896.00 CAD
$896.00 CAD
Sale Sold out

Features and Benefits

  • 4-port embedded Ethernet switch module
  • Compact design for integration into space-constrained devices
  • Supports IEEE 802.3/802.3u standards for reliable Ethernet communication
  • Wide operating temperature range: -40 to 75°C
  • Low power consumption for energy-efficient applications
  • Ideal for industrial automation and embedded systems
  • Designed for seamless integration with existing hardware
View full details

Description

MOXA EOM-104 Series Introduction
The EOM-104 Series is designed for device manufacturers who would like to embed Ethernet modules in their products to enhance performance and reliability. The EOM-104 Series provides an easy and cost-effective integrated solution for adding an Ethernet switch module to an existing product. The modules support 10/100M Ethernet transmission and come with Turbo Ring’s fast recovery time of under 20 ms. The EOM-104 Series provides a rich set of peripherals, such as Turbo Ring Enable and GPIO programming pins, and is an ideal solution for embedded Ethernet applications.

You can also find the EOM-104-FO 20PCS and EOM-104 20PCS models in the EOM-104 Series.

Data sheet

Specification

Modules:Interface
Ports:4 x 10/100Mbps T(X) Ports
Modules:Power Requirements
Output Voltage:-
Input Current:0.48 A @ 3.3 VDC
Modules:Physical Characteristics
Dimensions:54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)
Weight:0.02kg
Operating Temperature:-40 to 75°C
Storage Temperature:-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity:5 to 95% (non-condensing)
Standards and Certifications:EMC:EN 55032/24, EMI:CISPR 32, FCC Part 15B Class A
