Regular price $2,308.00 CAD
Regular price Sale price $2,308.00 CAD
Sale Sold out
We have 3 in stock

Features and Benefits

  • 8 x 10/100Mbps T(x) PoE ports and 2 Gigabit Combo ports
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature

    View full details

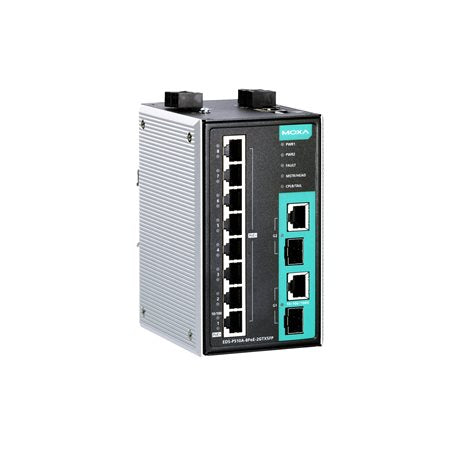

    Moxa’s EDS-P510A Series has 8 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P510A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode and allow high-power output of up to 36 watts for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The EDS-P510A Ethernet Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity. The Ethernet switches support a variety of management functions, as well as STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDSP510A Series is designed with 3 kV surge protection for harsh outdoor applications to increase the reliability of PoE systems.

    You can also find the EDS-P510A-8PoE-2GTXSFP-T model in the EDS-P510A series.


    Number of ports: 10 Ports
    10/100Mb (Megabit) POE Ports: 8 Ports
    Other ports: 2 Combo 1000Mbps Ports
    Maximum power consumption: 17.28W
    Power Consumption: 48V DC, 5.36A
    MTBF: 710,166 hour
    Switch type: Managed
    Dimensions: 79.2x135x105mm
    Housing: Metal
    Installation: Din-rail
    Operating Temperature: 0 to 60 ° C
    Operation Humidity: 5% to %95 non-condensing
    Standards and Certifications: Safety: UL 508, Hazardous Location: UL/cUL Class 1 Division 2, EMC: EN 55032/24, EMI: CISPR 32; FCC Part 15B Class A, EMS: IEC 61000-4-2, ESD: Contact: 6 kV; Air: 8 kV ;IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: Signal: 10 V; IEC 61000-4-8, Traffic Control: NEMA-TS2, Rail Traffic: EN 50121-4, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6 , IP30 protection
