Moxa

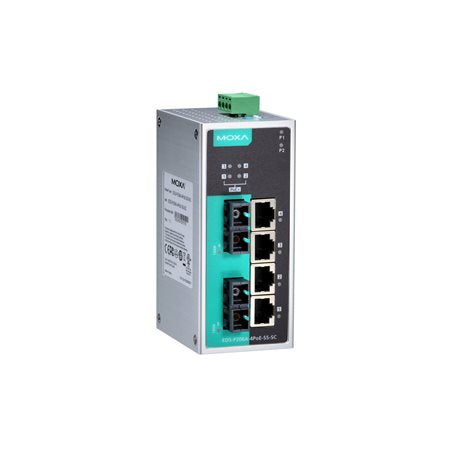

MOXA EDS-P206A-4POE-MM-SC UNMANAGED ETHERNET SWITCH

MOXA EDS-P206A-4POE-MM-SC UNMANAGED ETHERNET SWITCH

Regular price $1,081.00 CAD
Regular price Sale price $1,081.00 CAD
Sale Sold out

Features and Benefits

  • 4 x 10/100Mbps T(X) PoE ports, 2 x 100Mbps F(x) multi-mode port with SC connector
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature
View full details

Description

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

You can also find the EDS-P206A-4PoE-M-SC, EDS-P206A-4PoE-MM-ST, EDS-P206A-4PoE-S-SC, EDS-P206A-4PoE-T models in the EDS-P206A SERIES.

Specification

Number of ports: 6 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi-mode (Megabit) Ports: Yes: 2 SC Ports
100Mb Fiber optic single-mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: Yes: 4 Ports
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
Backup: No
LED Per Port: Yes
Power: Yes
Maximum power consumption: 30W (in PoE mode)
Power Consumption (Output Adapter): 48V DC, 7.5A
Power Input Plugin (Redundant): Yes
Fan/Fanless: No
MTBF: 645138 hours
Most forwarding speed: -
Network working layers: Layer 1
Switch type: UnManaged
Port Aggregation: -
Dimensions: 50.3x115x70mm
Housing: Metal
Installation: Din-rail
Operating Temperature: -10 to 60 °C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: FCC, UL 508, IP30
Storage Humidity: -
Storage Temperature: -40 to 85 °C
Weight: 0.375Kg
Protocols and work standards: IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control
Protocols and management standards: No
Hardware installation guide: Yes
Power adapter: No
Power cable: No
