Moxa

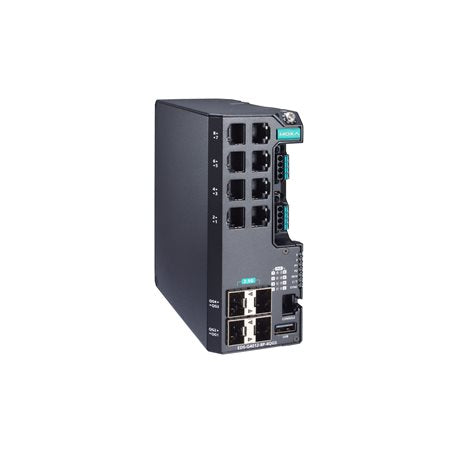

MOXA EDS-G4012-8P-4QGS-LVB-T MANAGED ETHERNET SWITCH

MOXA EDS-G4012-8P-4QGS-LVB-T MANAGED ETHERNET SWITCH

Regular price $3,871.00 CAD
Regular price Sale price $3,871.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100/1000Mbps T(X) PoE ports, 4 x 100/1000/2500 SFP ports
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature
  • Input Voltage : 12/24/48 VDC, Redundant dual inputs



View full details

Description

The EDS-G4012 Series is equipped with 12 Gigabit Ethernet ports and up to four 1 Gbps or 2.5 Gbps fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. This Series also comes with eight 10/100/1000BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet port options to connect high-bandwidth PoE devices.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.

The EDS-G4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

You can also find the EDS-G4012-4GC-LV-T, EDS-G4012-4GC-HV, and EDS-G4012-8P-4QGS-LVA models in the EDS-G4012 Series.

Specification

Number of ports: 12 Ports
10/100/1000Mb (Gigabit) POE Ports: 8 Ports
Other ports: 4 x 100/1000/2500 SFP ports
Maximum power consumption: 12.68 W
MTBF: 759,924 hrs
Switch type: Managed
Housing: Metal
Installation: Din-rail
Operation Humidity: 5% to %95 non-condensing
Standards and Certifications: Industrial Cybersecurity : IEC 62443-4-1, IEC 62443-4-2; UL 61010-2-201, EN 62368-1 (LVD); EN 55022/24, EN 61000-6-2/-6-4; CISPR 32, FCC Part 15B Class A; IEC 61000-4-2 ESD: Contact: 8 kV Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Vibration, Shock, Freefall, Railway, Traffic Control
