Regular price $954.00 CAD
Regular price Sale price $954.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100/1000Mbps T(X) ports
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature
  • Input Voltage : 110/220 VDC/VAC, Single input
View full details

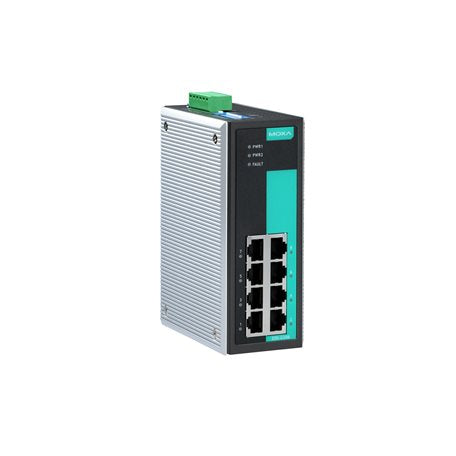

The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.

You can also find the EDS-G308-2SFP, EDS-G308-2SFP-T, EDS-G308-T models in the EDS-G308 SERIES.


Number of Ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: Yes : 8 Ports
100Mb Fiber Optic Multi-Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
Backup: No
LED Per Port: Yes
Power: Yes
Maximum Power Consumption: Not specified
Power Consumption (Output Adapter): 24V DC, 0.32A
Power Input Plugin (Redundant): Yes
Fan/Fanless: No
MTBF: 325,000 hours
Most Forwarding Speed: Not specified
Network Working Layers: Layer 1
Switch Type: Unmanaged
Port Aggregation: No
Dimensions: 53.6x135x105mm
Housing: Metal
Installation: DIN-rail
Operating Temperature: -40 to 75°C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: FCC, UL/cUL Class 1 Div.2, ATEX Zone 2, DNV, GL, LR, ABS, NK, IP30
Storage Humidity: Not specified
Storage Temperature: -40 to 85°C
Weight: 0.63 Kg
Protocols and Work Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control
Protocols and Management Standards: No
Hardware Installation Guide: Yes
Power Adapter: No
Power Cable: No
