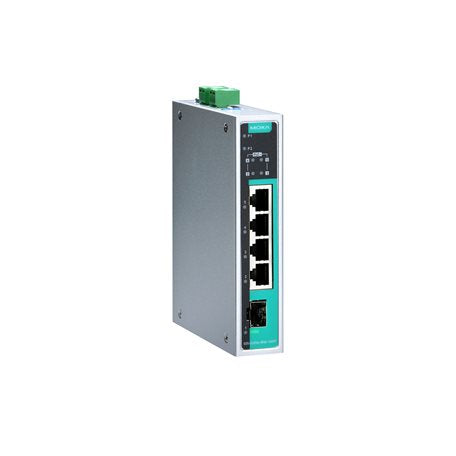

MOXA EDS-G205A-4PoE-1GSFP-T UNMANAGED ETHERNET SWITCH

MOXA EDS-G205A-4PoE-1GSFP-T UNMANAGED ETHERNET SWITCH

$1,384.00 CAD
$1,384.00 CAD
Sale Sold out

Features and Benefits

  • 4 x 10/100/1000Mbps T(x) PoE ports and 1 x 100/1000Mbps SFP Slot
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature
View full details

Description

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches support Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.

You can also find the EDS-G205A-4PoE-1GSFP, EDS-G205A-4PoE, EDS-G205A-4PoE-T models in the EDS-G205A SERIES.

Data sheet

Specification

Number of Ports: 5 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi-Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: Yes : 1 Port
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: Yes : 4 Ports
Backup: No
LED Per Port: Yes
Power: Yes
Power Consumption (Output Adapter): 24V DC, 7.5A
Power Input Plugin (Redundant): Yes
Fan/Fanless: No
MTBF: Not specified
Most Forwarding Speed: Not specified
Network Working Layers: Layer 1
Switch Type: Unmanaged
Port Aggregation: No
Dimensions: 29x135x105mm
Housing: Metal
Installation: DIN-rail
Operating Temperature: -40 to 75°C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: FCC, UL 508, EN 50121-4, IP30
Storage Humidity: Not specified
Storage Temperature: -40 to 85°C
Weight: 0.3 Kg
Protocols and Work Standards: IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT, IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control
Protocols and Management Standards: No
Hardware Installation Guide: Yes
Power Adapter: No
Power Cable: No
