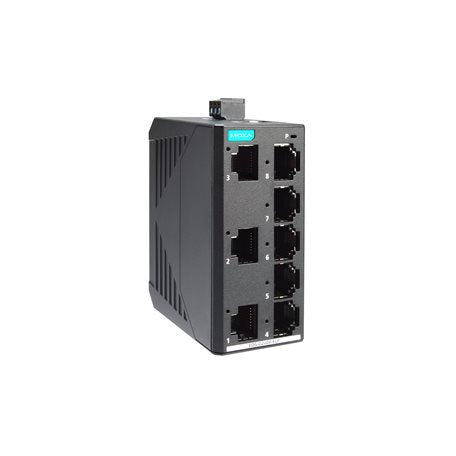

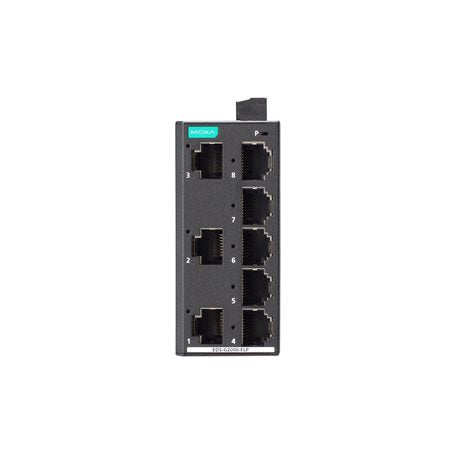

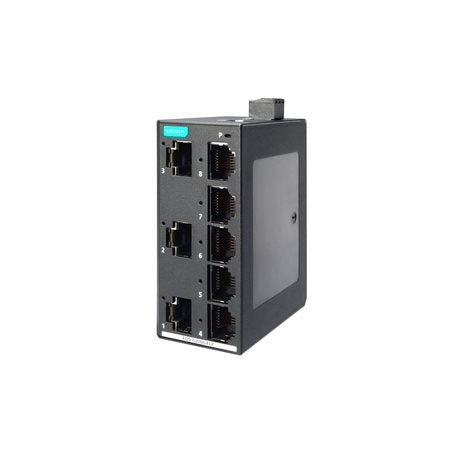

MOXA EDS-G2008-ELP UNMANAGED ETHERNET SWITCH

Name: MOXA EDS-G2008-ELP UNMANAGED ETHERNET SWITCH
Availability: InStock

MOXA EDS-G2008-ELP UNMANAGED ETHERNET SWITCH

$294.00 CAD

Sale Sold out

We have 10 in stock

Product variants

Quantity

Features and Benefits

8 x 10/100/1000Mbps T(x) ports
DIN-rail
Plastic body
-40 to 75°C operating temperature

View full details

Description

The EDS-G2008-ELP Series of industrial Ethernet switches has eight Gigabit Ethernet ports and plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-G2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2008-ELP Series has a standard operating temperature range of -10 to 60°C.

Data sheet

Specification

Number of ports: 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: Yes (8 Ports)
LED Per Port: Yes
Power Consumption (Output Adapter): 9.6 to 60 VDC
Fan/Fanless: Fanless
MTBF:3,404,784 hrs
Network working layers: Layer 1
Switch type: Unmanaged
Housing: Plastic
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5 to 95% (non-condensing)
Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR, 32, FCC Part 15B Class A;
EMS: IEC 61000-4-2 ESD: Contact: 6 kV Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 1 kV Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32
Protocols and work standards:IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3x for flow control
Hardware installation guide: Yes
