Moxa

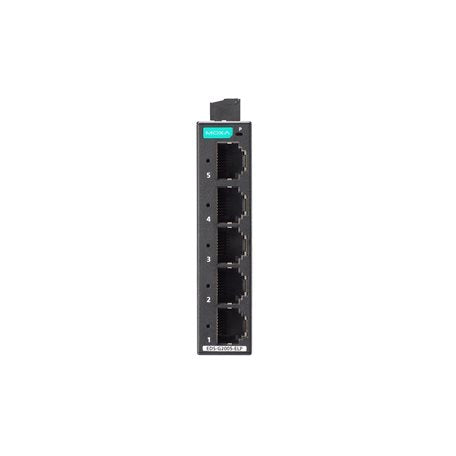

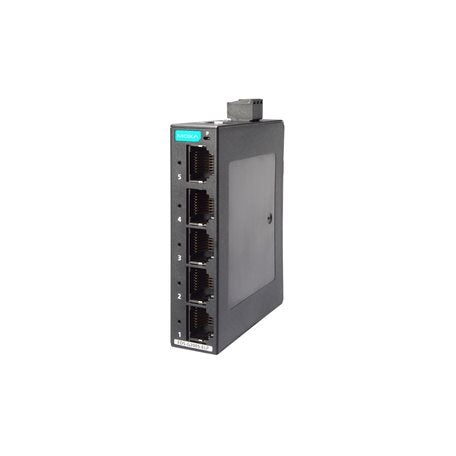

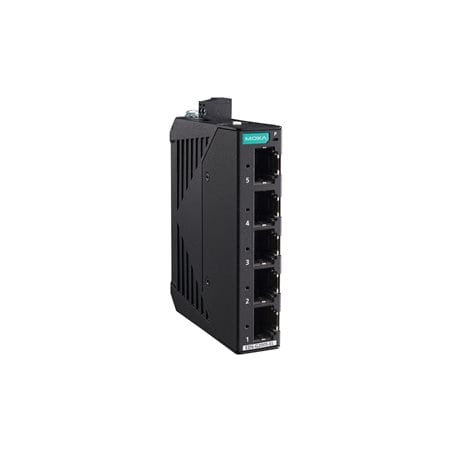

MOXA EDS-G2005-ELP UNMANAGED ETHERNET SWITCH

MOXA EDS-G2005-ELP UNMANAGED ETHERNET SWITCH

$228.00 CAD
$228.00 CAD
Sale Sold out
We have 10 in stock

Features and Benefits

  • 5 x 10/100/1000Mbps T(x) ports
  • DIN-rail
  • Plastic body
  • -10 to 60°C operating temperature
View full details

Description

The EDS-G2005-ELP series of industrial Ethernet switches have five Gigabit Ethernet ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-G2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDSG2005-ELP Series has a standard operating temperature range of -10 to 60°C.

Data sheet

Specification

Number of ports: 5 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: Yes (5 Ports)
LED Per Port: Yes
Power Consumption (Output Adapter): 9.6 to 60 VDC
Fan/Fanless: Fanless
MTBF: 3,404,784 hrs
Network working layers: Layer 1
Switch type: Unmanaged
Housing: Plastic
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5 to 95% (non-condensing)
Safety: UL 61010-2-201, EN 62368-1 (LVD)
EMC: EN 55032/35, EN 61000-6-2/-6-4
EMI: CISPR, 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 Power: 1 kV Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3x for flow control
Hardware installation guide: Yes
