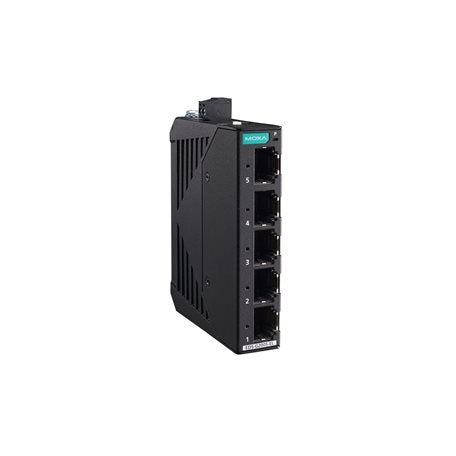

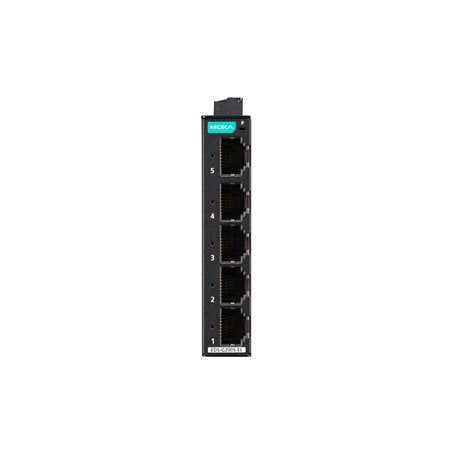

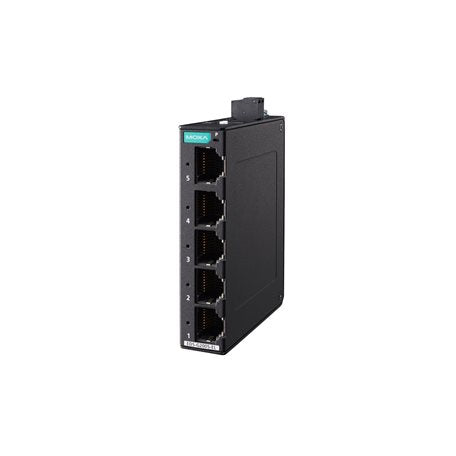

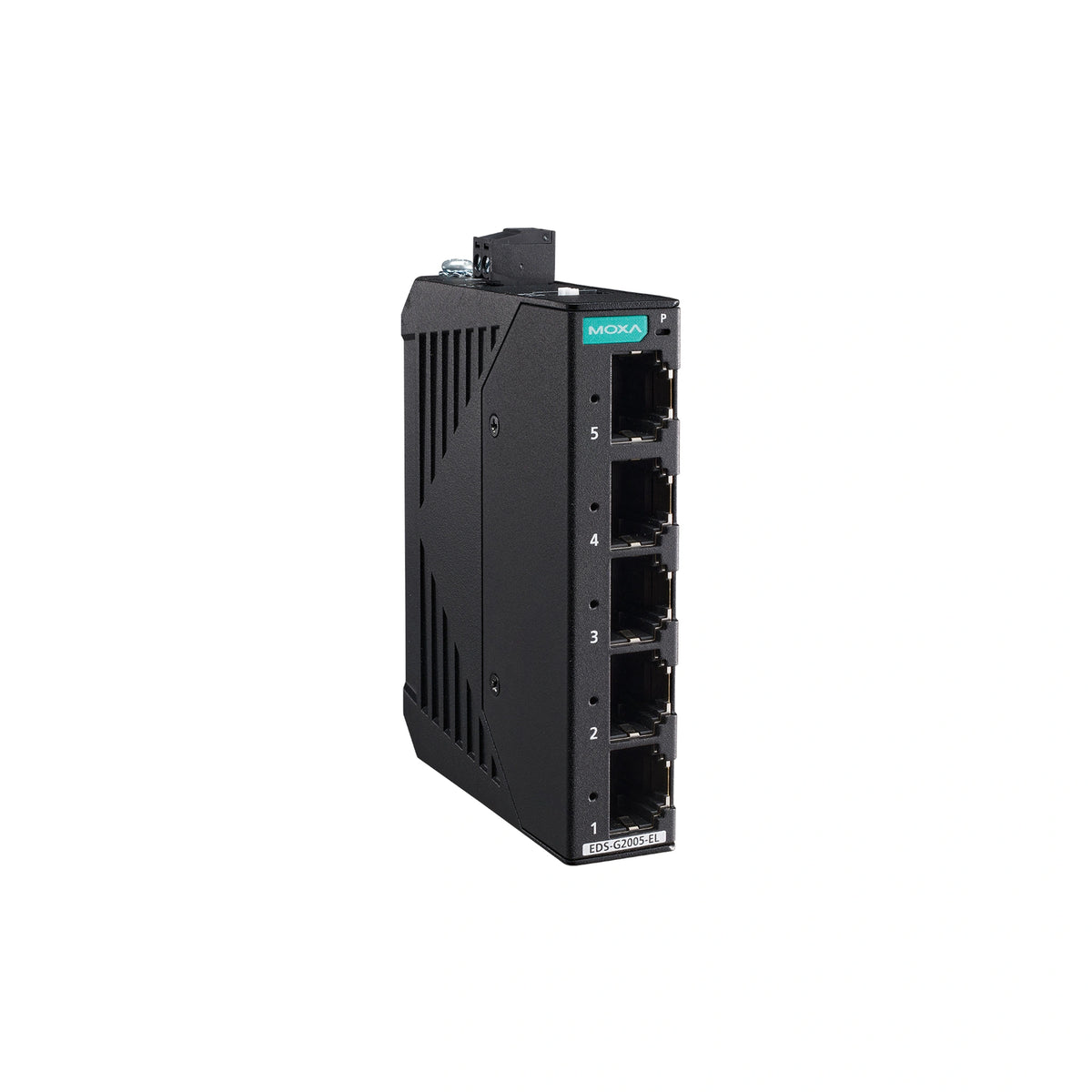

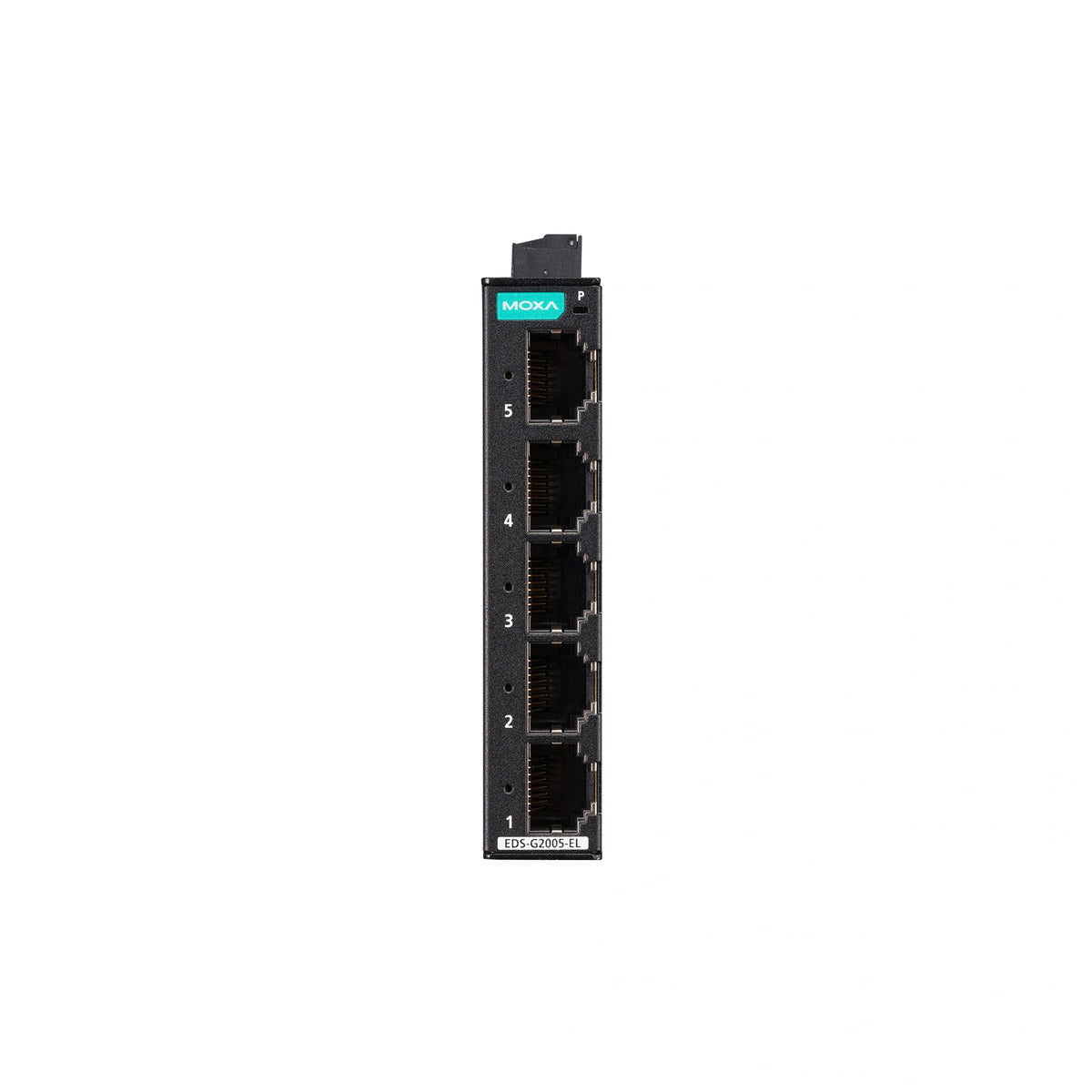

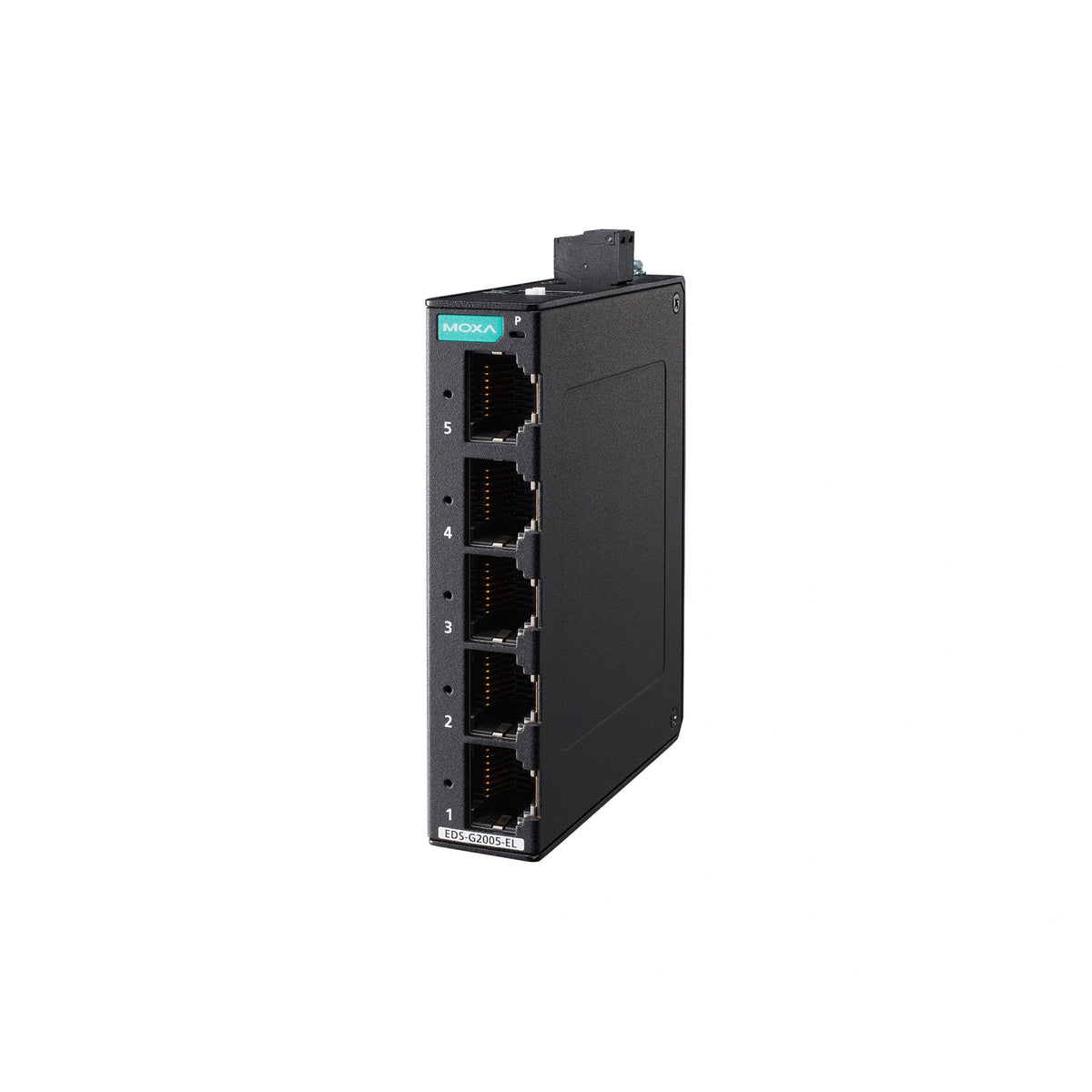

MOXA EDS-G2005-EL-T UNMANAGED ETHERNET SWITCH

MOXA EDS-G2005-EL-T UNMANAGED ETHERNET SWITCH

$309.00 CAD
$309.00 CAD
Sale Sold out
We have 16 in stock

Unmanaged SwitchesFeatures and Benefits

  • 5 x 10/100/1000Mbps T(x) ports
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature
View full details

Description

The EDS-G2005-EL series of industrial Ethernet switches have five Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-G2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDSG2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

You can also find the EDS-G2005-EL model in the EDS-G2005-EL Series.

Data sheet

Specification

Number of ports: 5 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: Yes (5 Ports)
LED Per Port: Yes
Power Consumption (Output Adapter): 9.6 to 60 VDC
Fan/Fanless: Fanless
MTBF: 3,404,784 hrs
Network working layers: Layer 1
Switch type: Unmanaged
Housing: Metal
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5 to 95% (non-condensing)
Safety: UL 61010-2-201, EN 62368-1 (LVD)
EMC: EN 55032/35, EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 Power: 1 kV Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3x for flow control
Hardware installation guide: Yes
