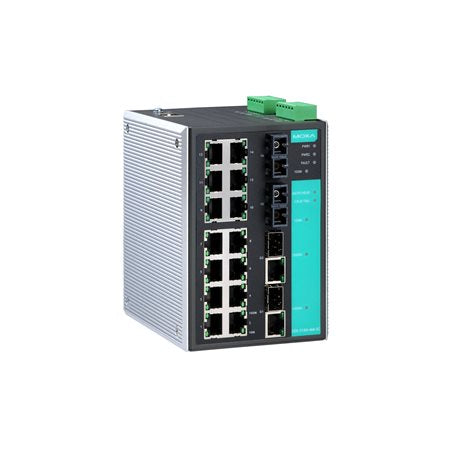

MOXA EDS-518A-SS-SC-80 MANAGED ETHERNET SWITCH

MOXA EDS-518A-SS-SC-80 MANAGED ETHERNET SWITCH

$8,281.00 CAD
$8,281.00 CAD
Sale Sold out

Features and Benefits

  • 16 x 10/100Mbps T(X) ports and 2 long-haul (80 km) 100Mbps F(x) single-mode ports with SC connector
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature
View full details

Description

The EDS-518A standalone 18-port managed Ethernet switches provide 2 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The Ethernet redundancy technologies Turbo Ring and Turbo Chain (recovery time < 20 ms) increase the reliability and speed of your network backbone. The EDS-518A switches also support advanced management and security features.

You can purchase the MOXA EDS-518A-SS-SC-80 Managed Ethernet Switch, tailor-made for industrial Automation at a competitive price, and simplify your buying process by placing an order through our website or inquire at our Middle East branches (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman). Our dedicated team is always ready to assist you.

Data sheet

Specification

Input/Output Interface:
Alarm Contact Channels: 1
Relay Output: 1 A @ 24 VDC
Buttons: Reset button
Digital Input Channels: 1
Digital Input Voltage Range: +13 to +30 V for state 1, -30 to +3 V for state 0
Max Input Current: 8 mA
Ethernet Interface:
10/100BaseT(X) Ports: 14 (EDS-518E-4GTXSFP), 12 (other models)
Combo Ports: 4 (10/100/1000BaseT(X) or 100/1000BaseSFP+)
Fiber Ports Multi-Mode SC: 2 (EDS-518E-MM-SC-4GTXSFP)
Fiber Ports Multi-Mode ST: 2 (EDS-518E-MM-ST-4GTXSFP)
Fiber Ports Single-Mode SC: 2 (EDS-518E-SS-SC-4GTXSFP)
Software Features:
Protocols: EtherNet/IP, Modbus TCP, PROFINET IO Device
Redundancy: Turbo Ring, Turbo Chain, MSTP, RSTP, STP, MRP
Security: HTTPS, SSH, TACACS+, RADIUS, SNMPv3, MAC ACL
Management: LLDP, Port Mirror, DHCP Options 66/67/82
Switch Properties:
IGMP Groups: 2048
MAC Table: 16 K
Max VLANs: 64
Packet Buffer Size: 1 Mbit
Physical Characteristics:
Dimensions: 94 x 135 x 137 mm
Weight: 1630 g
Installation: DIN-rail, Wall mounting (optional)
Environmental and Standards:
Operating Temperature: -10 to 60°C (Standard), -40 to 75°C (Wide-Temp)
Certifications: UL 508, EN 62368-1, ATEX, IEC 61850-3
Power Specifications:
Input Voltage: 9.6 to 60 VDC
Redundant Inputs: Supported
Overload Protection: Supported
Reverse Polarity Protection: Supported
Warranty:
Period: 5 years
