Moxa

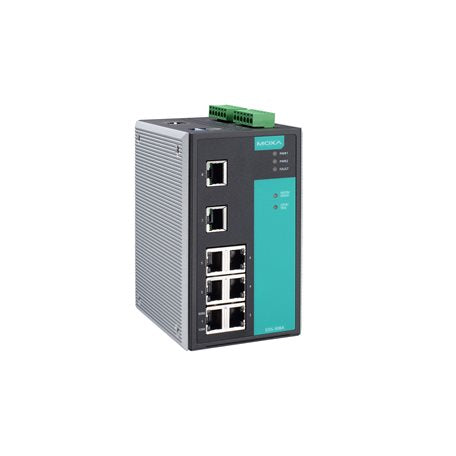

MOXA EDS-508A MANAGED ETHERNET SWITCH

MOXA EDS-508A MANAGED ETHERNET SWITCH

$1,220.00 CAD
$1,220.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100Mbps T(X) ports
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature

View full details

Description

The EDS-508A standalone 8-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-508A switches suitable for any harsh industrial environment.

You can also find the EDS-508A-T, EDS-508A-SS-SC, EDS-508A-MM-ST, EDS-508A-MM-SC-T models in the EDS-508A series.

Data sheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: 8 Ports
Power Consumption: 24V DC, 0.26A
MTBF: 339000 hour
Switch type: Managed
Dimensions: 80.2x135x105mm
Housing: Metal
Installation: Din-rail
Operating Temperature: 0 to 60°C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: CE/FCC, UL 60950-1, UL 508, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, IP30
Storage Temperature: -40 to 85°C
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP
