Features and Benefits

  • 3 x 10/100Mbps T(X) ports and 2 x 100Mbps F(x) single-mode ports with SC connector
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature

    View full details

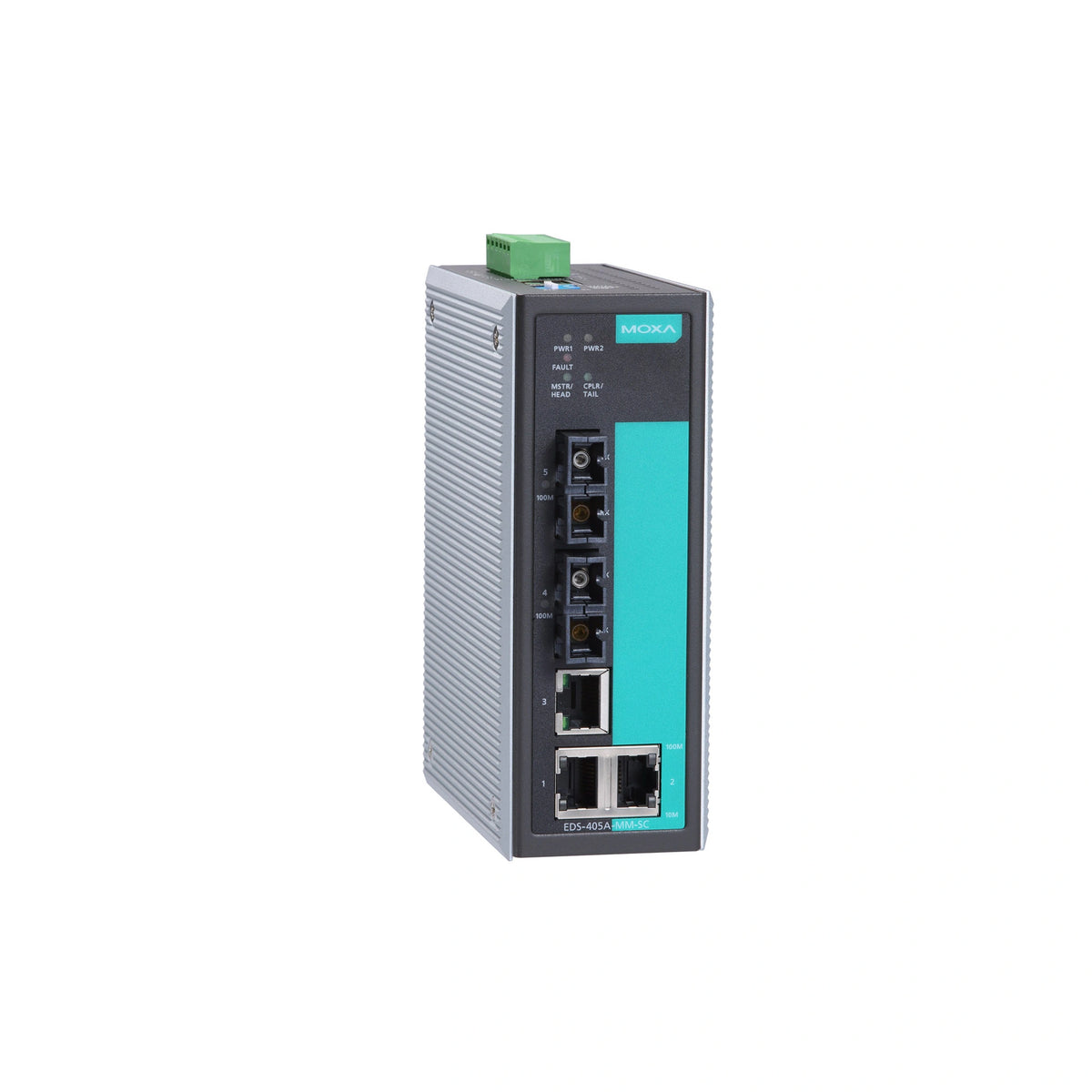

    The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

    You can also find the EDS-405A-T, EDS-405A-SS-SC-T, EDS-405A-MM-ST, EDS-405A-MM-SC-T models in the EDS-405A series.


    Number of ports: 5 Ports
    10/100Mb RJ45 (Megabit) Ports: Yes, 3 Ports
    10/100/1000Mb RJ45 (Gigabit) Ports: No
    100Mb Fiber optic multi-mode (Megabit) Ports: No
    100Mb Fiber optic single-mode (Megabit) Ports: Yes, 2 SC Ports
    1000Mb SFP Fiber optic (Gigabit) Ports: No
    10/100Mb (Megabit) POE Ports: No
    100Mb SFP Fiber optic (Megabit) Ports: No
    10/100/1000Mb (Gigabit) POE Ports: No
    Backup: Turbo Ring, Turbo Chain, Automatic Backup Configurator (ABC-01), STP/RSTP
    LED Per Port: Yes
    Power: Yes
    Maximum power consumption: Not specified
    Power Consumption (Output Adapter): 24V DC, 0.32A
    Power Input Plugin (Redundant): Yes
    Fan / Fanless: No
    MTBF: 392,000 hours
    Most forwarding speed: Not specified
    Network working layers: Layer 2
    Switch type: Managed
    Port Aggregation: No
    Dimensions: 53.6 x 135 x 105 mm
    Housing: Metal
    Installation: Din-rail
    Operating Temperature: 0 to 60 °C
    Operation Humidity: 5% to 95% RH non-condensing
    Standards and Certifications:
    UL 60950-1, UL 508, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, NEMA TS2, IP30
    Storage Humidity: Not specified
    Storage Temperature: -40 to 85 °C
    Weight: 0.65 Kg
    Protocols and Work Standards: Yes
    Protocols and Management Standards: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client
    Hardware Installation Guide: No
    Power Adapter: No
    Power Cable: No
