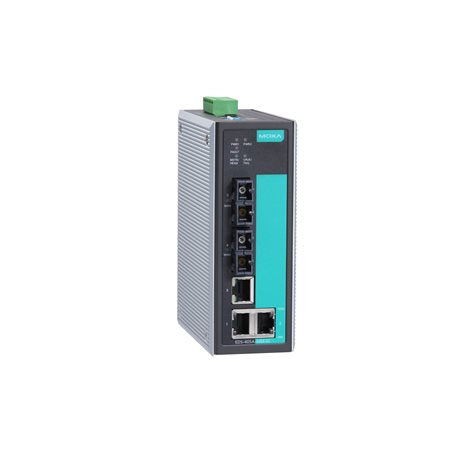

MOXA EDS-405A-MM-SC MANAGED ETHERNET SWITCH

MOXA EDS-405A-MM-SC MANAGED ETHERNET SWITCH

$945.00 CAD
$945.00 CAD
Sale Sold out

Features and Benefits

  • 3 x 10/100Mbps T(x) ports and 2 x 100Mbps F(x) multi-mode ports with SC connector
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature

View full details

Description

The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

You can also find the EDS-405A-T, EDS-405A-SS-SC, EDS-405A-MM-ST, EDS-405A-MM-SC-T models in the EDS-405A series.

Data sheet

Specification

Number of ports: 3 Ports
100Mb Fiber optic multi mode (Megabit) Ports: 2 SC Port
10/100Mb RJ45 (Megabit) Ports: 5 Ports
Power Consumption: 24V DC, 0.24A
MTBF: 1,547,941 hours
Switch type: Managed
Dimensions: 53.6x135x105mm
Housing: Metal
Installation: Din-rail
Operating Temperature: 0 to 60 ° C
Operation Humidity: 5% to %95 RH non-condensing
Standards and Certifications: CE/FCC, UL 60950-1, UL 508, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, NEMA TS2, IP30
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging
