Moxa

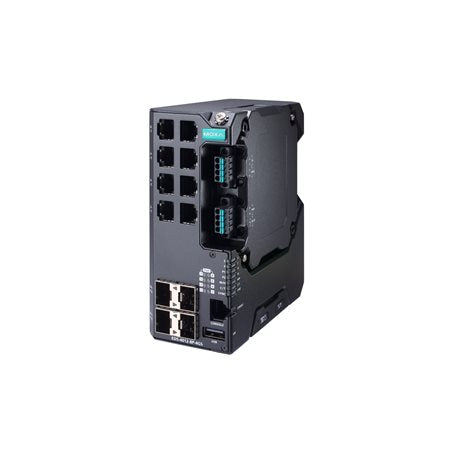

MOXA EDS-4012-8P-4GS-LVA MANAGED ETHERNET SWITCH

MOXA EDS-4012-8P-4GS-LVA MANAGED ETHERNET SWITCH

$2,539.00 CAD
$2,539.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100Mbps T(X) PoE ports, 4 x Gigabit SFP ports
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature
  • Input Voltage : 48 VDC



View full details

Description

The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.

The EDS-4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Data sheet

Specification

Number of ports: 12 Ports
10/100Mb RJ45 (Megabit) Ports: 8 Ports
Other ports: 4 Gigabit Combo Ports
Maximum power consumption: 10.7 W
MTBF: 759,924 hours
Switch type: Managed
Housing: Metal
Installation: Din-rail
Operation Humidity: 5% to %95 non-condensing
Standards and Certifications: Industrial Cybersecurity : IEC 62443-4-1, IEC 62443-4-2; UL 61010-2-201, EN 62368-1 (LVD); EN 55022/24, EN 61000-6-2/-6-4; CISPR 32, FCC Part 15B Class A; IEC 61000-4-2 ESD: Contact: 8 kV Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Vibration, Shock, Freefall, Railway, Traffic Control
