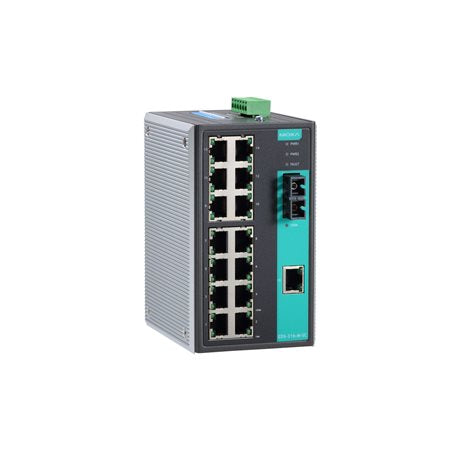

MOXA EDS-316-M-SC-T UNMANAGED ETHERNET SWITCH

MOXA EDS-316-M-SC-T UNMANAGED ETHERNET SWITCH

$1,034.00 CAD
$1,034.00 CAD
Sale Sold out

Features and Benefits

  • 15 x 10/100Mbps T(X) ports and 1 x 100Mbps F(x) multi-mode port with SC connector
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature



View full details

Description

The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a builtin relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.

You can also find the EDS-316-MM-ST, EDS-316-S-SC, EDS-316-T models in the EDS-316 Series.

Data sheet

Specification

Number of Ports: 16 Ports
10/100Mb RJ45 (Megabit) Ports: 15 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi Mode (Megabit) Ports: 1 SC Port
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
LED Per Port: Yes
Power: Yes
Maximum Power Consumption: -
Power Consumption (Output Adapter): 24V DC, 0.44A
Power Input Plugin (Redundant): Yes
Fan / Fanless: No
MTBF: 257,000 hours
Most Forwarding Speed: -
Network Working Layers: Layer 1
Switch Type: Unmanaged
Port Aggregation: -
Dimensions: 80.1 x 135 x 105 mm
Housing: Metal
Installation: Din-rail
Operating Temperature: -40 to 75° C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: CE, FCC, UL 508, UL 60950-1, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, IP30
Storage Humidity: -
Storage Temperature: -40 to 85 ° C
Weight: 1.14Kg
Protocols and Work Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Protocols and Management Standards: No
Hardware Installation Guide: Yes
Power Adapter: No
Power Cable: No
