Moxa

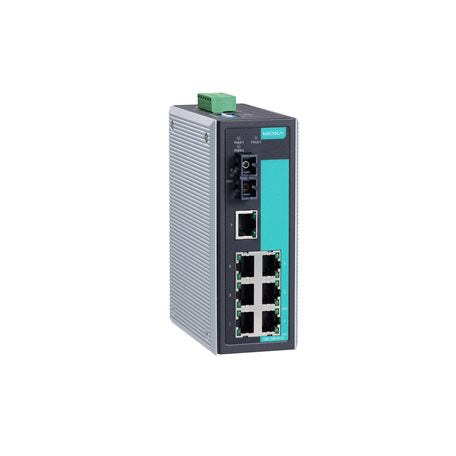

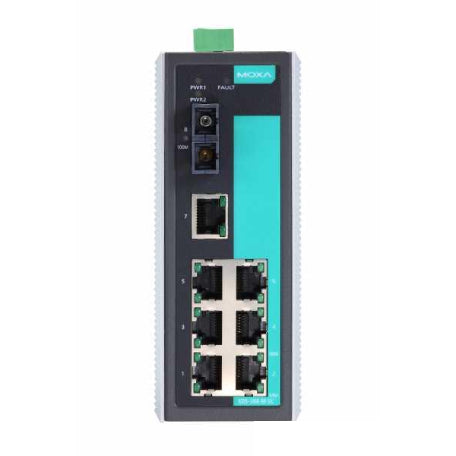

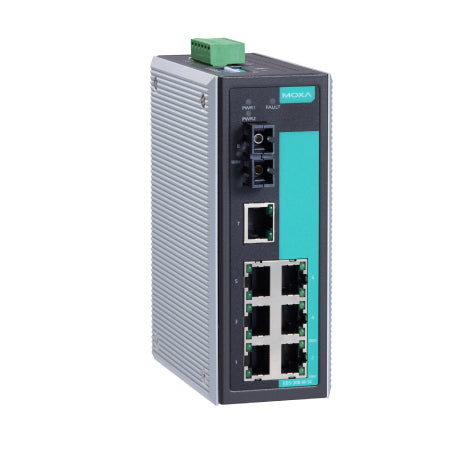

MOXA EDS-308-M-SC UNMANAGED ETHERNET SWITCH

MOXA EDS-308-M-SC UNMANAGED ETHERNET SWITCH
$783.00 CAD
$783.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 7 x 10/100Mbps T(X) ports and 1 x 100Mbps F(x) multi-mode port with SC connector
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature

View full details

Description

Data sheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: 7 Ports
100Mb Fiber optic multi mode (Megabit) Ports: 1 SC Port
Power Consumption: 24V DC, 0.21A
MTBF: 255,528 hour
Switch type: Unmanaged
Dimensions: 53.6x135x105mm
Housing: Metal
Installation: Din-rail
Operating Temperature: 0 to 60 ° C
Operation Humidity: 5% to %95 RH non-condensing
Standards and Certifications: CE, FCC, UL 508, UL 60950-1, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, IP30
Storage Temperature: -40 to 85 ° C
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
