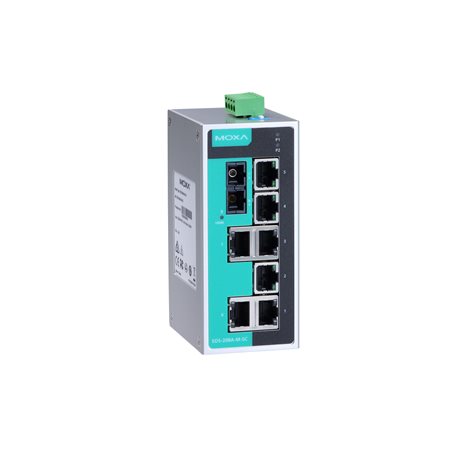

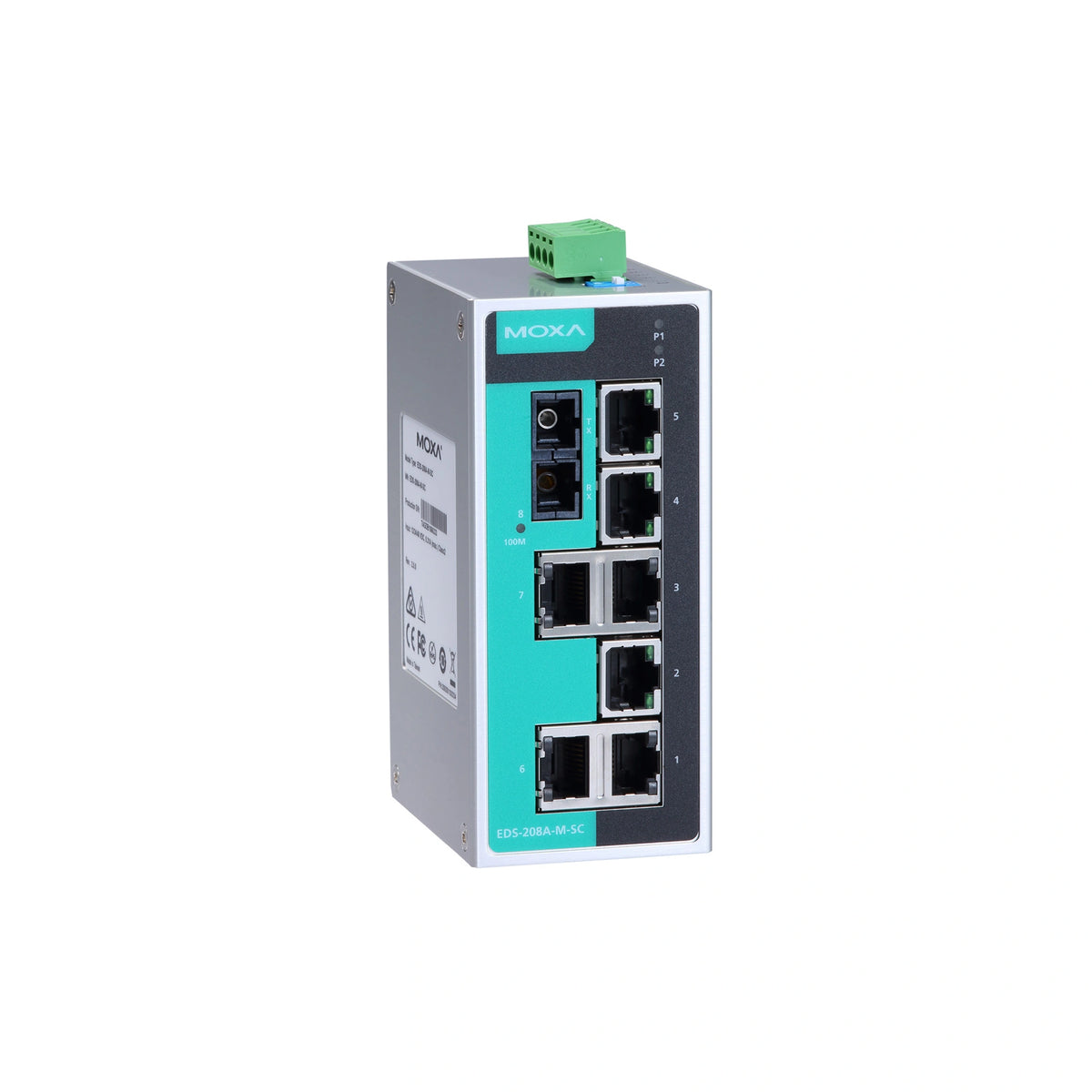

MOXA EDS-208A-S-SC-T UNMANAGED ETHERNET SWITCH

MOXA EDS-208A-S-SC-T UNMANAGED ETHERNET SWITCH

$715.00 CAD
$715.00 CAD
Sale Sold out
We have 30 in stock

Features and Benefits

  • 7 x 10/100Mbps T(x) ports and 1 x 100Mbps F(x) single-mode port with SC connector
  • DIN-rail
  • Aluminum body
  • -40 to 75°C operating temperature
View full details

Description

The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

You can also find the EDS-208A-M-SC, EDS-208A, EDS-208A-M-ST, EDS-208A-T models in the EDS-208A Series.

Data sheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: Yes: 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi-mode (Megabit) Ports: No
100Mb Fiber optic single-mode (Megabit) Ports: Yes: 1 SC Port
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
LED Per Port: Yes
Power: Yes
Maximum power consumption: -
Power Consumption (Output Adapter): 24V AC, 12V DC, 24V DC, 48V DC
Power Input Plugin (Redundant): Yes
Fan / Fanless: No
MTBF: 2,428,212 hours
Most forwarding speed: -
Network working layers: Layer 1
Switch type: Unmanaged
Port Aggregation: -
Dimensions: 50x115x70mm
Housing: Aluminium
Installation: Din-rail
Operating Temperature: -40 to 75 °C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: CE, FCC, UL 508, UL/cUL Class 1 Div 2, ATEX Zone 2, DNV/GL, ABS/LR/NK, NEMA TS2, EN 50121-4, IP30
Storage Humidity: -
Storage Temperature: -40 to 85 °C
Weight: 0.275 Kg
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Protocols and management standards: No
Hardware installation guide: Yes
Power adapter: No
Power cable: No
