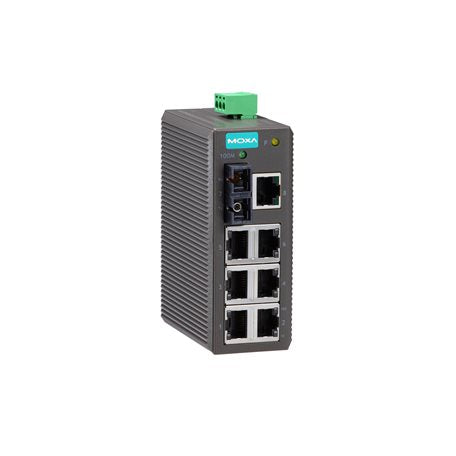

MOXA EDS-208-M-SC UNMANAGED ETHERNET SWITCH

MOXA EDS-208-M-SC UNMANAGED ETHERNET SWITCH

$301.00 CAD
$301.00 CAD
Sale Sold out

Features and Benefits

  • 7 x 10/100Mbps T(x) ports and 1 x 100Mbps F(x) multi-mode port with SC connector
  • DIN-rail
  • Plastic body
  • -10 to 60°C operating temperature
View full details

Description

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.

You can also find the EDS-208, EDS-208-M-ST models in the EDS-208 Series.

Data sheet

Specification

Number of Ports: 8
10/100Mb RJ45 (Megabit) Ports: Yes - 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: Yes - 1 SC Port
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
LED Per Port: Yes
Power: Yes
Maximum Power Consumption: -
Power Consumption (Output Adapter): 24V DC, 0.23A
Power Input Plugin (Redundant): No
Fan / Fanless: No
MTBF: 7492000 hours
Most Forwarding Speed: -
Network Working Layers: Layer 1
Switch Type: UnManaged
Port Aggregation: -
Dimensions: 40x100x86.5mm
Housing: Plastic
Installation: Din-rail
Operating Temperature: -10 to 60°C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: CE, FCC, UL 508, IP30
Storage Humidity: -
Storage Temperature: -40 to 85°C
Weight: 0.17Kg
Protocols and Work Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Protocols and Management Standards: No
Hardware Installation Guide: Yes
Power Adapter: No
Power Cable: No
