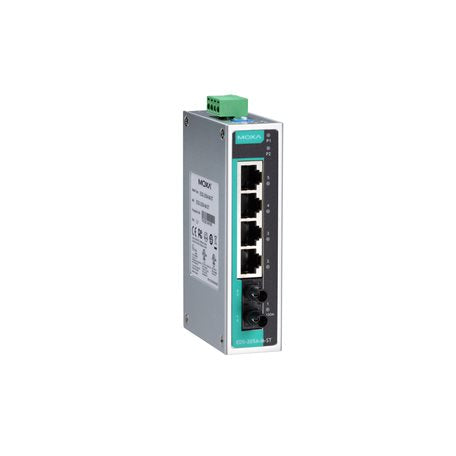

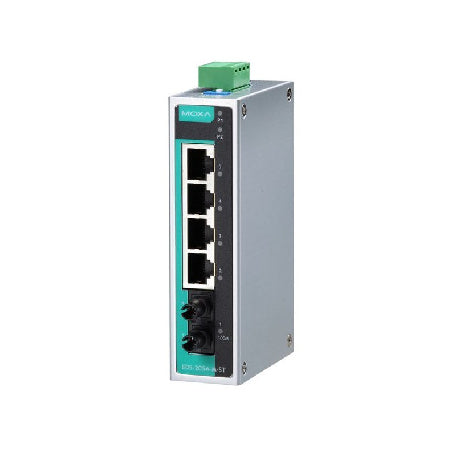

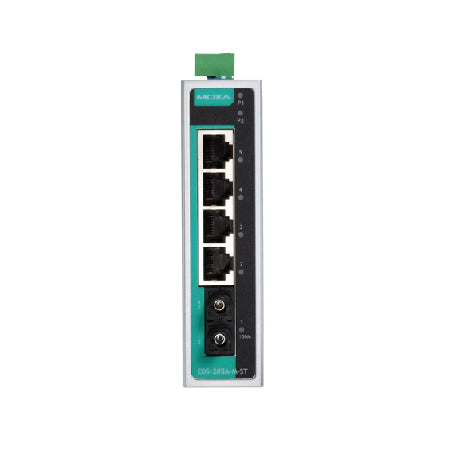

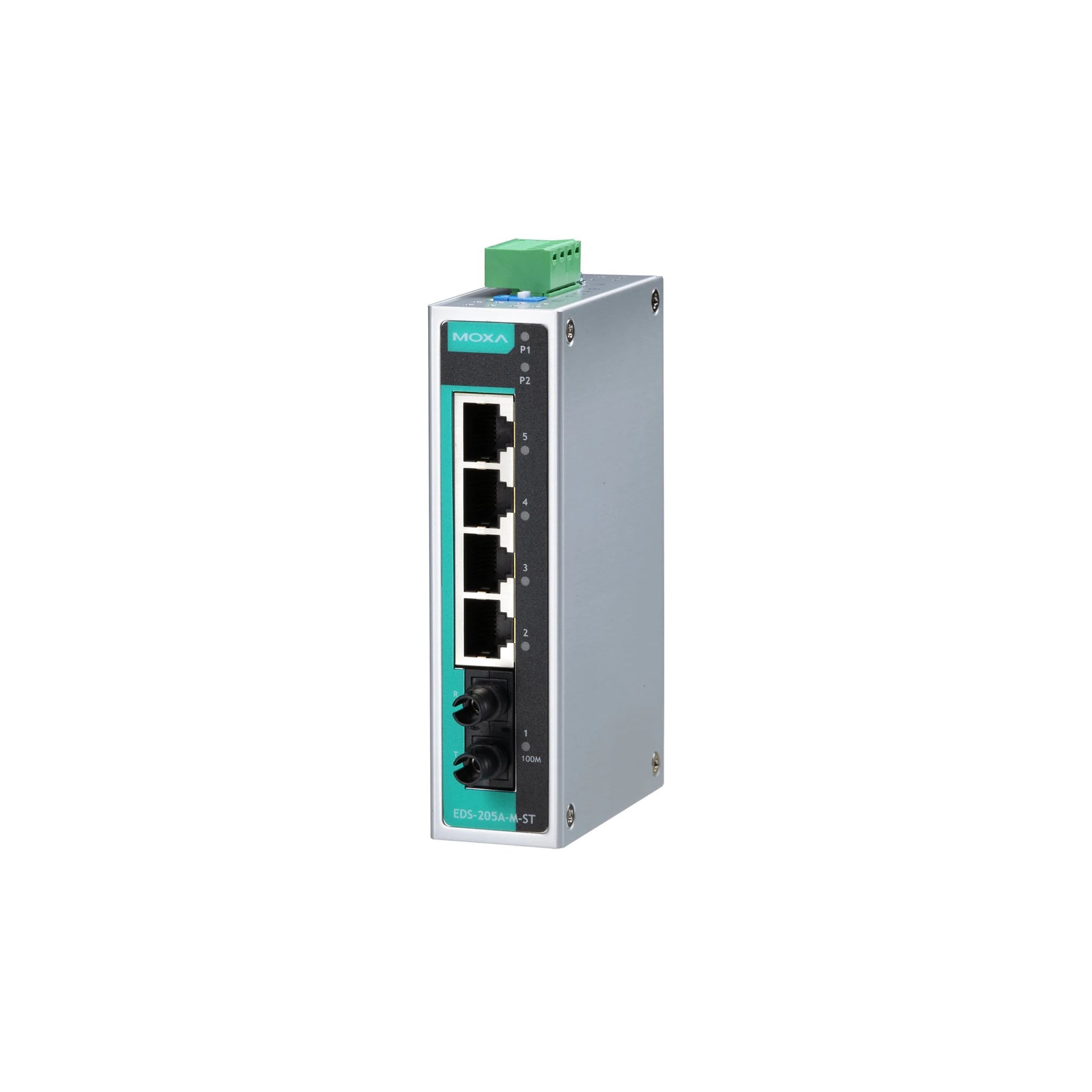

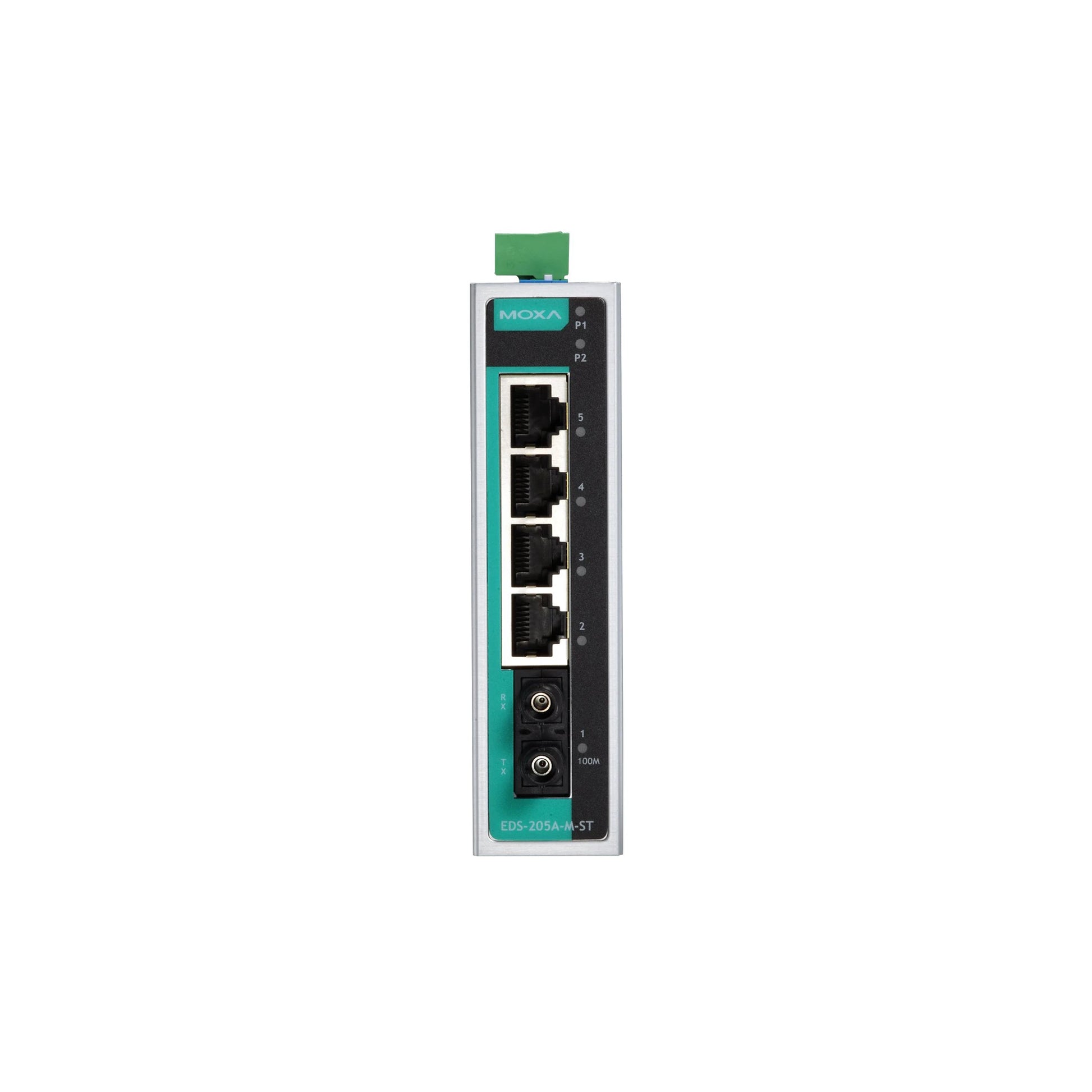

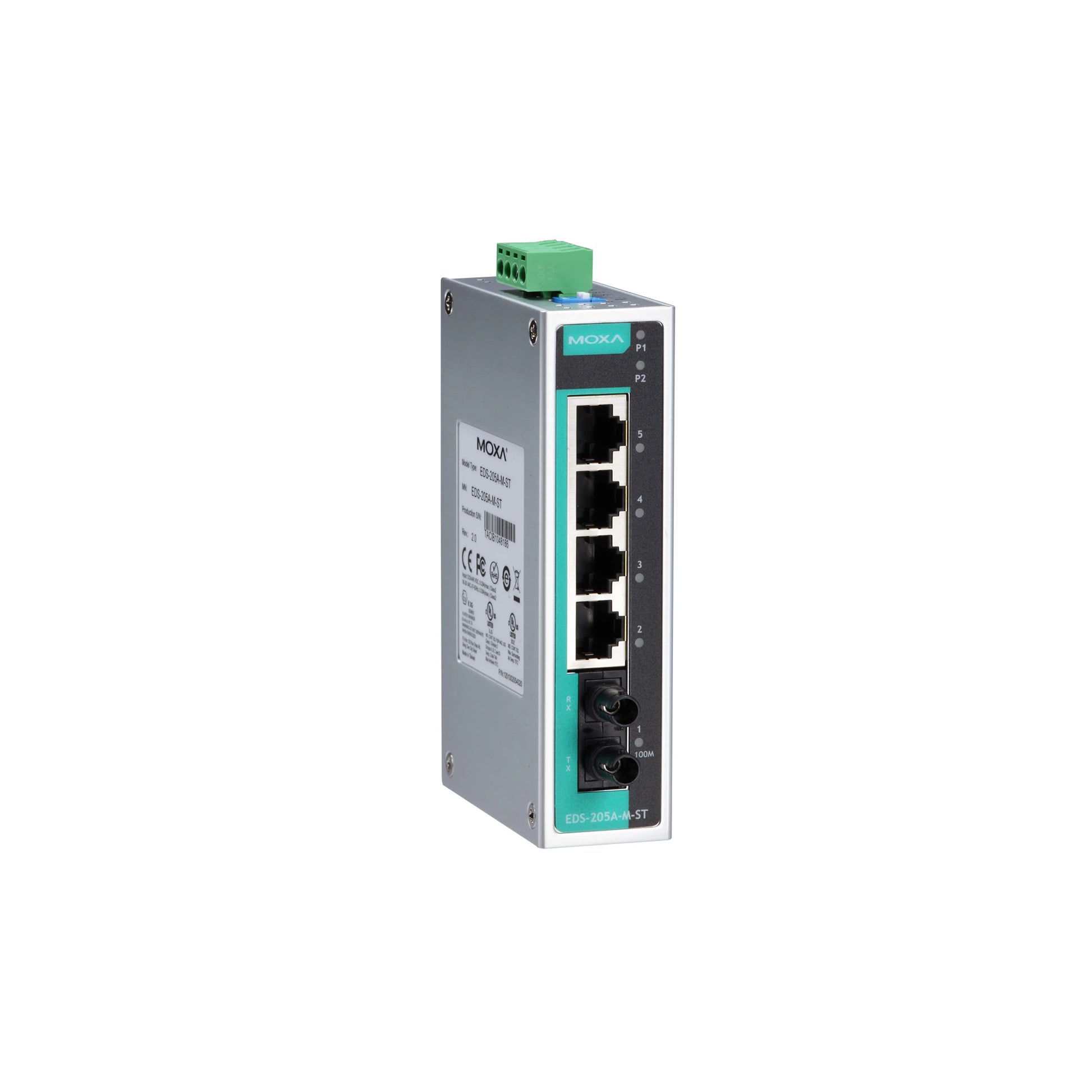

MOXA EDS-205A-M-ST Unmanaged Ethernet Switch

MOXA EDS-205A-M-ST Unmanaged Ethernet Switch
$403.00 CAD
$403.00 CAD
Special Offer Out of Stock
We have 4 in stock

Features and Benefits

  • 4 x 10/100Mbps T(x) ports
  • 1 x 100BaseFX port (Multi-mode ST)
  • IEEE802.3/802.3u/802.3x support
  • 5 KM Data transmission typical distance on fiber
  • DIN-rail and Wall mounting
  • IP30-rated aluminum housing
  • 12 to 48 VDC Redundant dual power inputs
  • -10 to 60°C operating temperature
View full details

Description

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.
The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Data sheet

Specification

Interface
Number of ports : 5 Ports
10/100Mb RJ45 (Megabit) Ports : 4 Ports
100Mb Fiber optic multi mode (Megabit) Ports : 1 Port (ST connector)

LED Indicators
LED Per Port : Yes

Power Requirements
Input Current : 0.1 A @ 24 VDC
Input Voltage : 12/24/48 VDC
Operating Voltage : 9.6 to 60 VDC

General
Fan / Fanless : Fanless
MTBF : 3,316,504 hrs

Switch specifications
Network working layers : Layer 1
Switch type : Unmanaged

Physical Characteristics
Dimensions : 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Housing : Aluminium
Installation : DIN-rail mounting, Wall mounting
Operating Temperature : -10 to 60°C (14 to 140°F)
Operation Humidity : 5 to 95% (non-condensing)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Weight : 175 g (0.39 lb)
