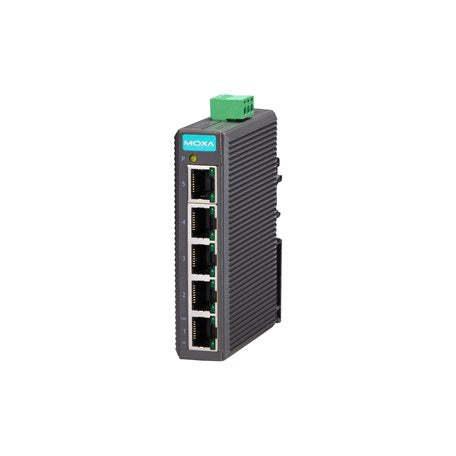

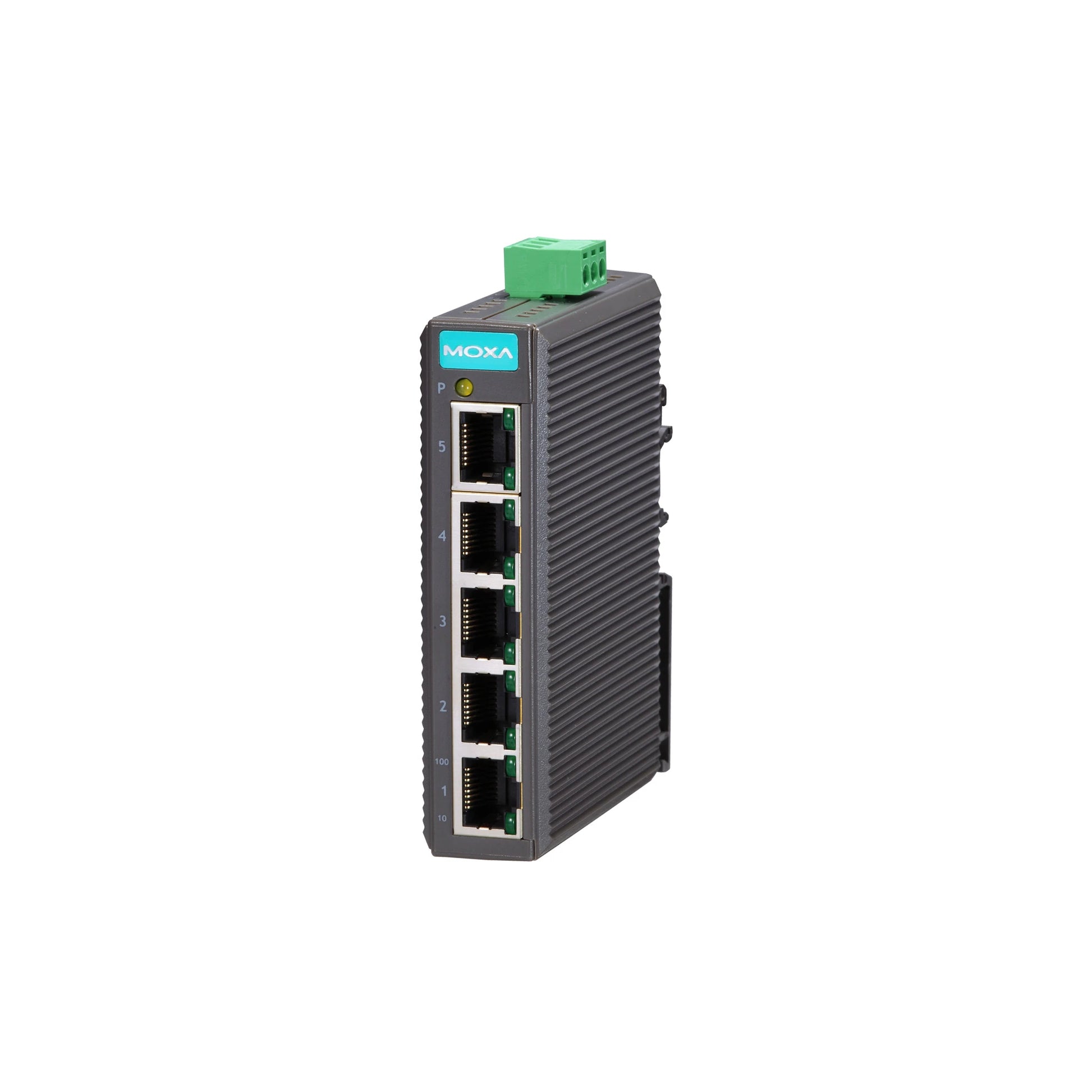

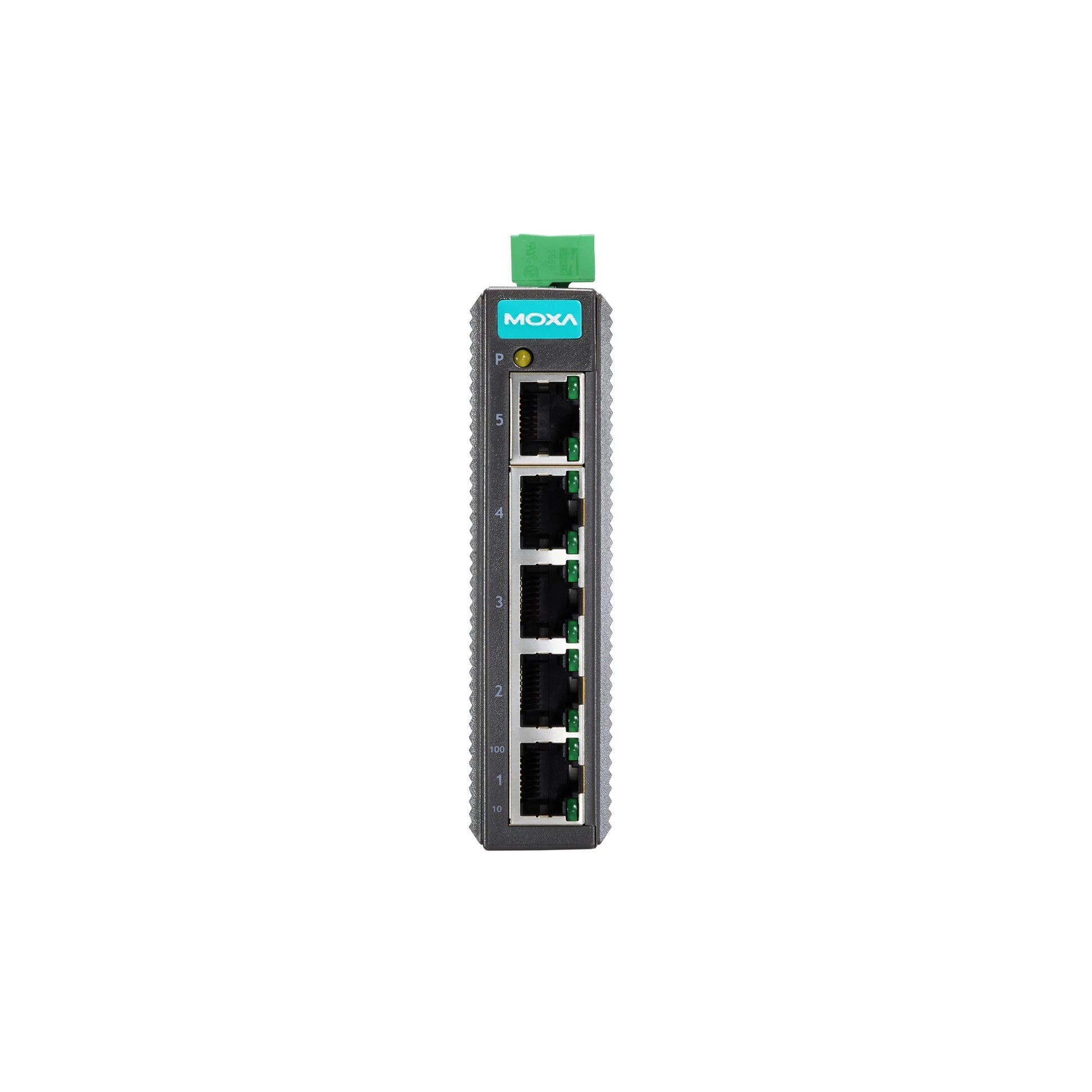

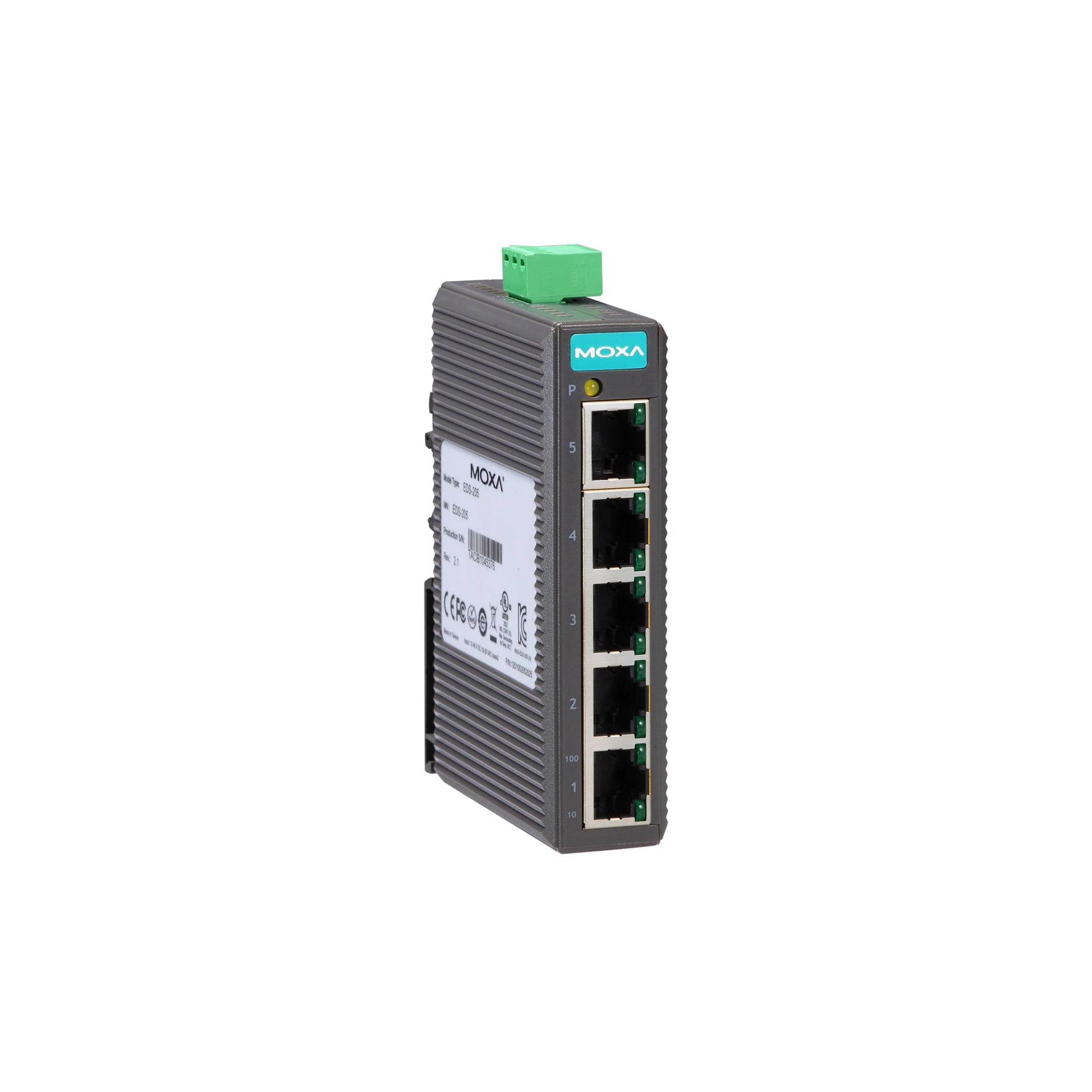

MOXA EDS-205 Unmanaged Ethernet Switch

MOXA EDS-205 Unmanaged Ethernet Switch
$167.00 CAD
$167.00 CAD
Special Offer Out of Stock
We have 15 in stock

Features and Benefits

  • 5 x 10/100Mbps T(x) ports
  • IEEE802.3/802.3u/802.3x support
  • DIN-rail mounting ability
  • IP30-rated plastic housing
  • 24 VDC input power range
  • -10 to 60°C operating temperature
View full details

Description

The EDS-205 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.

You can also find the EDS-205A, EDS-205A-M-SC, EDS-205A-S-SC, EDS-205A-T models in the EDS-205A series.

Data sheet

Specification

Interface
Number of ports : 5 Ports
10/100Mb RJ45 (Megabit) Ports : 5 Ports

LED Indicators
LED Per Port : Yes

Power Requirements
Input Current : 0.11 A @ 24 VDC
Input Voltage : 24 VDC
Operating Voltage : 12 to 48 VDC

General
Fan / Fanless : Fanless
MTBF : 3,915,945 hrs

Switch specifications
Network working layers : Layer 1
Switch type : Unmanaged

Physical Characteristics
Dimensions : 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)
Housing : Plastic
Installation : DIN-rail mounting
Operating Temperature : -10 to 60°C (14 to 140°F)
Operation Humidity : 5 to 95% (non-condensing)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Weight : 135 g (0.30 lb)
