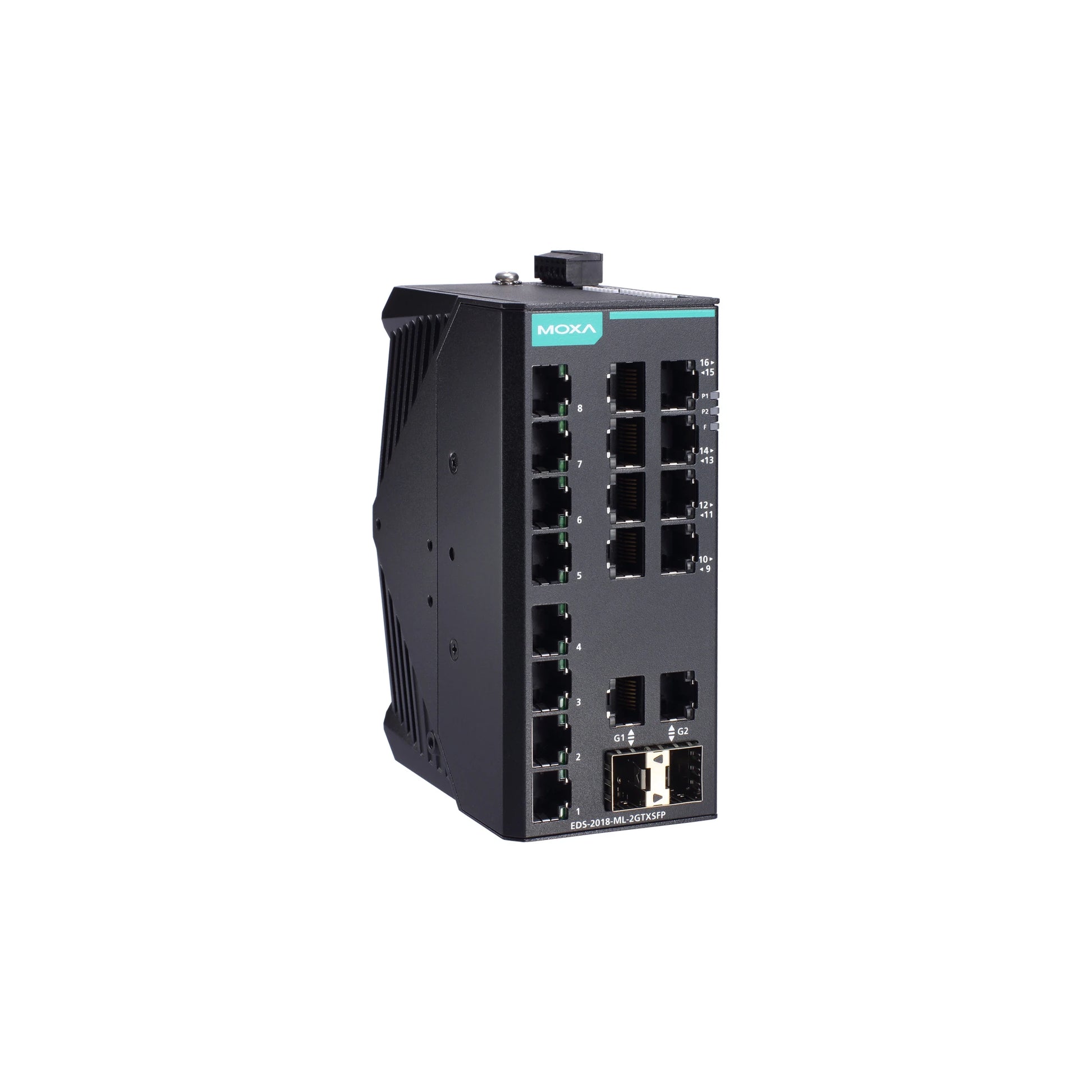

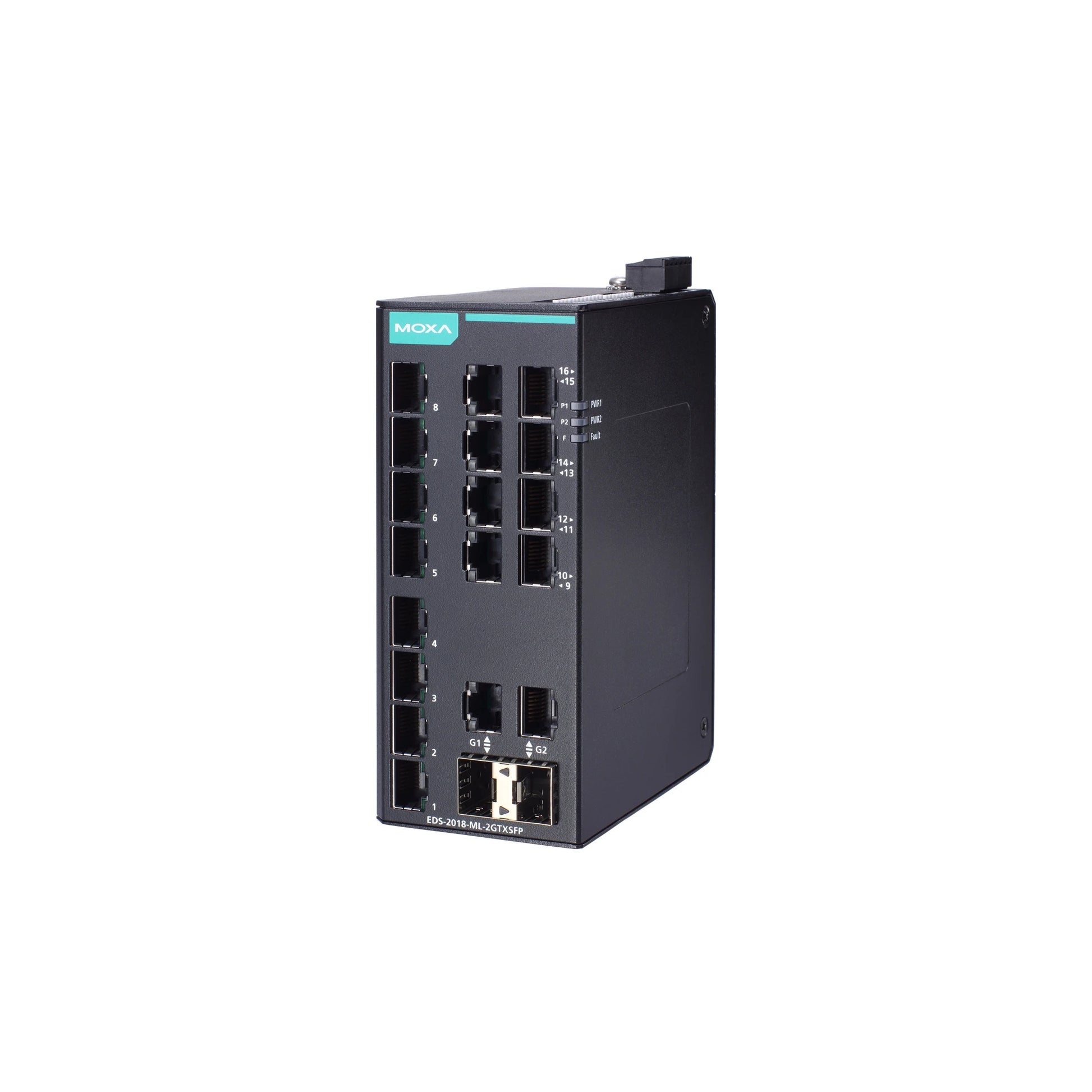

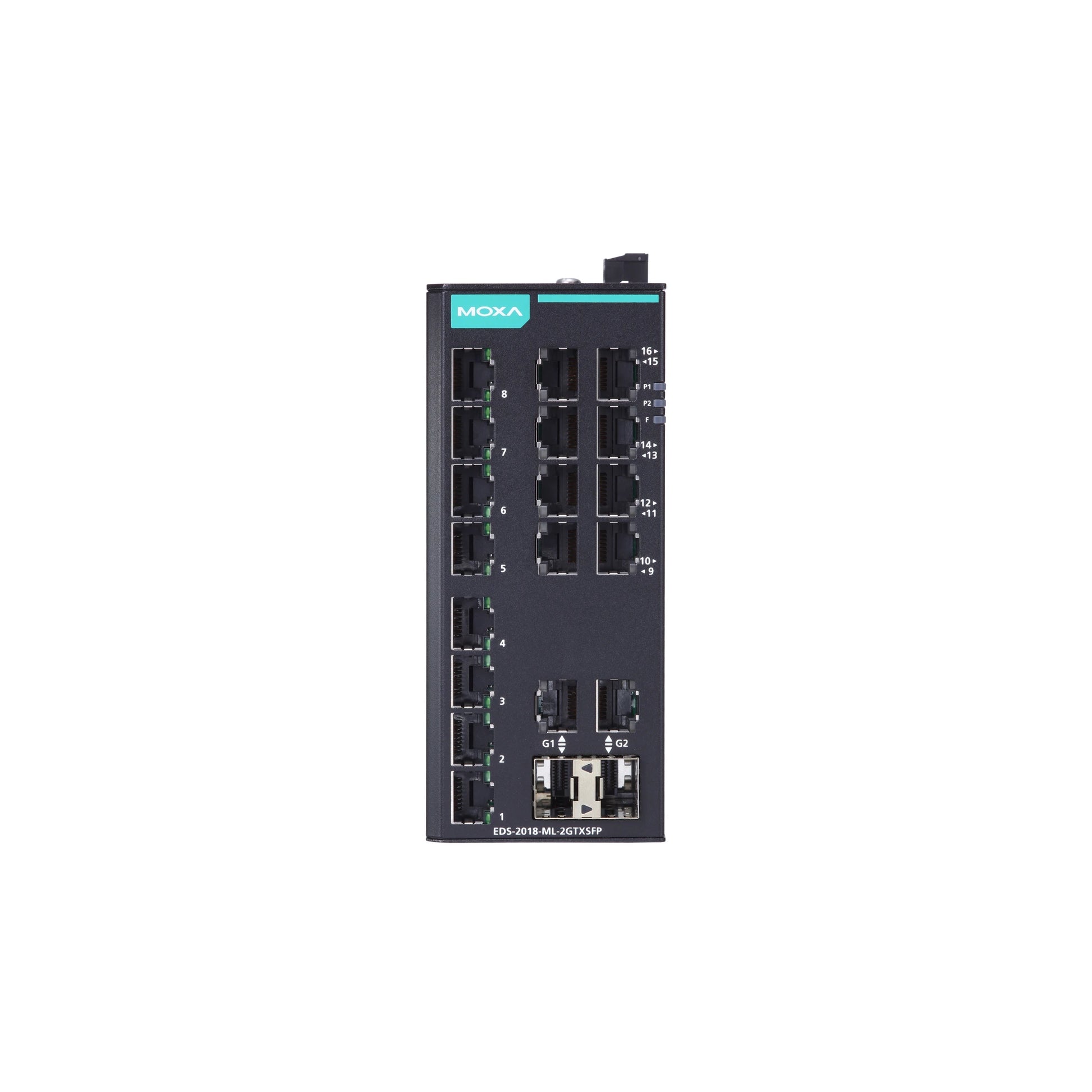

MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switch

MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switch
$889.00 CAD
$889.00 CAD
Special Offer Out of Stock
We have 1 in stock

Features and Benefits

  • 16 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP+)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • Redundant dual 12/24/48 VDC power inputs
  • -10 to 60°C operating temperature range
View full details

Description

The EDS-2018-ML series of industrial Ethernet switches have sixteen 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2018-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and port break alarm function with DIP switches on the outer panel.


The EDS-2018-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2018-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2018-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

You can also find the EDS-2018-ML-2GTXSFP model in the EDS-2018-ML Series.

Data sheet

Specification

Interface
Number of ports : 18 Ports
10/100Mb RJ45 (Megabit) Ports : 16 Ports
Other ports : 2 x Combo Ports, 1 x Alarm Contact Channel

LED Indicators
LED Per Port : Yes

Power Requirements
Input Current : 0.277 A @ 24 VDC
Power Input Plugin ( Redundant ) : Yes
Input Voltage : 12/24/48 VDC
Operating Voltage : 9.6 to 60 VDC

General
Fan / Fanless : Fanless
MTBF : 1,776,132 hrs

Switch specifications
Network working layers : Layer 1
Switch type : Unmanaged

Physical Characteristics
Dimensions : 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
Housing : Metal
Installation : DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature : -10 to 60°C (14 to 140°F)
Operation Humidity : 5 to 95% (non-condensing)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Weight : 683 g (1.51 lb)
