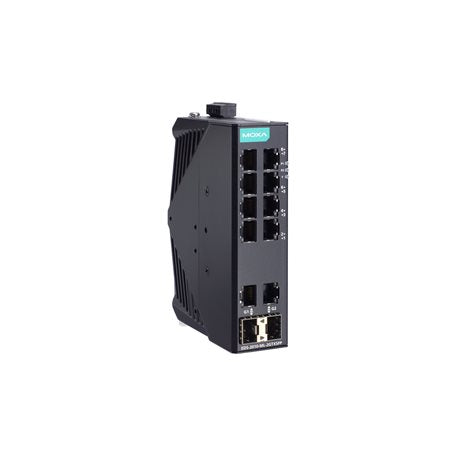

MOXA EDS-2010-ML-2GTXSFP UNMANAGED ETHERNET SWITCH

MOXA EDS-2010-ML-2GTXSFP UNMANAGED ETHERNET SWITCH

$568.00 CAD
$568.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100BaseT(X) (RJ45 connector) and 2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP+)
  • QoS supported to process of critical data in heavy traffic
  • Relay output warning for power failure and port break alarm
  • IP30-rated metal housing
  • -10 to 60°C operating temperature
View full details

Description

The EDS-2010-ML series of industrial Ethernet switches have eight 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2010-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.


The EDS-2010-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2010-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2010-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.


You can also find the EDS-2010-ML-2GTXSFP-T models in the EDS-2010-ML Series.

Data sheet

Specification

Number of ports: 10 Ports
10/100Mb RJ45 (Megabit) Ports: 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: No
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
M12 port: No
Serial port: No
USB: No
Other ports: 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
Backup: No
LED Per Port: Yes
Maximum power consumption: Not specified
Power Consumption (Output Adapter): 9.6 to 60 VDC
Power Input Plugin (Redundant): 12/24/48 VDC, Redundant dual inputs
Fan / Fanless: Fanless
MTBF: 4,814,369 hrs
Most forwarding speed: Not specified
Network working layers: Layer 1
Switch type: Unmanaged
Port Aggregation: Not specified
Dimensions: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
Housing: Metal
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5 to 95% (non-condensing)
Vibration, Shock, Safety, Freefall, EMS, EMC, EMI
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
Protocols and management standards: No
Hardware installation guide: Yes
Power adapter: No
Power cable: No
