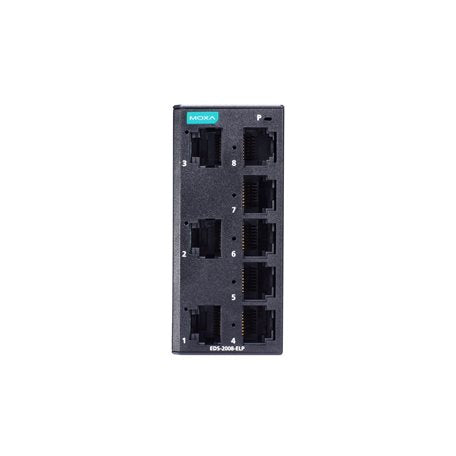

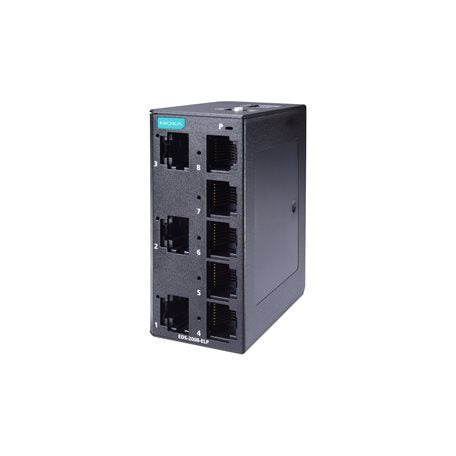

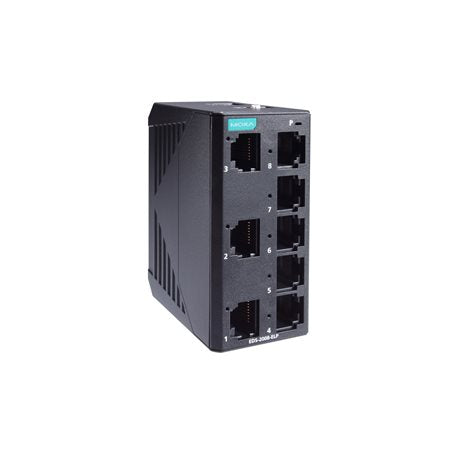

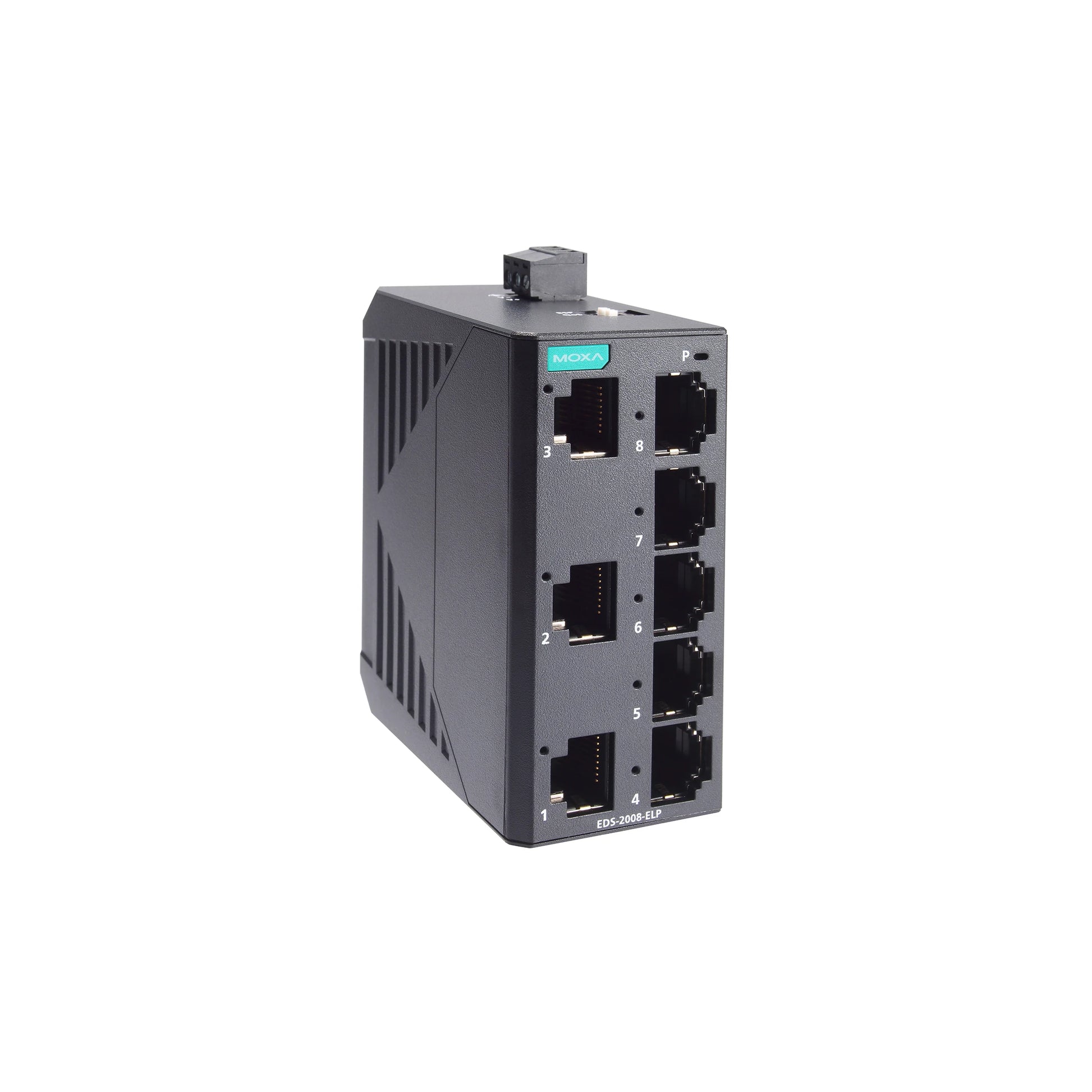

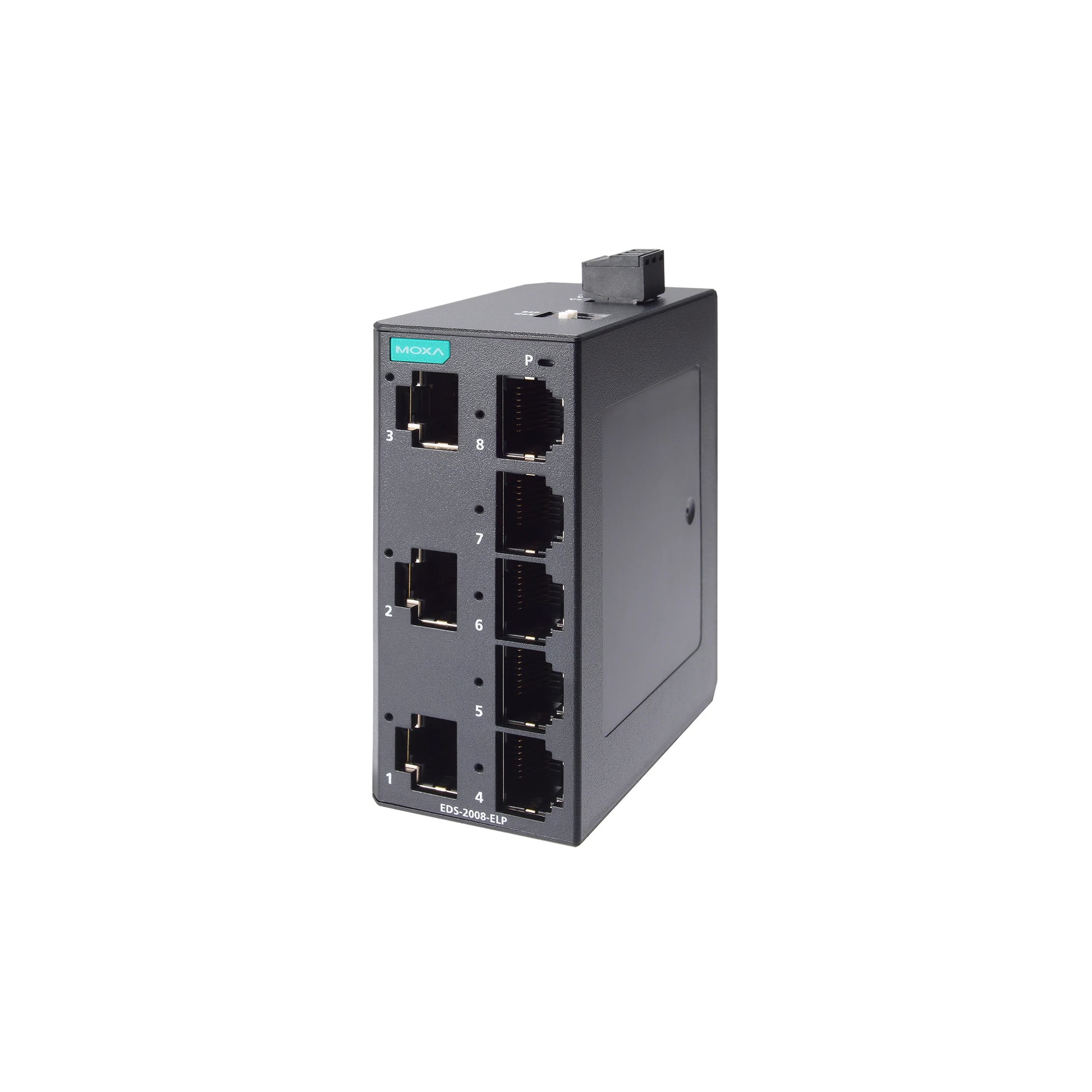

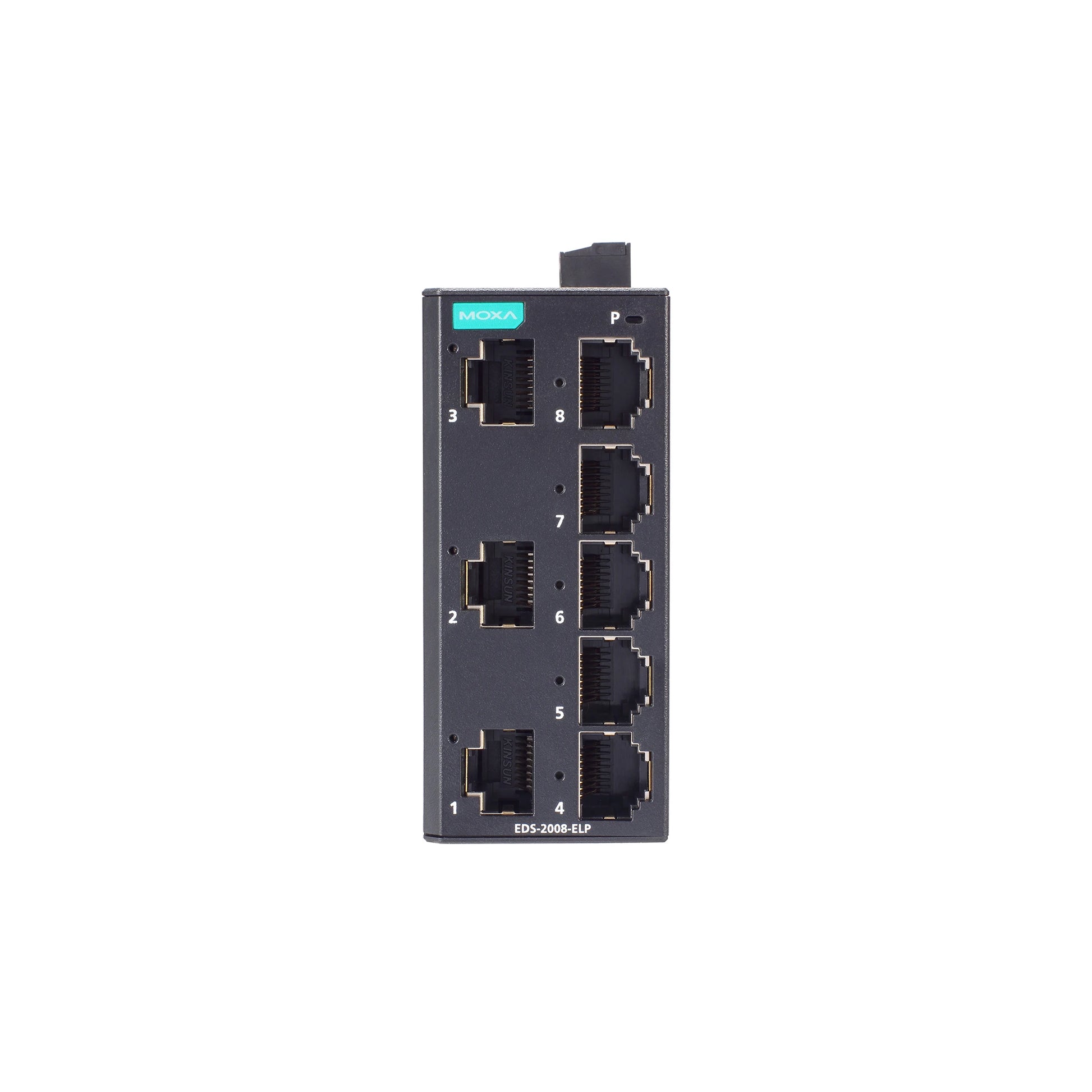

MOXA EDS-2008-ELP UNMANAGED ETHERNET SWITCH

MOXA EDS-2008-ELP UNMANAGED ETHERNET SWITCH

$173.00 CAD
$173.00 CAD
Sale Sold out
We have 17 in stock

Features and Benefits

  • 8 x 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -10 to 60°C operating temperature

View full details

Description

The EDS-2008-ELP series of industrial Ethernet switches have eight 10/100M copper ports and plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.

Data sheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: No
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
M12 port: No
Serial port: No
USB: No
Backup: No
LED Per Port: Yes
Power Consumption (Output Adapter): 9.6-60 VDC
Power Input Plugin (Redundant): 12/24/48 VDC
Fan/Fanless: Fanless
MTBF: 3,472,660 hrs
Network working layers: Layer 1
Switch type: Unmanaged
Dimensions: 36x81x65 mm (1.4x3.19x2.56 in)
Housing: Plastic
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5-95% (non-condensing)
Standards and Certifications: Vibration, Shock, Freefall, Safety, EMS, EMC, EMI
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
Protocols and management standards: No
Hardware installation guide: Yes
Power adapter: No
Power cable: No
