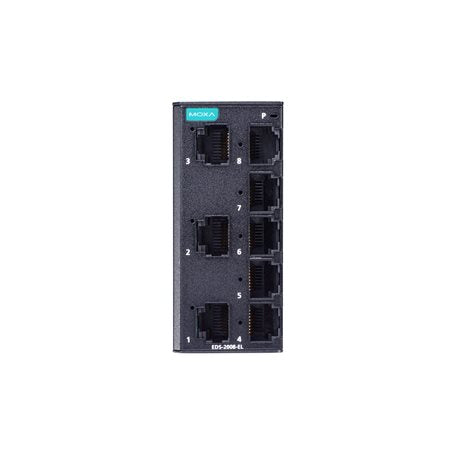

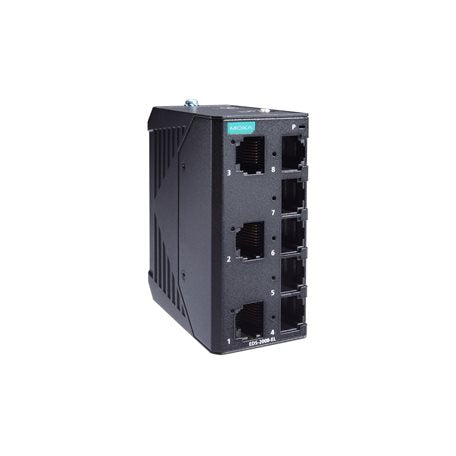

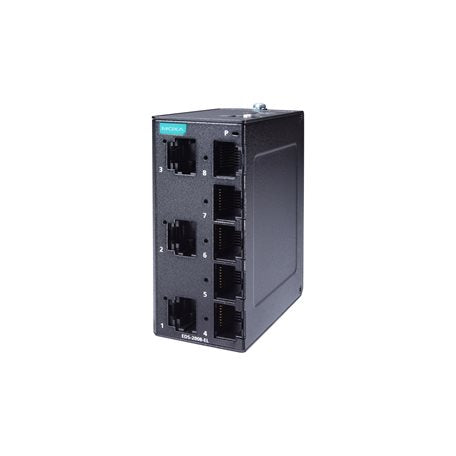

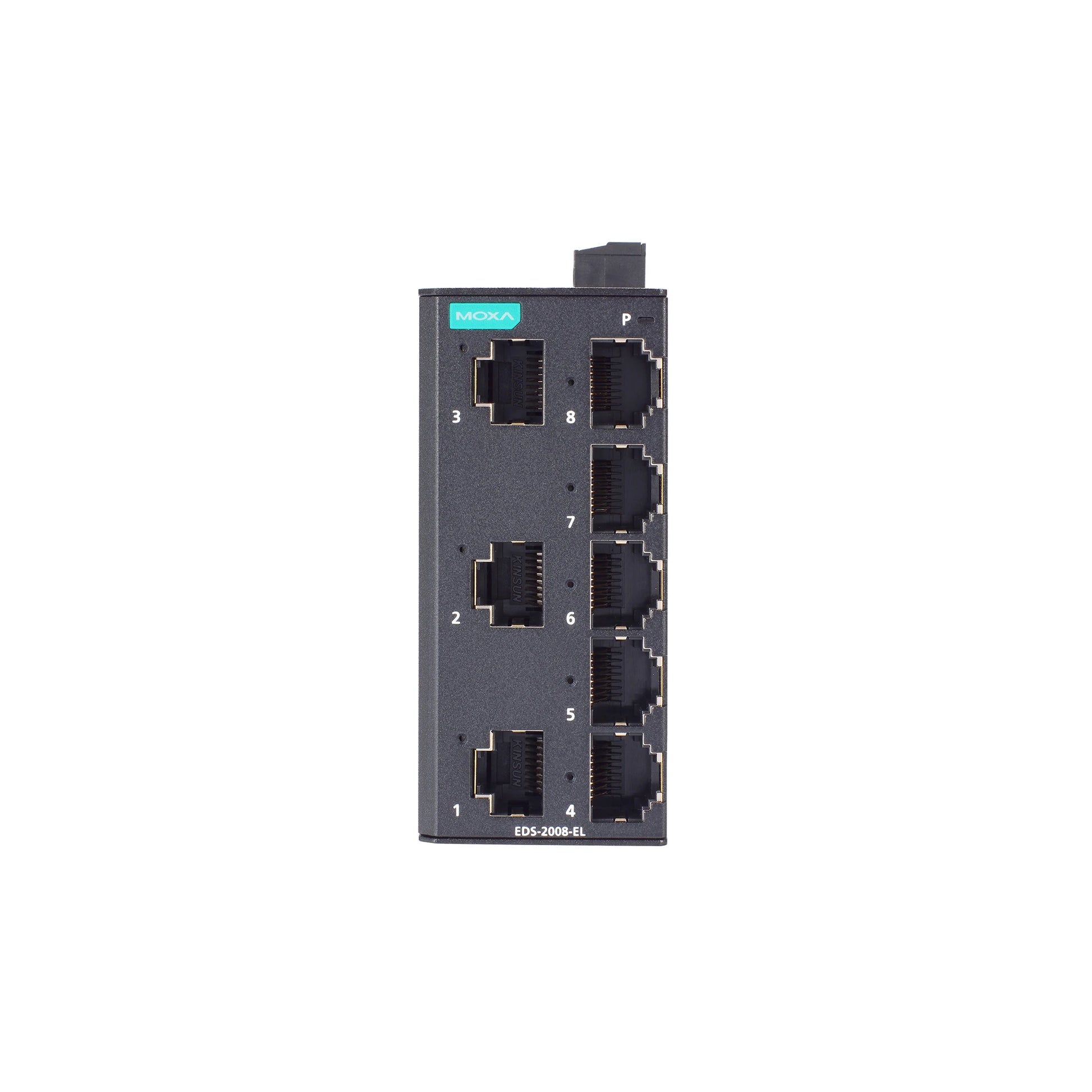

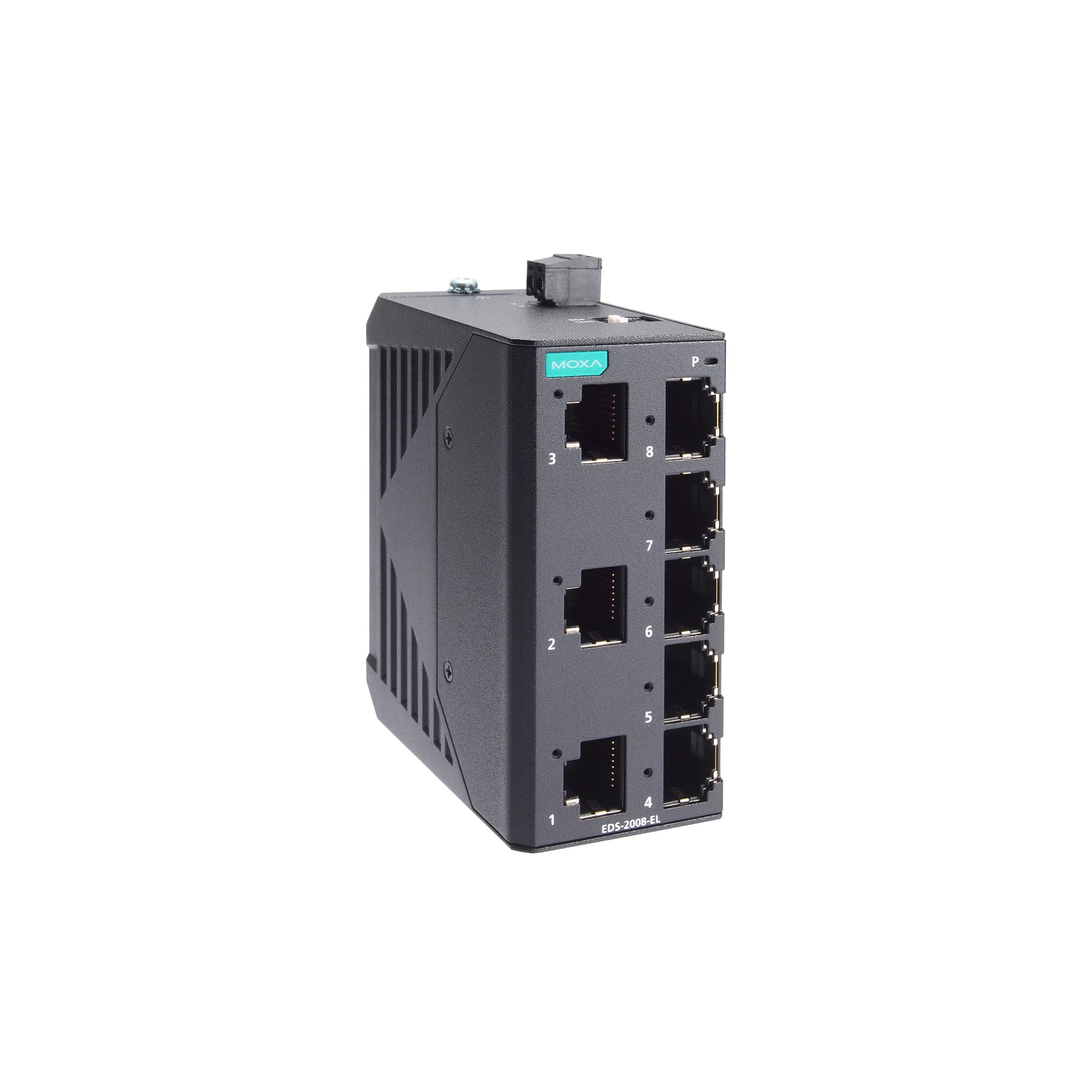

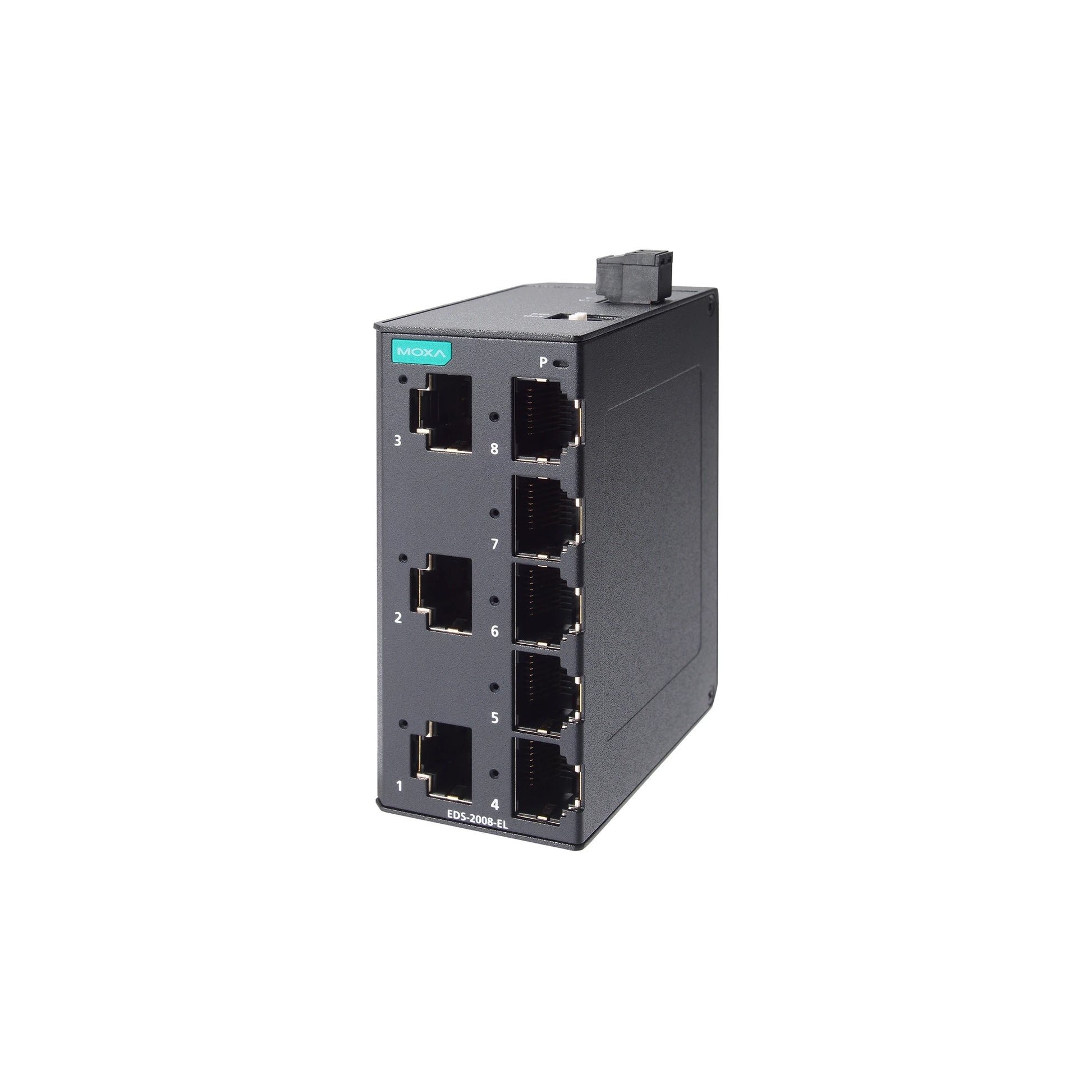

MOXA EDS-2008-EL-T UNMANAGED ETHERNET SWITCH

MOXA EDS-2008-EL-T UNMANAGED ETHERNET SWITCH

$270.00 CAD
$270.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)

View full details

Description

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

You can also find the EDS-2008-EL-M-SC and EDS-2008-EL-M-ST models in the EDS-2008-EL Series.

Data sheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: 8 Ports
Power Consumption: 9.6 to 60 VDC
Power Input Plugin: 12/24/48 VDC
MTBF: 3,472,660 hrs
Switch type: Unmanaged
Dimensions: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
Housing: Metal
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Vibration, Shock, Freefall, Safety, EMS, EMC, EMI
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
