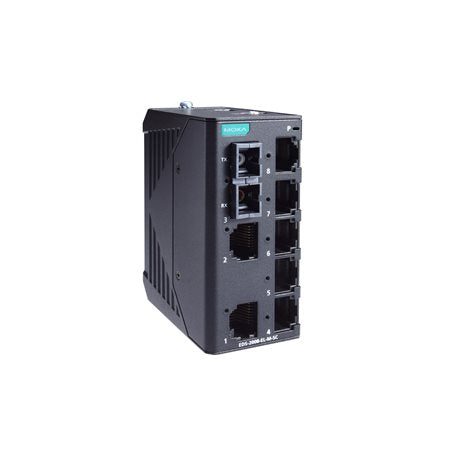

MOXA EDS-2008-EL-M-SC-T UNMANAGED ETHERNET SWITCH

MOXA EDS-2008-EL-M-SC-T UNMANAGED ETHERNET SWITCH

$391.00 CAD
$391.00 CAD
Sale Sold out

Features and Benefits

  • 7 x 10/100BaseT(X) (RJ45 connector)
  • 1 x 10/100BaseFX Ports (Multi-mode SC)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C operating temperature
View full details

Description

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.


The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

You can also find the EDS-2008-EL and EDS-2008-EL-M-ST models in the EDS-2008-EL Series.

Data sheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: 1 Port (SC)
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
M12 port: No
Serial port: No
USB: No
Backup: No
LED Per Port: Yes.
Maximum power consumption: Not specified
Power Consumption (Output Adapter): 9.6 to 60 VDC
Power Input Plugin (Redundant): 12/24/48 VDC
Fan / Fanless: Fanless
MTBF: 3,472,660 hrs
Most forwarding speed: Not specified
Network working layers: Layer 1
Switch type: Unmanaged
Port Aggregation: Not specified
Dimensions: 36 x 81 x 67.9 mm (1.4 x 3.19 x 2.67 in)
Housing: Metal
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Vibration, Shock, Freefall, Safety, EMS, EMC, EMI
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
Protocols and management standards: No
Hardware installation guide: Yes
Power adapter: No
Power cable: No
