Moxa

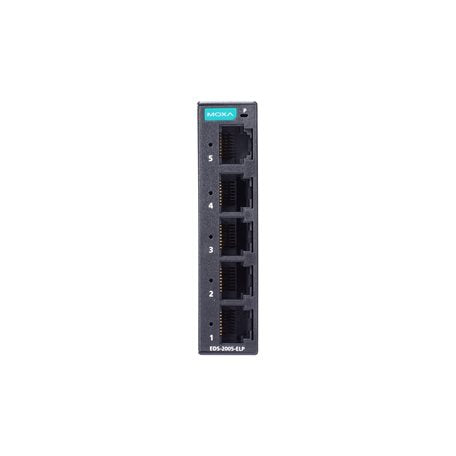

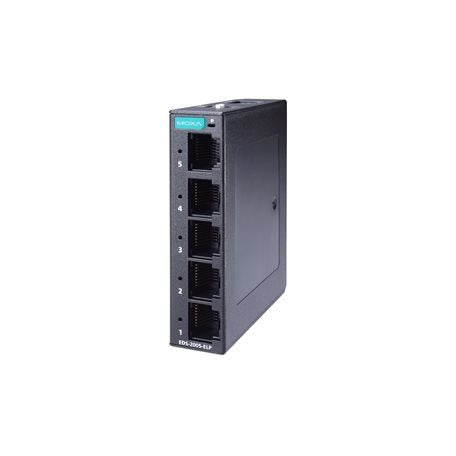

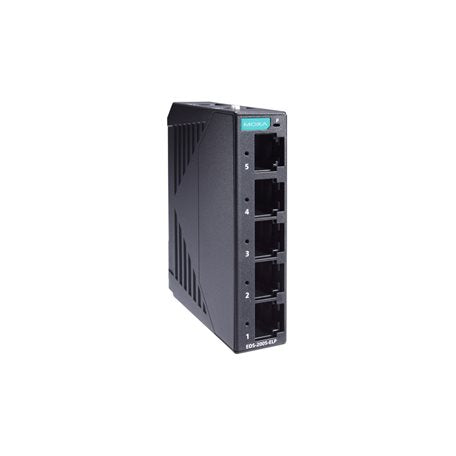

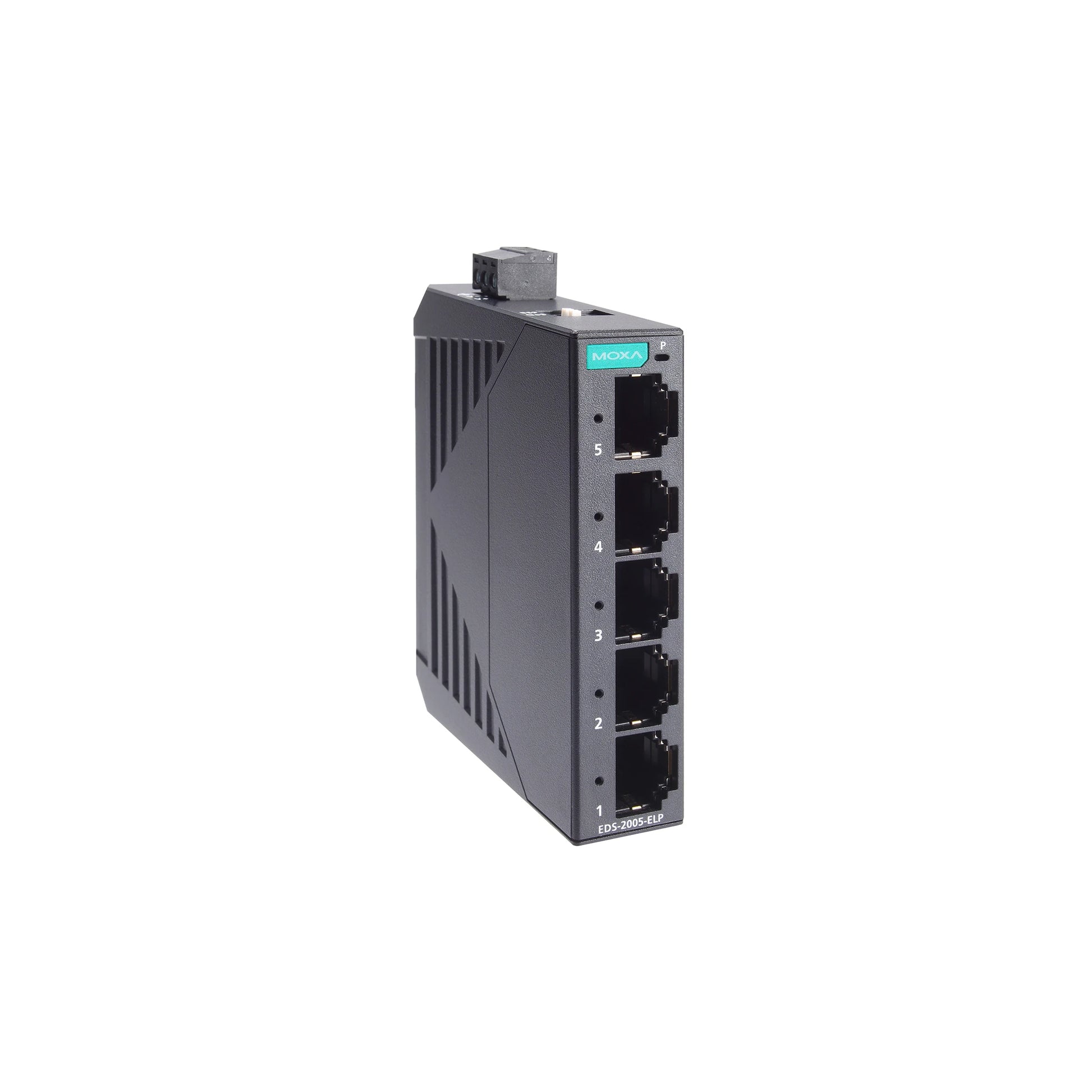

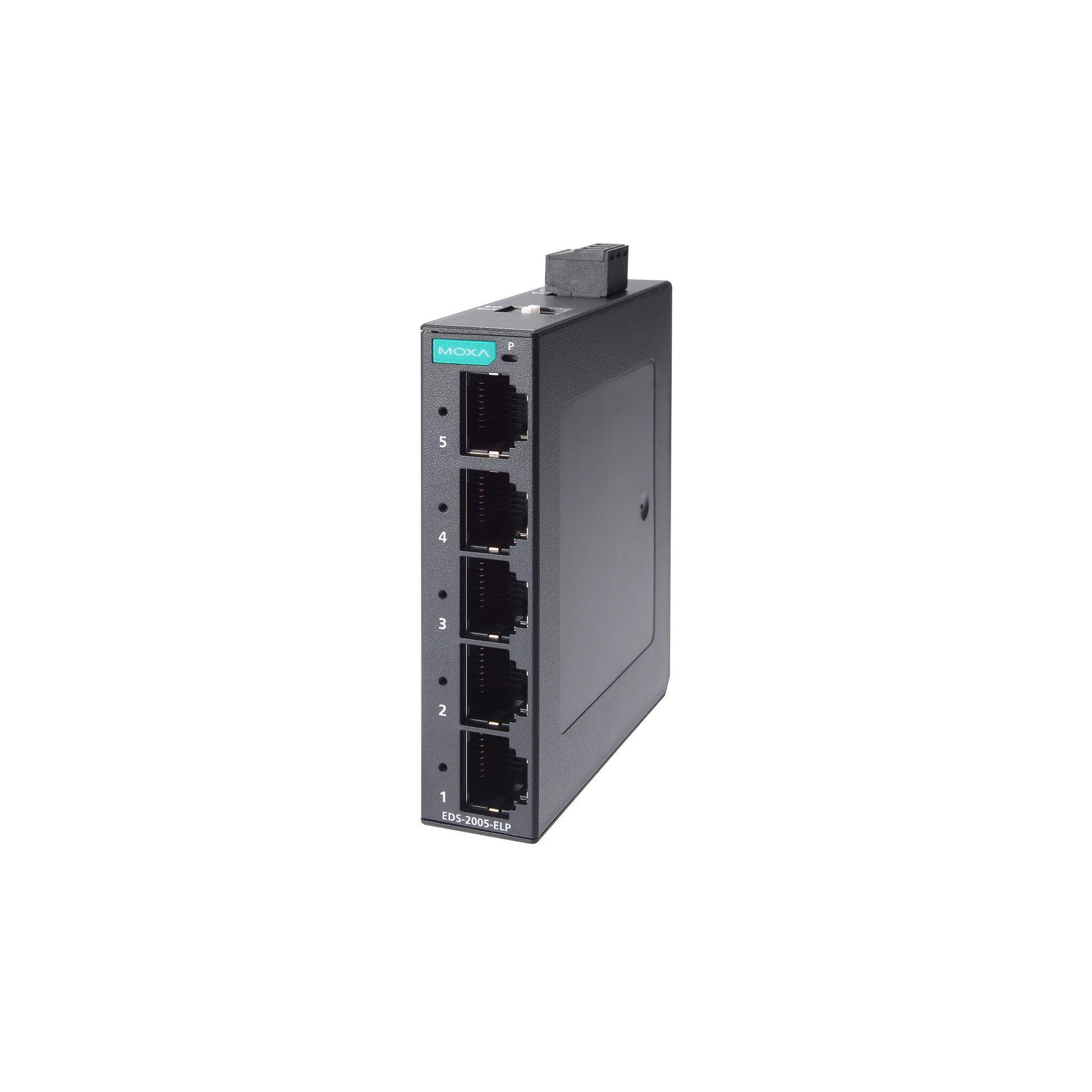

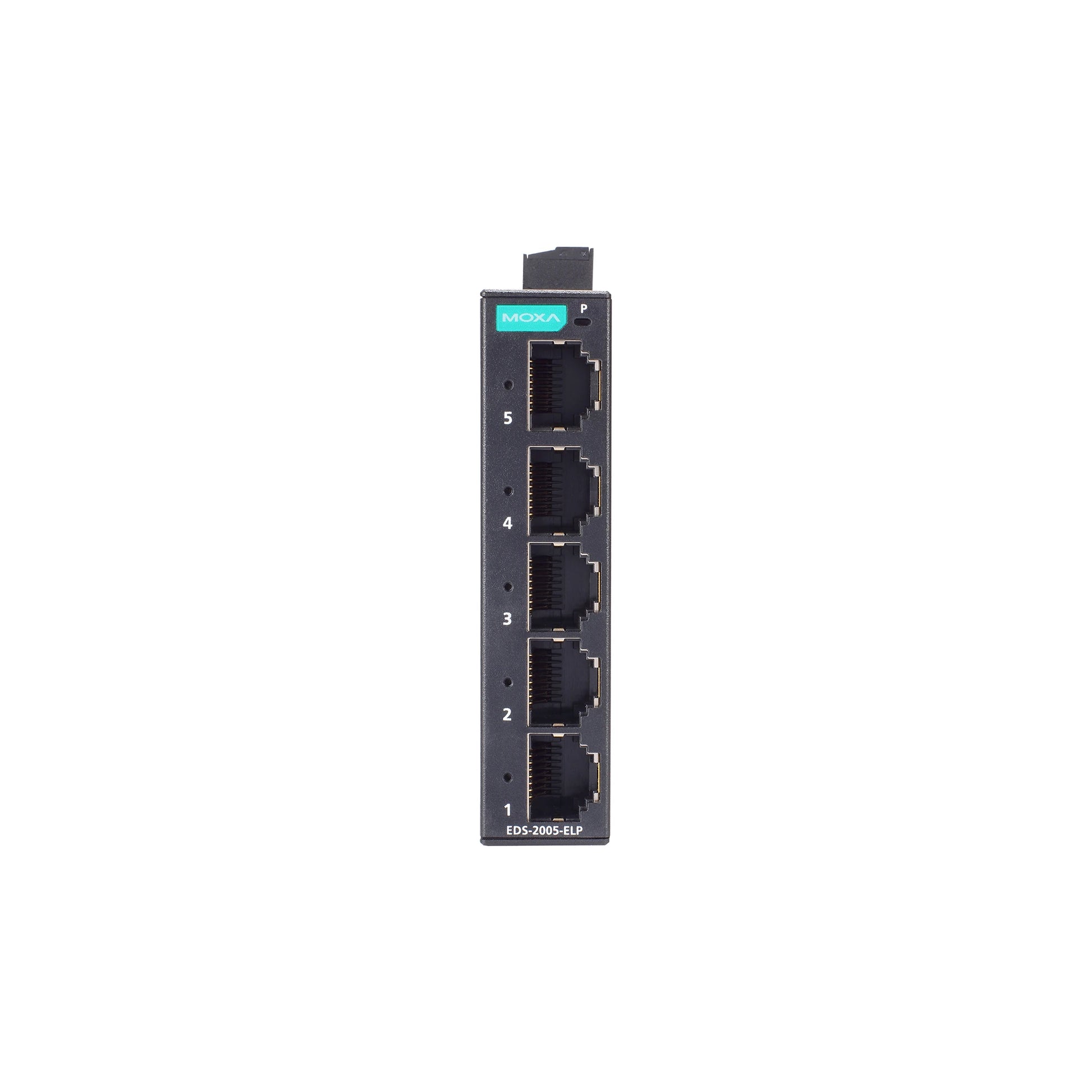

MOXA EDS-2005-ELP UNMANAGED ETHERNET SWITCH

MOXA EDS-2005-ELP UNMANAGED ETHERNET SWITCH

$113.00 CAD
$113.00 CAD
Sale Sold out
We have 4 in stock

Features and Benefits

  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated plastic housing
View full details

Description

The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C.

Data sheet

Specification

Number of ports: 5 Ports
10/100Mb RJ45 (Megabit) Ports: 5 Ports
Power Consumption: 9.6 to 60 VDC
Power Input Plugin: 12/24/48 VDC
MTBF: 4,814,369 hrs
Switch type: Unmanaged
Dimensions: 19 x 81 x 65 mm (0.74 x 3.19 x 2.56 in)
Housing: Plastic
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Vibration, Shock, Freefall, Safety, EMS, EMC, EMI
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
