Moxa

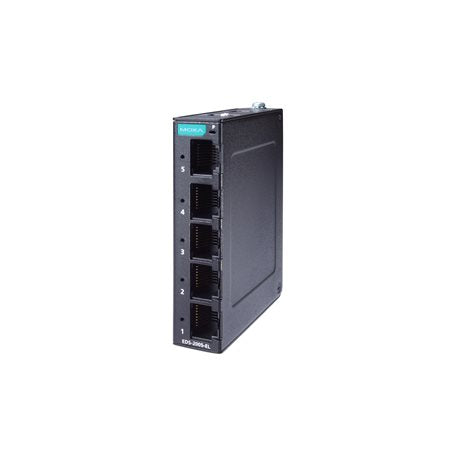

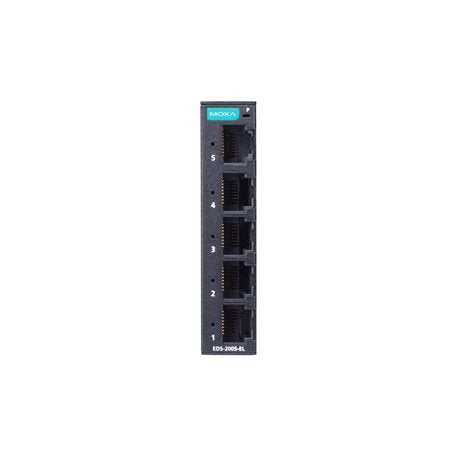

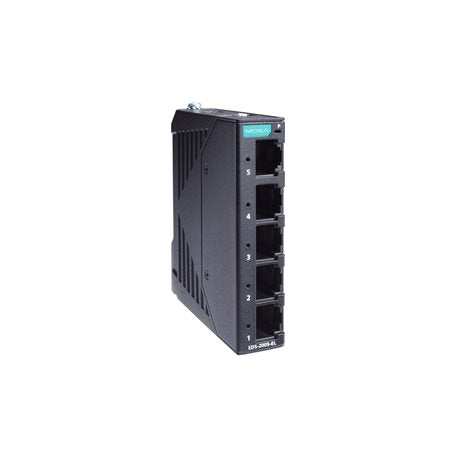

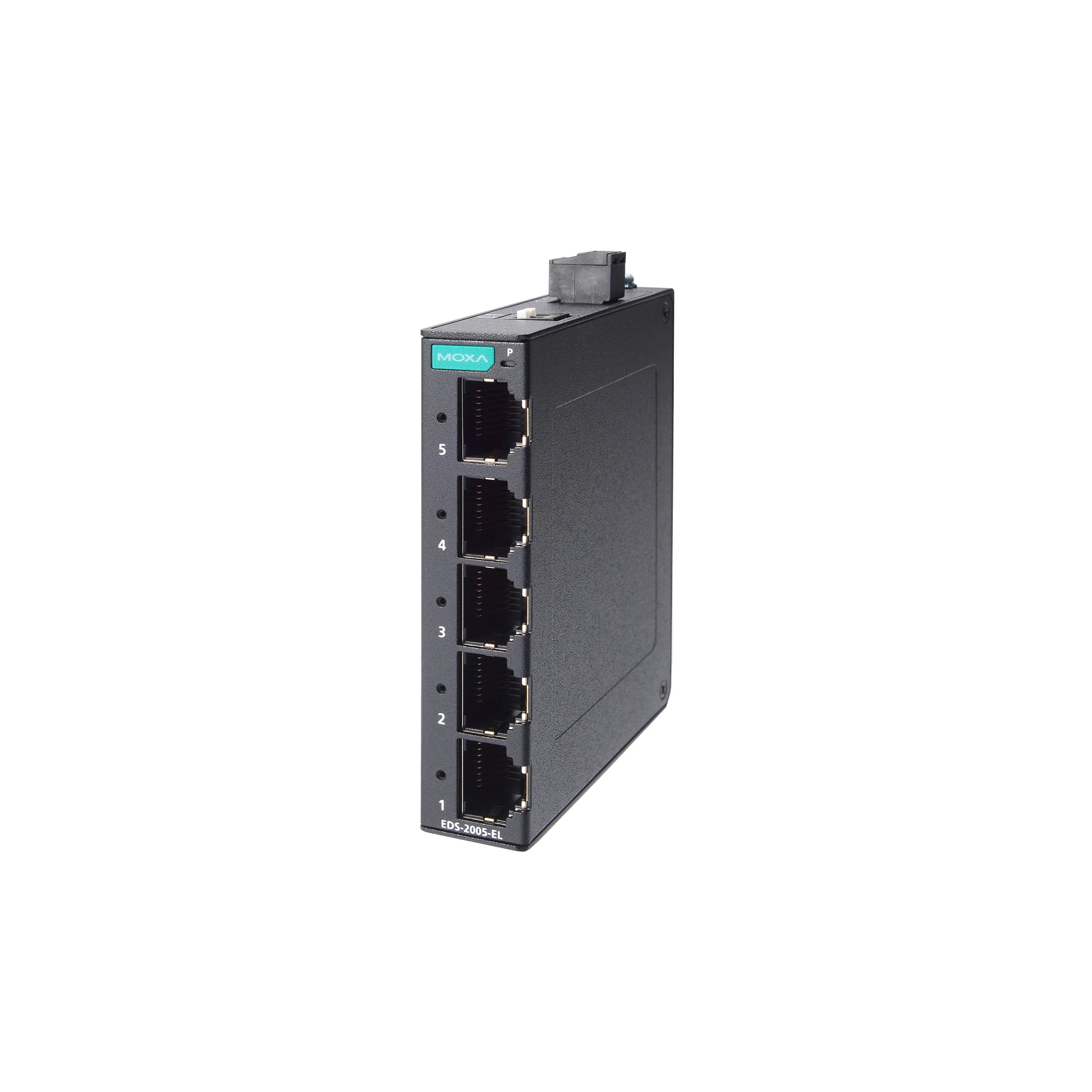

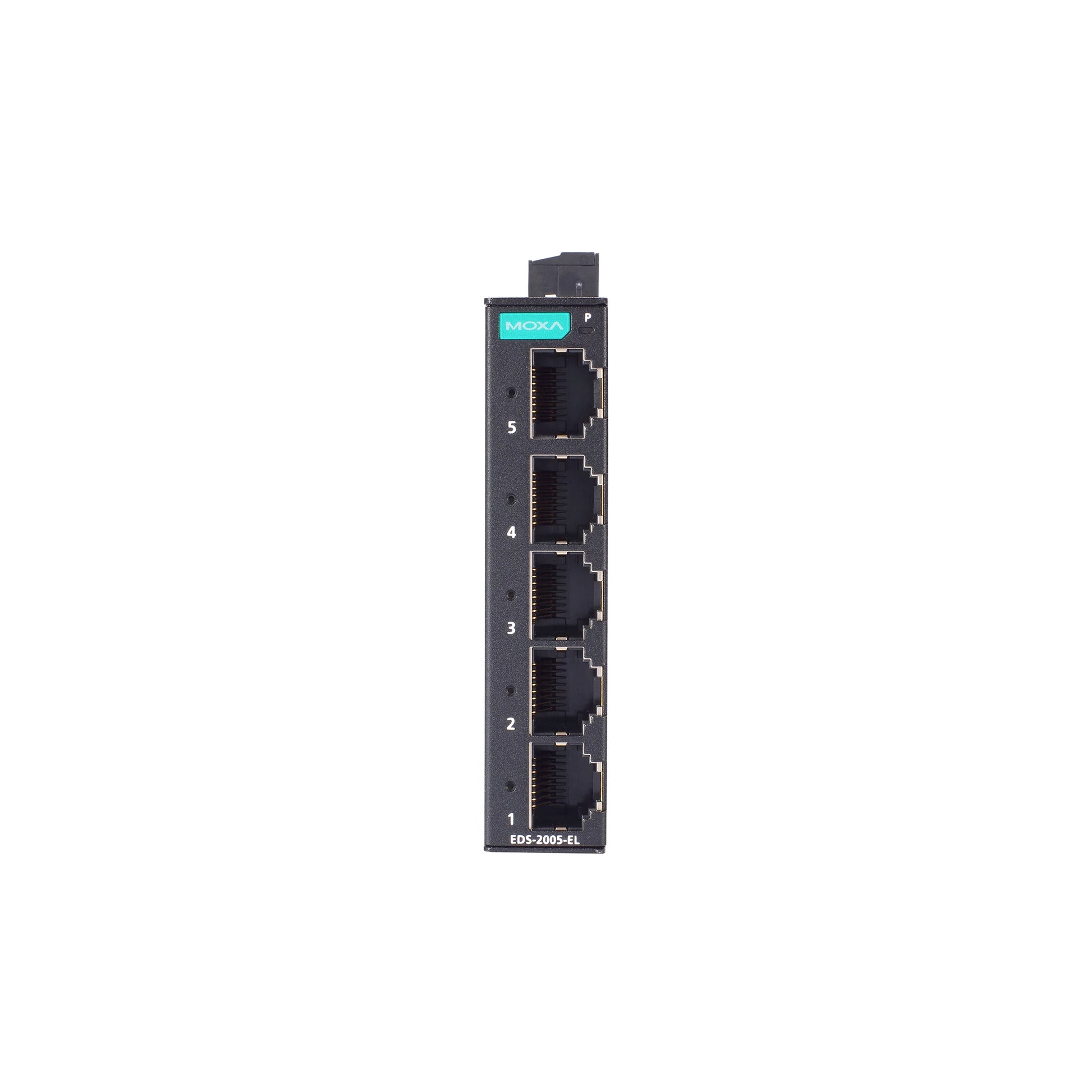

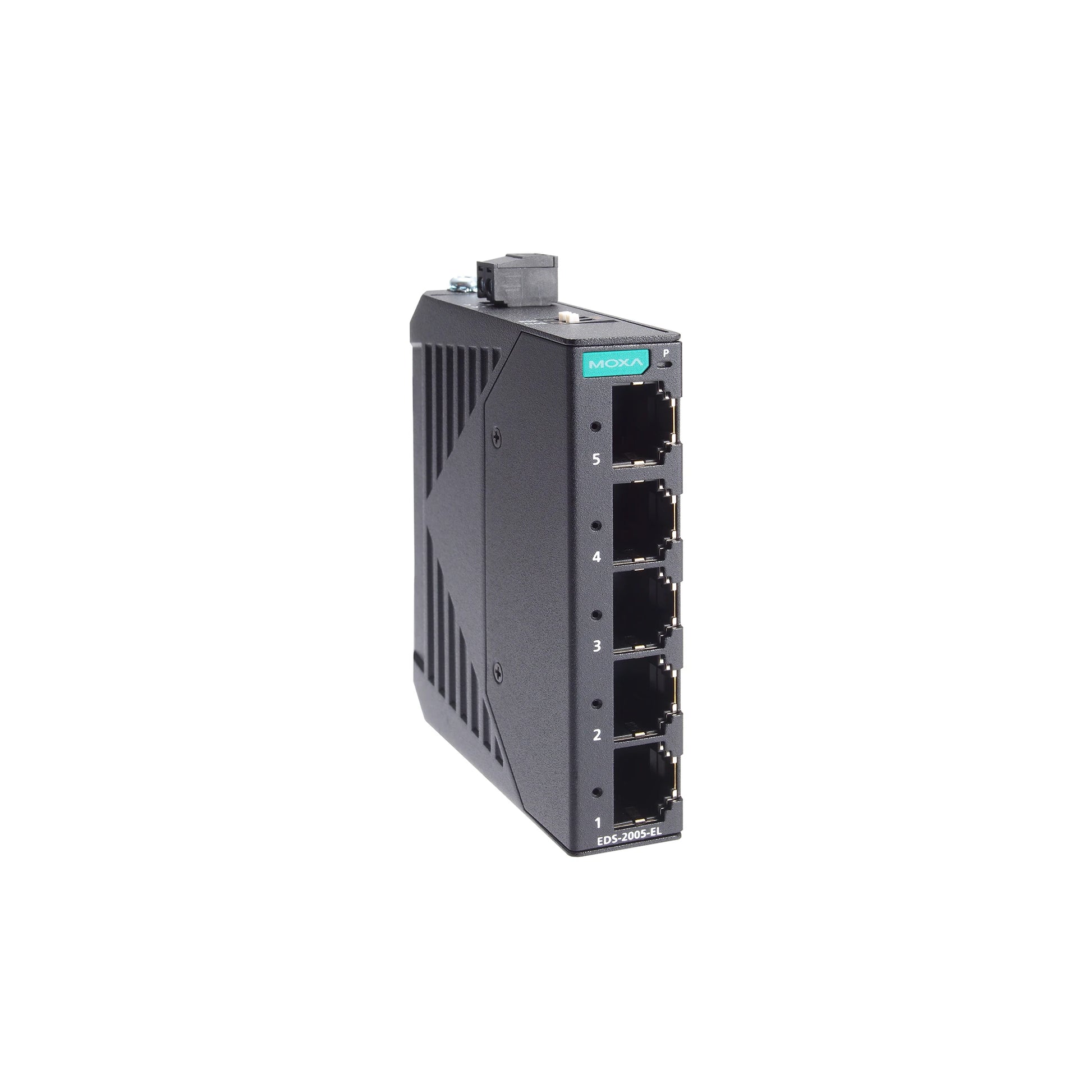

MOXA EDS-2005-EL-T UNMANAGED ETHERNET SWITCH

MOXA EDS-2005-EL-T UNMANAGED ETHERNET SWITCH

Regular price $195.00 CAD
Regular price Sale price $195.00 CAD
Sale Sold out
We have 2 in stock

Features and Benefits

  • 5 x 10/100Mbps T(x) ports
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature

View full details

Description

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Specification

Number of ports: 5 Ports
10/100Mb RJ45 (Megabit) Ports: 5 Ports
Power Consumption: 9.6 to 60 VDC
Switch type: Unmanaged
Dimensions: 18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in)
Housing: Metal
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Vibration, Shock, Freefall, Safety, EMS, EMC, EMI
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
