Features and Benefits

  • Firewall/NAT/VPN/Router all-in-one
  • Secure remote access tunnel with VPN
  • Stateful firewall protects critical assets
  • Inspect industrial protocols with PacketGuard technology
  • Easy network setup with Network Address Translation (NAT)
  • Dual WAN redundant interfaces through public networks
  • Support for VLANs in different interfaces
  • Security features based on IEC 62443/NERC CIP
View full details

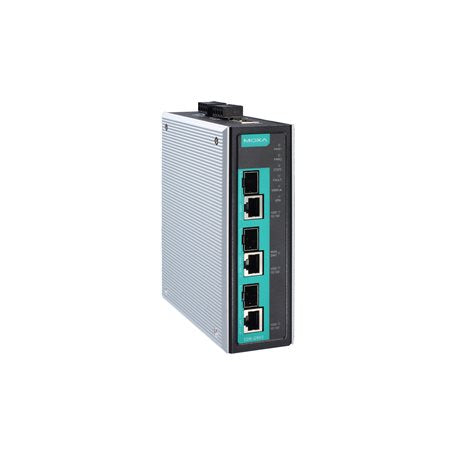

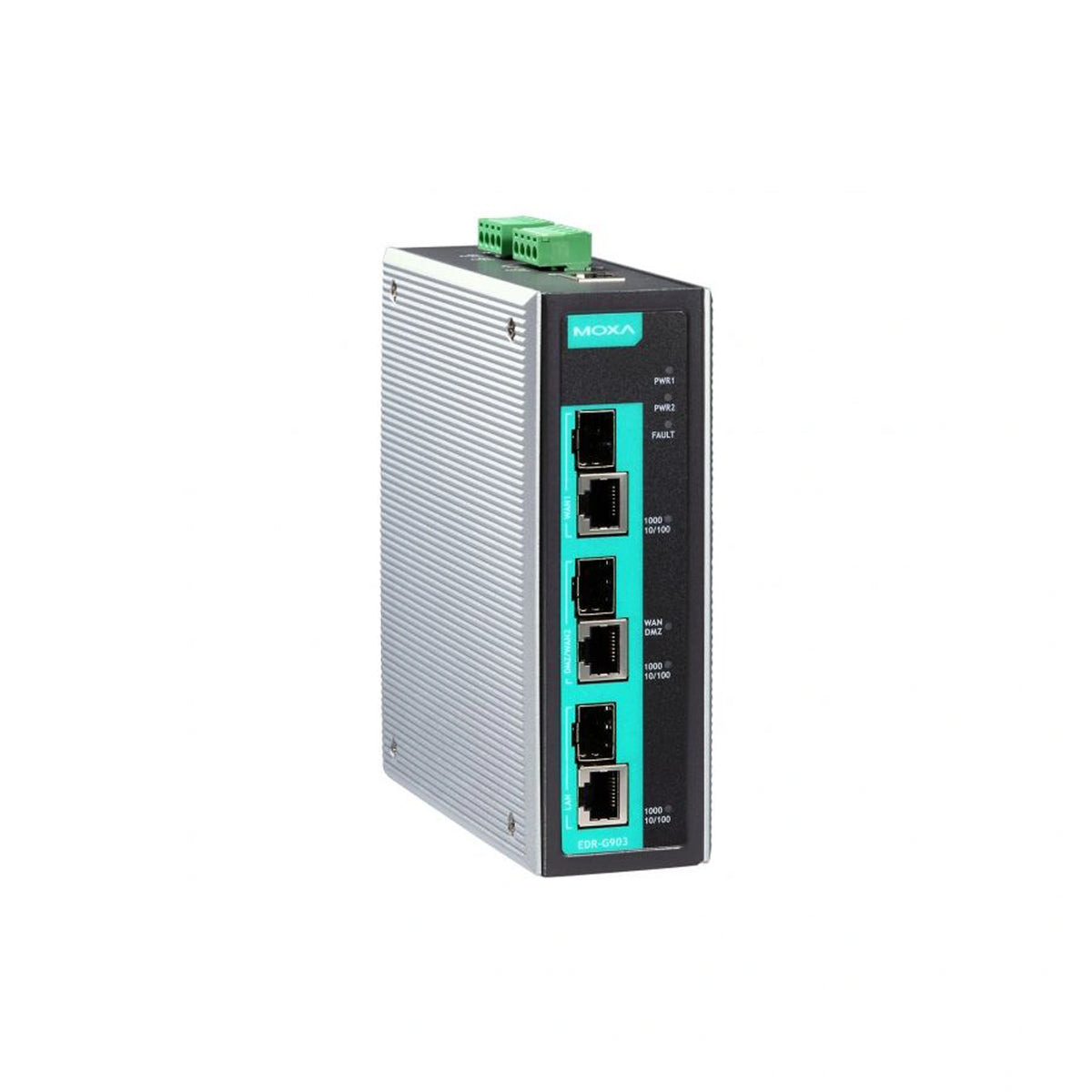

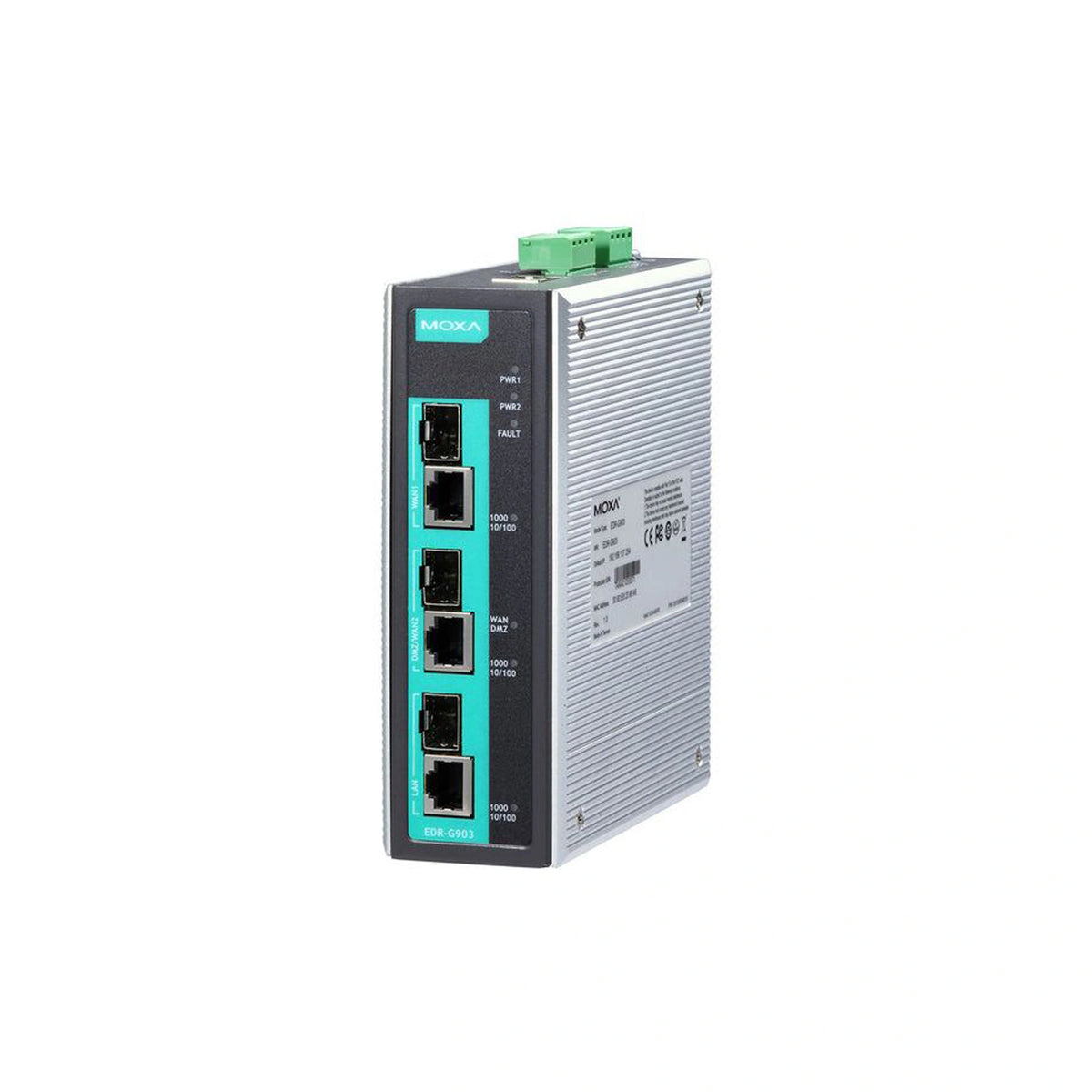

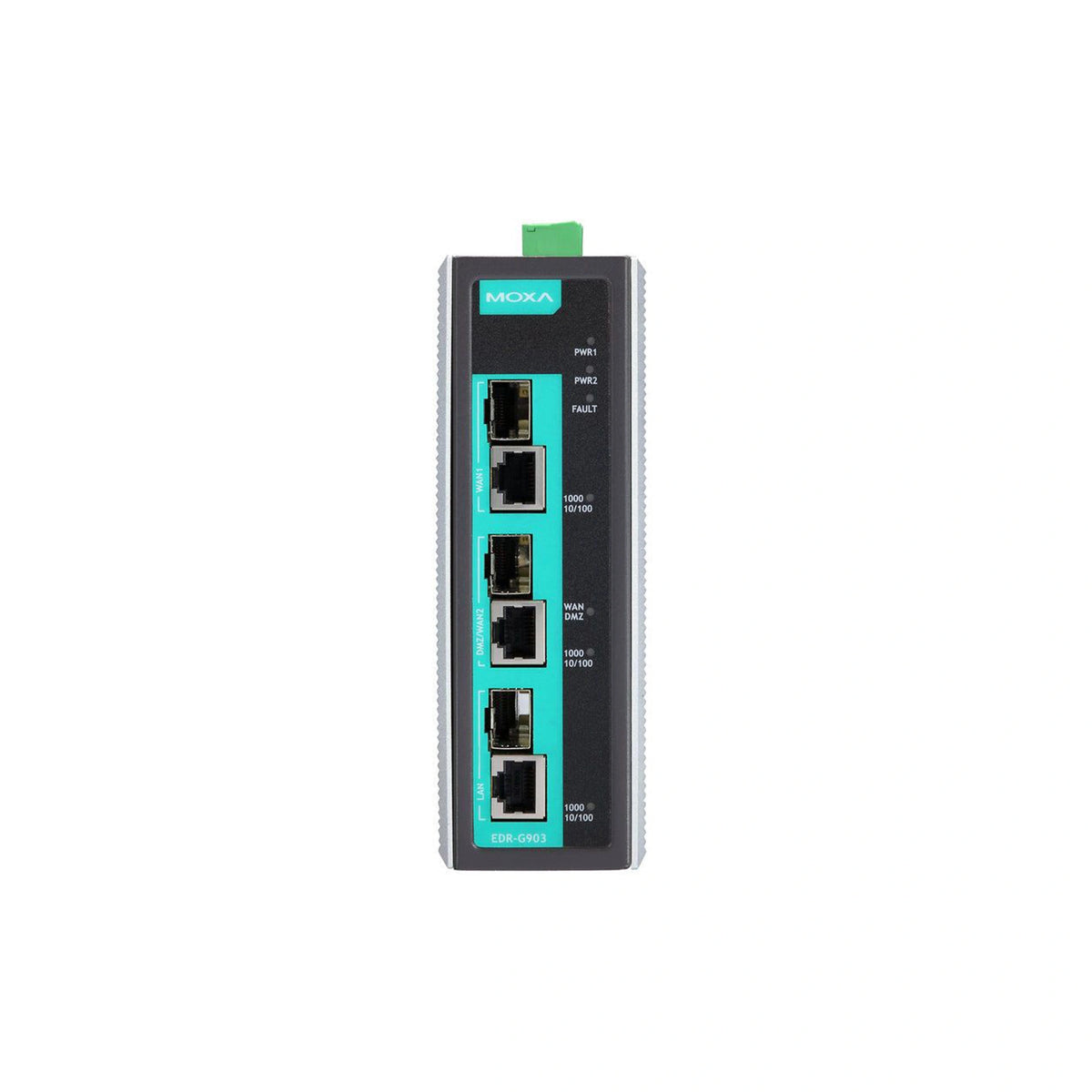

The EDR-G903 is a high-performance, industrial VPN server with a firewall/NAT all-in-one secure router. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an Electronic Security Perimeter for the protection of critical cyber assets such as pumping stations, DCS, PLC systems on oil rigs, and water treatment systems. The EDR-G903 Series includes the following cybersecurity features:

• Virtual Private Network (VPN): VPNs are designed to provide users with secure communication links when accessing a private network from the public Internet. They use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
• Firewall: Controls network traffic between different trust zones. Network Address Translation (NAT), which shields the internal LAN from unauthorized activity from outside hosts.

The EDR-G903’s Quick Automation Profile function supports the most common fieldbus protocols, including EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP, and PROFINET. Users can easily create a secure Ethernet Fieldbus network from a user-friendly web UI with a single click. In addition, Moxa’s PacketGuard technology (Deep Packet Inspection) helps to filter Modbus TCP commands at OSI layer 7. The wide-temperature range models that are available operate reliably in hazardous, -40 to 75°C environments.

You can also find the EDR-G903-T model in the EDR-G903 Series.


Ethernet Ports: 1 x WAN Ports, RJ45/Fiber Combo Port, 1 x DMZ Ports, RJ45/Fiber Combo Port, 1 x LAN Ports, RJ45/Fiber Combo Port
Serial Ports: 1 x RS-232 Console Port
Input/Output Channels: -
Supported Protocols: Back Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP, VRRP, NTP Server/Client, SNTP, OSPF, RIPV1/V2, Static Route, Modbus TCP, Modbus UDP
MTBF: 903,311 hrs
Input Voltage: -
Operating Voltage: -
Overload Current Protection: -
Reverse Polarity Protection: -
Power Connector: -
Housing: -
IP Rating: -
Dimensions: -
Installation: Rack mounting, Wall mounting (with optional kit)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMS, Freefall, FCC, Safety, Shock, Vibration, IEC 61850-3
