Features and Benefits

  • Secure remote access tunnel with VPN
  • Stateful firewall protects critical assets
  • Inspect industrial protocols with PacketGuard technology
  • Easy network setup with Network Address Translation (NAT)
  • RSTP/Turbo Ring redundant protocol enhances network redundancy
  • Security features based on IEC 62443/NERC CIP
  • Check firewall settings with intelligent Settings Check feature
View full details

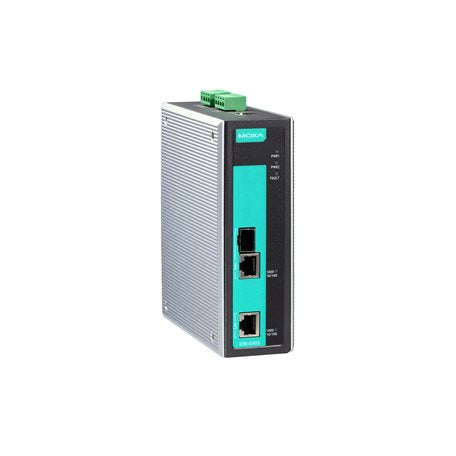

The EDR-G902 is a high-performance, industrial VPN server with a firewall/NAT all-in-one secure router. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an Electronic Security Perimeter for the protection of critical cyber assets including pumping stations, DCS, PLC systems on oil rigs, and water treatment systems.

The EDR-G902 Series includes the following cybersecurity features:

• Virtual Private Network (VPN): VPNs are designed to provide users with secure communication links when accessing a private network from the public Internet. They use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.

• Firewall: Controls network traffic between different trust zones. Network Address Translation (NAT), which shields the internal LAN from unauthorized activity from outside hosts. The EDR-G902’s Quick Automation Profile function supports the most common Fieldbus protocols, including EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP, and PROFINET. Users can easily create a secure Ethernet Fieldbus network from a user-friendly web UI with a single click. In addition, Moxa’s PacketGuard technology (Deep Packet Inspection) helps to filter Modbus TCP commands at OSI layer 7. The wide-temperature range models that are available operate reliably in hazardous, -40 to 75°C environments.

You can also find the EDR-G902-T model in the EDR-G902 Series.


Ethernet Ports: 1 x Combo Port (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
Serial Ports: 1 x RS-232 Console Port
Input/Output Channels: 1 x relay output with current carrying capacity of 1 A @ 24 VDC
LED Indicators: -
Supported Protocols: IPsec, L2TP (server), PPTP (client), OpenVPN, EtherCAT, EtherNet/IP, FOUNDATION, Fieldbus, Modbus TCP, PROFINET
MTBF: 981,233 hrs
Input Voltage: 12/24/48 VDC
Input Current: 0.45 A @ 24 VDC
Operating Voltage: -
Overload Current Protection: Yes
Reverse Polarity Protection: Yes
Power Connector: Removable terminal block
Housing: Metal
IP Rating: IP30
Dimensions: 51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMS, Freefall, FCC, Safety, Shock, Vibration
