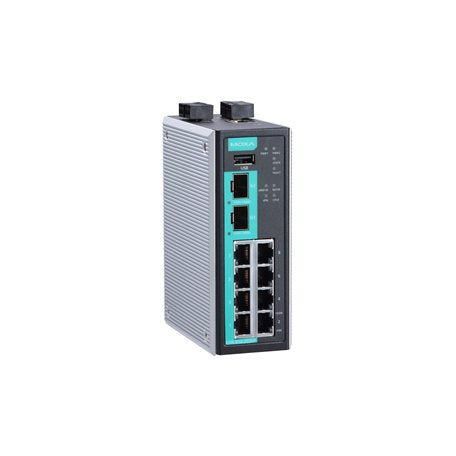

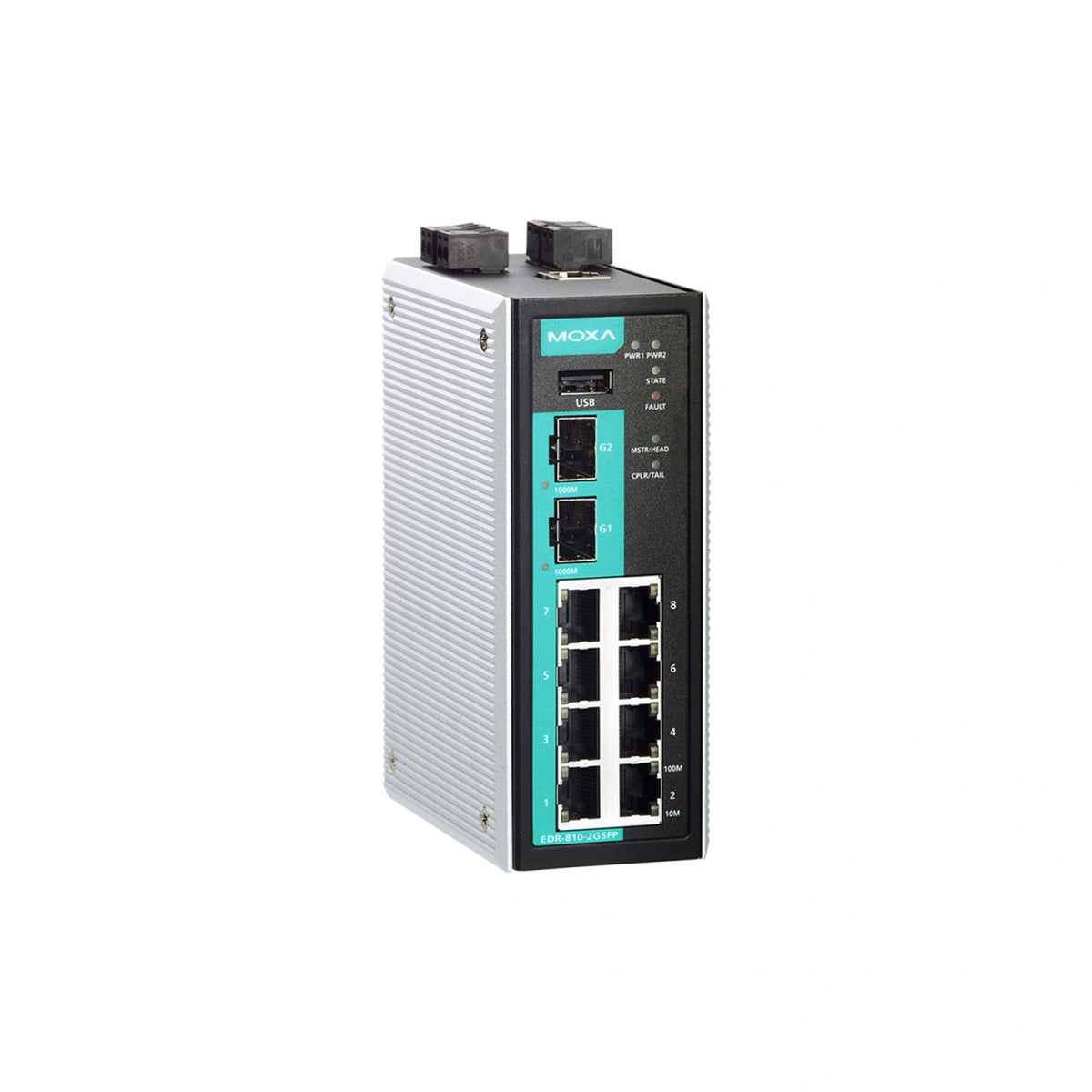

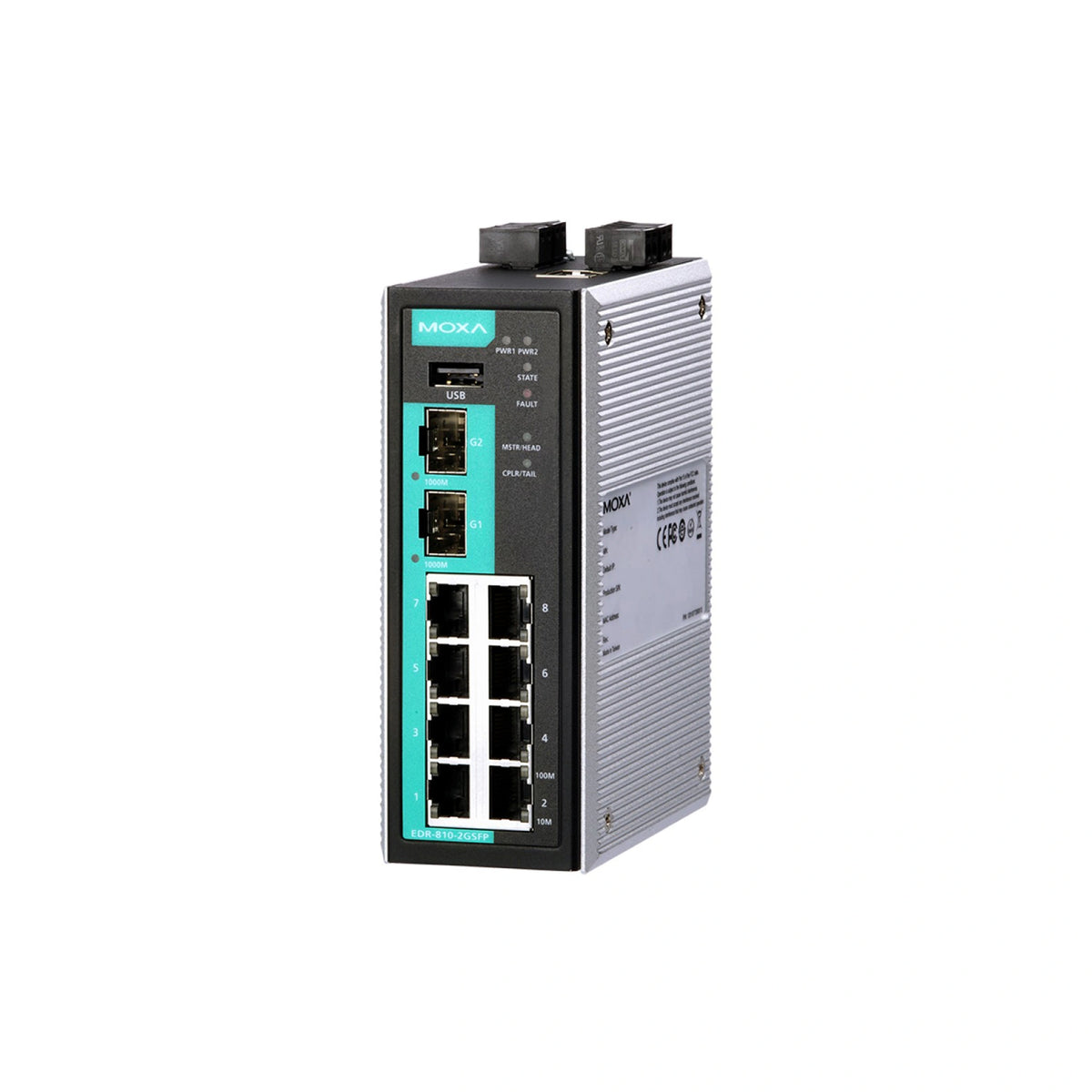

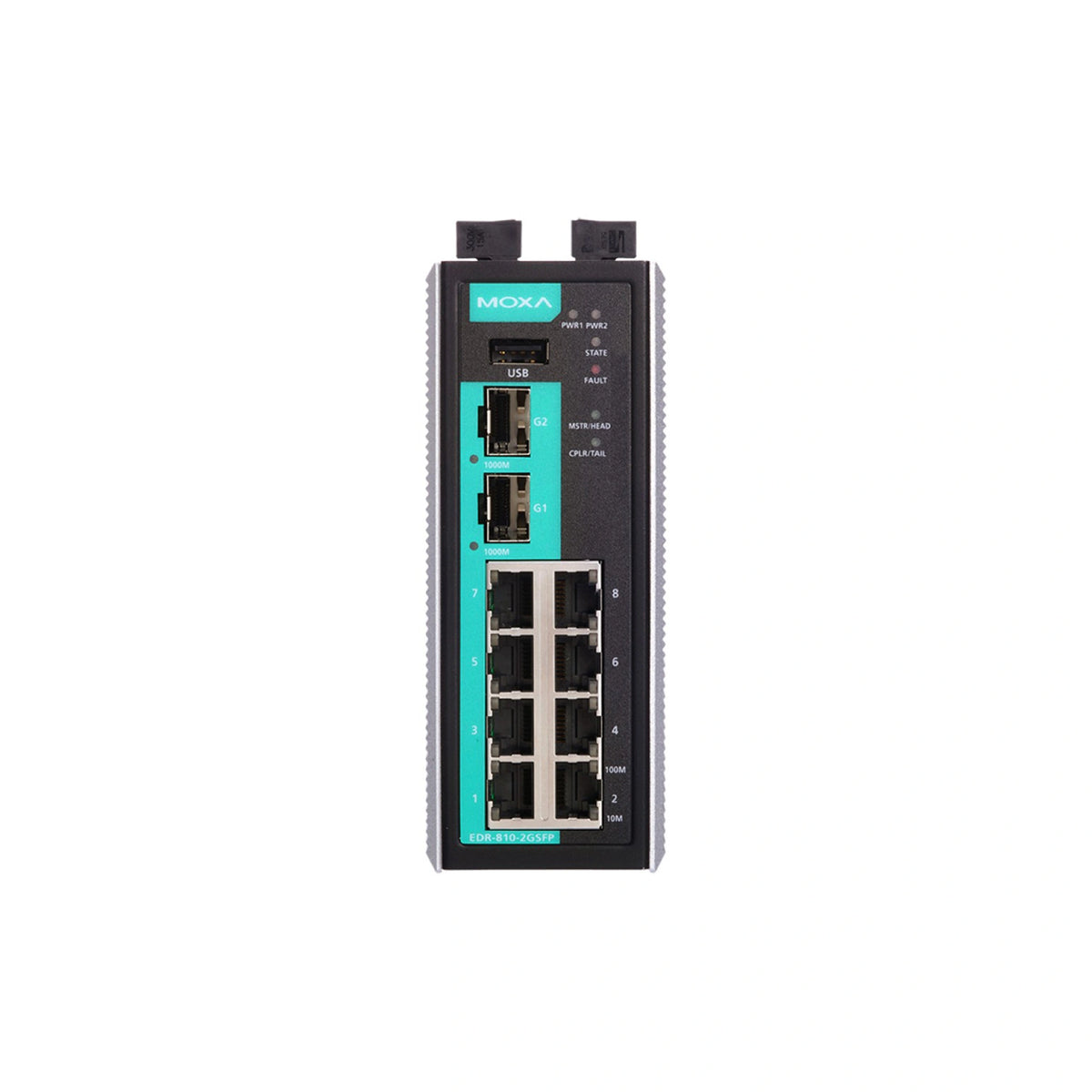

MOXA EDR-810-VPN-2GSFP-T Multiport Industrial Secure Router

MOXA EDR-810-VPN-2GSFP-T Multiport Industrial Secure Router
$2,394.00 CAD
$2,394.00 CAD
Special Offer Out of Stock
We have 3 in stock

Features and Benefits

  • 8 x 10/100 T(x) ports, 2 x 100/1000 SFP slots
  • Secure remote access tunnel with VPN
  • Stateful firewall protects critical assets
  • Inspect industrial protocols with Packet Guard technology
  • Easy network setup with Network Address Translation (NAT)
  • RSTP/Turbo Ring redundant protocol enhances network redundancy
  • Security features based on IEC 62443/NERC CIP
  • Check firewall settings with intelligent Setting Check feature
View full details

Description

Data sheet

Specification

10/100BaseT(X) Ports: 8
100/1000BaseSFP Slots: 2
Alarm Contact Channels: Resistive load: 1A @ 24VDC
Digital Input Channels: +13 to +30V for state 1, -30 to +3 V for state 0, Max. input current: 8mA
Routing Redundancy: VRRP
Time Management: NTP Server/Client, SNTP
Routing Throughput: 10,000 packets per second (max. 100 Mbps)
Broadcast Forwarding: IP directed broadcast, broadcast forwarding
Multicast Routing: DVMRP, PIM-SM, PIM-SSM
Management: Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP
MTBF: 981,954 hrs
Protocols: EDR-810-VPN-2GSFP Series: IPsec, L2TP (server), PPTP (client)
Redundancy Protocols: RSTP, STP, Turbo Ring v2
Security and Encryption: All models: HTTPS/SSL, SSH, L2TP (server), RADIUS EDR-810-VPN-2GSFP Series: HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS, L2TP (server), RADIUS
Authentication: EDR-810-VPN-2GSFP Series: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate
Connection: Removable terminal block
Input Voltage: 12/24/48 VDC, 0.32A @ 24VDC
Reverse Polarity Protection: Supported
Buttons: Reset button
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Housing: Metal
Weight: 830 g (2.10lb)
Operating Temperature: -40 to 75°C (-40 to 175°F)
Storage Humidity: 5 to 95% (non-condensing)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Standards and Certifications: IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), Static Port Trunk, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
