Moxa

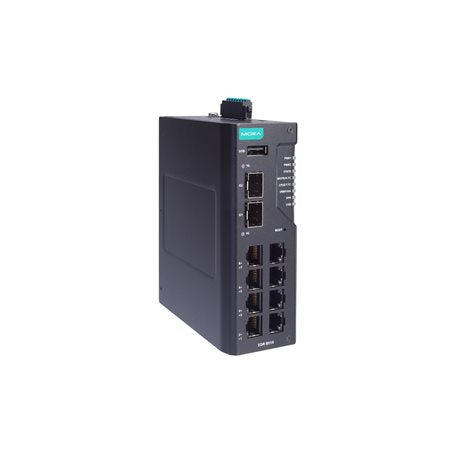

MOXA EDR-8010-VPN-2GSFP-CT-T Industrial Secure Router

MOXA EDR-8010-VPN-2GSFP-CT-T Industrial Secure Router

Regular price $2,312.00 CAD
Regular price Sale price $2,312.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 1000BaseSFP Slots
  • 12 to 48 VDC Redundant dual power inputs
  • Metal body design
  • Secure remote access tunnel with VPN
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature
View full details

Description

The EDR-8010 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN and managed Layer 2 switch functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation.

Specification

3G modem : Interface
10/100BaseT(X) Ports 8
100/1000BaseSFP Slots 2
Alarm Contact Channels Resistive load: 1 A @ 24 VDC
Digital Input Channels +13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA

3G modem : Software Specifications
Routing Redundancy RSTP, STP, Turbo Ring v2
Time Management NTP Server/Client, SNTP
Routing Throughput: Max. 50K packets per second / 500 Mbps (based on RFC 2544)

3G modem : General
Broadcast Forwarding IP directed broadcast, broadcast forwarding
Multicast Routing Static Route
Management Back Pressure Flow Control, DDNS, DHCP, Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP, HTTPS, SSH
MTBF 1,347,225 hrs

3G modem : Standards and protocols
Protocols IPsec L2TP (server) PPTP (client)
Redundancy Protocols RSTP, STP, Turbo Ring v2

3G modem : Security
Security and Encryption Security: Secure Boot, IPsec, L2TP (server), RADIUS, Trust access control; Encryption: DES, 3DES, AES-128, AES-192, AES-256, AES-256-GCM
Authentication MD5 and SHA (SHA-256) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate

3G modem : Power Requirements
Connection Removable terminal block
Input Voltage 12/24/48 VDC, redundant dual inputs (DNV-certified for 24 VDC)
Reverse Polarity Protection Supported

3G modem : Buttons
Buttons Reset button

3G modem : Physical Characteristics
Dimensions 45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)
Housing Metal
Weight 520 g (1.15 lb)
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)

3G modem : Standards and Certifications
Safety, EMC, EMI, EMS, EN 50121-4, NEMA TS2, IEC 60945, DNV, Shock, Freefall, Vibration, IEC 61850-3 Edition 2.0, IEEE 1613, Hazardous Locations: (ATEX, Class I Division 2, IECEx)
