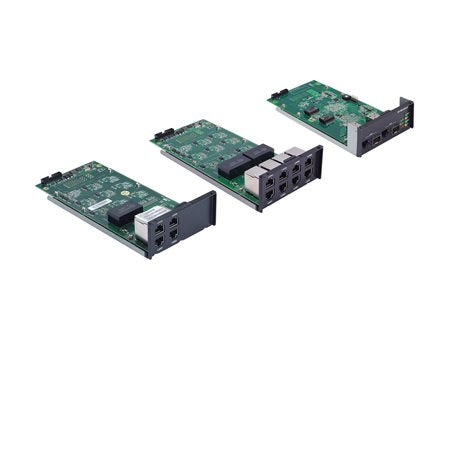

Moxa DE-SP08-I-TB Serial Expansion Module

Moxa DE-SP08-I-TB Serial Expansion Module

$769.00 CAD
$769.00 CAD
Sale Sold out

Features and Benefits

  • 8 x Serial Ports with terminal block connections
  • Supports RS-232/422/485 communication for versatile applications
  • High-speed data transmission for reliable performance
  • Compact and rugged design for industrial environments
  • Wide operating temperature range: -40 to 75°C
  • DIN-rail mounting for easy integration into industrial systems
  • Ideal for large-scale serial communication networks
View full details

Description

Moxa DE-SP08-I-TB Introduction
The DA-720-UART Series Expansion Modules include an 8-port RS-232/422/485 module with terminal block connectors. The modules are designed with 2 kV digital isolation, making them fully suitable for the demands of industrial applications that use serial communication.

Data sheet

Specification

Modules : Interface
Ports: 8-port RS-232/422/485 software-selectable serial modules with isolation protection
Modules : Physical Characteristics
Dimensions: 213.31 x 95 mm (8.398 x 3.74 in)
Weight: 0.395 kg
Operating Temperature: -25 to 55°C (-13 to 131°F)
Standards and Certifications
RoHS, CRoHS, WEEE
