MOXA DA-820E-C7-H-T Wide Temperature Computer

MOXA DA-820E-C7-H-T Wide Temperature Computer

$9,904.00 CAD
$9,904.00 CAD
Sale Sold out

Features and Benefits

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
  • EN 50121-4 compliant for railway wayside applications
  • 13th Gen Intel® Core™ processor
  • 4 SSD slots with Intel® RST RAID 0/1 support for SSD slot 1 and 2
  • Up to 64 GB RAM (two built-in SODIMM DDR4 memory slots)
  • PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
  • Security options such as TPM 2.0, UEFI Secure Boot and physical security
  • 1 PCIe x8 (4-lane) and 3 PCIe x1 for expansion modules
  • Redundant power supplies (100 to 240 VAC/VDC and 48 VDC) with hot-swappable power module design
View full details

Description

The DA-820E-C7-H-T Introduction

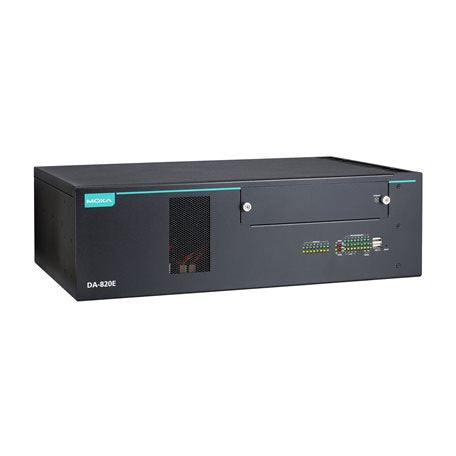

The DA-820E Series is a high-performance 3U rackmount industrial computer powered by 13th Gen Intel® Core™ i3/i5/i7 processors, offering exceptional computing capabilities. It features a versatile I/O design, including 3 display ports (2 HDMI and 1 VGA), 6 USB ports, 4 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports, 2 DO ports, 4 standard PCIe expansion slots, and 1 proprietary expansion slot. Additionally, it is equipped with 4 hot-swappable 2.5” SSD slots, supporting Intel® RST RAID 0/1 functionality on SSD slots 1 and 2 for enhanced storage performance and reliability.

Engineered specifically for substation applications, the DA-820E complies with IEC 61850-3, IEEE 1613, and IEC 60255 standards, guaranteeing ruggedness, reliability, and seamless integration with Intelligent Electronic Devices (IEDs) in demanding substation automation systems. Leveraging its 13th Gen Intel® processor, the DA-820E delivers the high computing power required for modern, complex software applications, such as virtualization, in addition to traditional OT SCADA functionalities."

Data sheet

Specification

CPU: Intel® Core™ i7-1370PE
System Memory Slot: SODIMM DDR4 slots x 2
DRAM: 64 GB max. (SODIMM x 2, each supporting 3200 MHz and 32 GB max. per module)
Graphics Controller: Intel® Core™ i7-1370PE: Intel® Iris® Xe Graphics eligible
Storage Slot: 2.5-inch HDD/SSD slots x 4, M.2 M-key 2280 slot x 1
Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, Ubuntu 22.04.3 LTS, Debian 12, RHEL 9.4
Computer Interface: Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4, Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector), Digital Input: DIs x 6, Digital Output: DOs x 2, USB 2.0: USB 2.0 hosts x 3, type-A connectors (2 ports on the front panel, 1 port inside for USB dongle-based security), USB 3.0: USB 3.0 hosts x 3, type-A connectors (3 ports on the rear panel)
Expansion Slots: PCIe x8 (4-lane) slot x 1, PCIe x1 slots x 3, Proprietary slot x 1
Video Output: HDMI x 2 (type A, up to 3840 x 2160 resolution at 60 Hz), VGA x 1 (15-pin D-sub connector, up to 1920 x 1200 resolution at 60 Hz)
TPM: TPM v2.0
Secure Boot: UEFI
LED Indicators: System: Power x 1, Storage x 1, Power failure detection x 2, Programmable x 8; Serial: 2 per port (Tx, Rx); LAN: 8 per port (10/100/1000 Mbps)
Serial Interface: Baudrate: 300 bps to 115.2 kbps, Connector: DB9 male, Isolation: 2 kV, Serial Standards: RS-232/422/485
Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs: Digital Input Channels: DIs x 6, Connector: Screw-fastened Euroblock terminal, I/O Mode: DI, Isolation: 3k VDC, Sensor Type: Dry contact, Wet contact (NPN), Dry Contact: Logic 0: Close to GND, Logic 1: Open, Wet Contact (COM to DI): Logic 0: 10 to 30 VDC, Logic 1: 0 to 3 VDC
Digital Outputs: Digital Output Channels: DOs x 2, Connector: Screw-fastened Euroblock terminal, Current Rating: 200 mA per channel, I/O Type: Sink, Voltage: 0 to 30 VDC, Isolation: 3k VDC
Power Parameters: Input Current: 100 to 240 VAC, 50/60 Hz, 1.75 to 0.66 A (max), 100 to 240 VDC, 1.65 to 0.66 A (max), 48 VDC, 3.12 A; Input Voltage: 100 to 240 VAC, 100 to 240 VDC, 48 VDC; Power Consumption: DA-PWR-150-HV: 140 W (max.), DA-PWR-120-LV: 130 W (max.); Power Button: Reset button (front panel), ON/OFF (rear panel)
Physical Characteristics: Housing: Metal, Dimensions (without ears): 440 x 301 x 132.55 mm (17.32 x 11.85 x 5.22 in), Weight: 11,860 g (26.15 lb), Installation: 19-inch rack mounting
Environmental Limits: Operating Temperature: -40 to 70°C (-40 to 158°F), Storage Temperature (package included): -40 to 85°C (-40 to 185°F), Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC: EN 61000-6-2/-6-4, EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD (Contact: 8 kV, Air: 15 kV), IEC 61000-4-3 RS (80 MHz to 1 GHz: 10 V/m), IEC 61000-4-4 EFT (Power: 4 kV, Signal: 4 kV), IEC 61000-4-5 Surge (Power: 4 kV, Signal: 4 kV), IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 20 A/m, IEC 61000-4-11
Power Substation: IEC 61850-3, IEEE 1613
Protection Relay: IEC 60255
Safety: IEC 62368-1, UL 62368-1
Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
Declaration: Green Product: RoHS, CRoHS, WEEE
MTBF: Time: 293,786 hrs, Standards: Telcordia Standard SR-332
Warranty: Warranty Period: 3 years
