Moxa

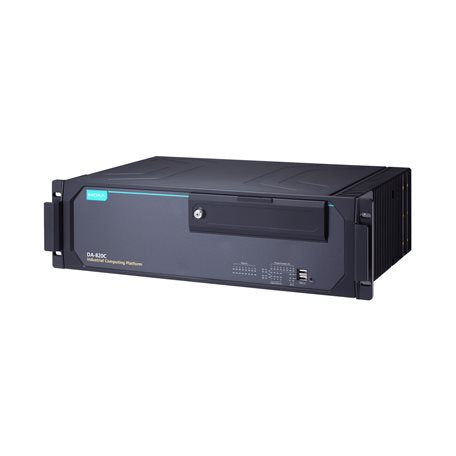

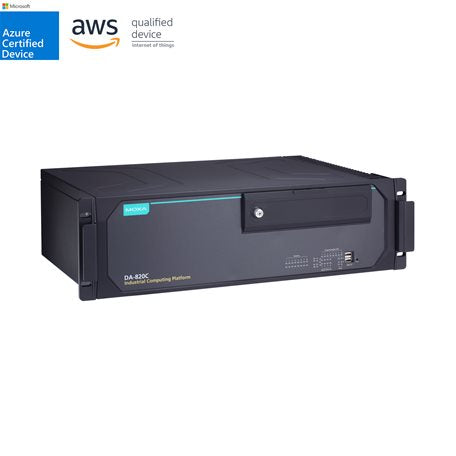

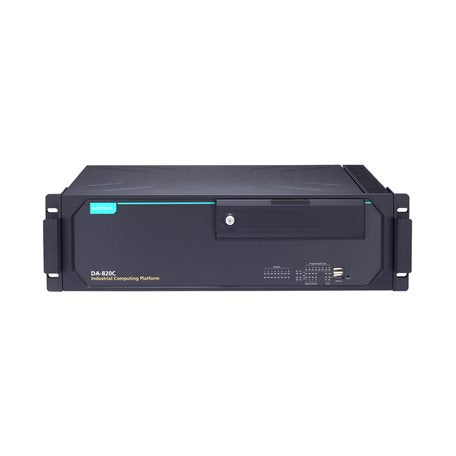

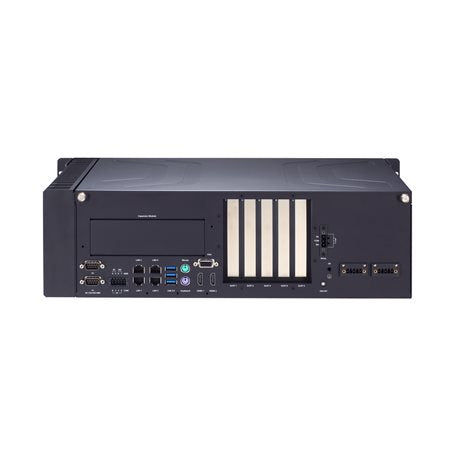

MOXA DA-820C-KL3-H-T Wide Temperature Computer

MOXA DA-820C-KL3-H-T Wide Temperature Computer
$6,377.00 CAD
$6,377.00 CAD
Special Offer Out of Stock

Features and Benefits

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
  • EN 50121-4 compliant for railway wayside applications
  • 7th Generation Intel® Xeon® and Core™ Processor
  • 2 built-in SODIMM ECC DDR4 memory slots; up to 64 GB total capacity
  • 4 hot-swappable SSD slots; support Intel® RST RAID 0/1/5/10
  • Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)
  • 1 PCIe x16, 1 PCIe x4, 2 PCIe x1, and 1 PCI slots for expansion modules
  • Redundant power supply (100 to 240 VAC/VDC)
View full details

Description

Data sheet

Specification

Industrial Computer: Computer
CPU: Intel® Core™ i3-7102E Processor (3M Cache, 2.10 GHz)
Supported OS: Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Linux Debian 9
System Chipset: -
Graphics Controller: Intel® Xeon® E3-1505MV6: Intel® HD Graphics P630, Intel® Xeon® E3-1505LV6: Intel® HD Graphics P630, Intel® Core™ i7-7820EQ: Intel® HD Graphics 630, Intel® Core™ i5-7442EQ: Intel® HD Graphics 630
USB: USB 2.0 hosts x 3, type-A connectors (2 ports on the front panel, 1 port inside the computer), USB 3.0 hosts x 3, type-A connectors (3 ports on the rear panel)
Industrial Computer: Interface
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Standards: RS-232/422/485
ESD Protection: 8 kV (level 4)
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
Industrial Computer: Serial Communication Parameters
Baudrate: 300 bps to 115.2 kbps
Industrial Computer: Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Data+, Data-, GND
RS-485-2w: Tx+, Tx-, Rx+, Rx-, GND
Industrial Computer: LED Indicators
System: Power x 1, Storage x 1, Programmable x 8
LAN: 8 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)
Industrial Computer: Power Requirements
Power Consumption: 100 W (max.) single power
Industrial Computer: General
MTBF: 325,730 hrs
Expansion Slot: PCIe x16 slot x 1, PCIe x4 slots x 1, PCIe x1 slots x 1
Connector: DB9 male
Industrial Computer: Physical Characteristics
Dimensions: 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in)
Housing: Metal
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative Humidity: 5 to 95% (non-condensing)
Shock Protection: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
EMC: EN 61000-6-2/-6-4, EN 55032/35
Weight: 14,000 g (31.11 lb)
Installation:
