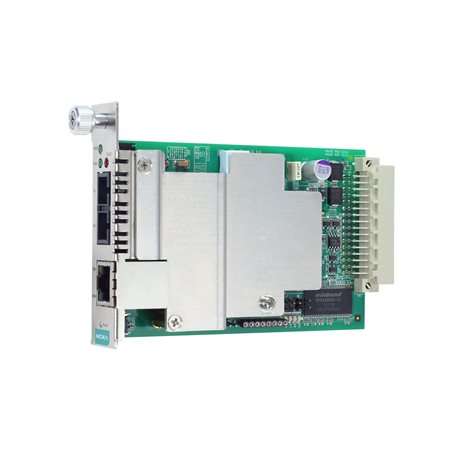

MOXA CSM-400-1218 SLIDE-IN ETHERNET-TO-FIBER MEDIA CONVERTERS

MOXA CSM-400-1218 SLIDE-IN ETHERNET-TO-FIBER MEDIA CONVERTERS

$472.00 CAD
$472.00 CAD
Sale Sold out

Features and Benefits

  • 4 x 10/100BaseT(X) Ethernet ports
  • 1 x 100BaseFX (Multi-mode, SC/ST connector) port
  • DIN-rail or panel mounting options
  • -40 to 75°C operating temperature for harsh environments
  • Plug-and-play design for easy installation
  • Robust metal housing for industrial applications
View full details

Description

MOXA CSM-200 Series Introduction
The CSM-200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The modules provide media conversion from 10/ 100BaseT(X) to 100BaseFX (SC/ST connectors) and can be installed in any NRack System™ chassis.

You can also find the CSM-200-1214 and CSM-200-1218 models in the CSM-200 Series.

Data sheet

Specification

ETH to fiber: Interface
10/100Mb RJ45 (Megabit) Ports: Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: Yes : 1 ST Port
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
M12 port: No
Alert Output: No
ETH to fiber: Standards and protocols
Protocols and work standards: IEEE 802.3u for 100BaseT(X) and 100BaseFX
ETH to fiber: General
Maximum cable length for data transfer: 5Km with multi mode fiber optic cable
MTBF: 1,454,560 hrs
ETH to fiber: Power Requirements
Power consumed: 220 mA @ 12 VDC
Type of power input: -
Protection against overflow: No
ETH to fiber: LED Indicators
LNK/ACT: No
ETH to fiber: Physical Characteristics
Standards and Certifications: EMC, EMI, EMS, Safety, Vibration
Housing: -
Dimensions: 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight: 0.115kg
Operating Temperature: -20 to 55°C (-4 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
Installation: -
